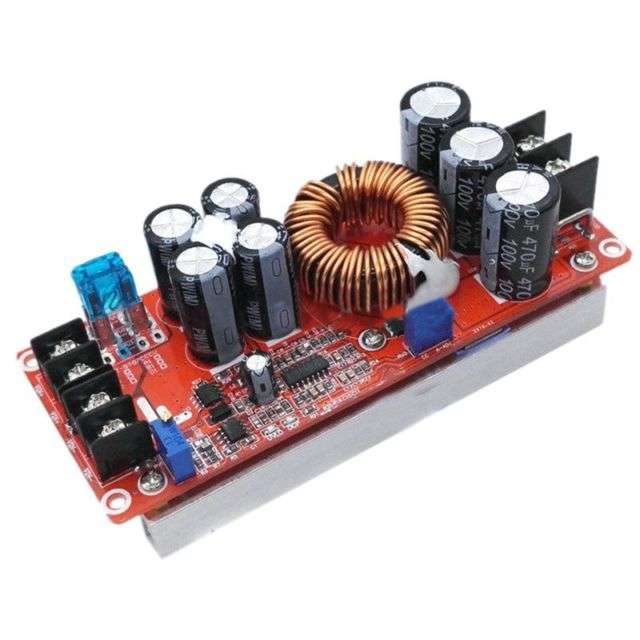

20A DC Step-up Power Supply Module.

A boost converter (step-up converter) is a DC-to-DC power converter that steps up voltage (while stepping down current) from its input (supply) to its output (load).

This is a big board, that can handle up to 20A current. But it can only do 20A for short peaks and intervals, 12A constant current will work great without fear of overheating the power chips. This unit is great for when you need higher voltage on your output than you can supply via the input.

Please note that the trim pot that is used to adjust the output of the module needs to be turned quite a few times before you can see a change in the output.

20A DC Step-up Power Supply Module Specification:

• Input voltage: 10-60VDC.
• Input Current: 20A.
• Output voltage: 12-80VDC continuously adjustable.
• Output Current: 20A MAX. If over 10A add a ventilation fan for heat dissipation.
• Constant Current Range: 0.5-20A.
• Switching frequency: 150KHz.
• Conversion efficiency: 92%~ 97%.
• Over-current protection.
• Input under voltage circuit protection with 150A MOSFET.
• If the constant current mode is used to set the voltage, the constant voltage must be higher than the input voltage. Do not use the method of short circuit output to adjust the output current, the module design of the boost converter cannot be adjusted in the short circuit method.
• Module dimensions: 130x52x48mm (L x W x H).
