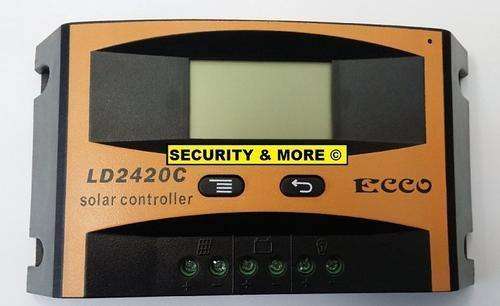

20A Digital Solar Regulator 12V/24V Rating | Solar Charge Controller

20A Digital Solar Regulator 12V/24V Rating | Solar Charge Controller

New 27 available
R498.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
782813
Bob Shop ID
593511021




30A Solar Regulator:


Specifications:

  • System Voltage : 12V/24V
  • Max. Input Voltage of Solar Panel : 55V
  • Self-consumption : 12mA
  • Max. Charge Current : 20A
  • Max. Discharge Current : 10A 20A
  • LVD : 11.0VADJ 9V .... 12V; x2 24V
  • LVR : 12.6VADJ 11V .... 13.5V; x2 24V
  • Float Voltage : 13.8VADJ 13V .... 15V ; x2 24V
  • Boost Charging : 14.4V; x2 24V Battery Voltage less than 12V start boost charging 2 hours
  • Batter Over Voltage Protection : 16.5V ; x2 24V
  • Reverse Connection Protection : Yes
  • Load Over Current Protection : Yes, each two minutes restart once
  • Charge Type : PWM
  • Temperature Compensation : -24Mv/ °C for 12V system ; x2 24V
  • Working Temperature : -20°C-+55°C
  • Terminal Scale : 28-10 AWG
  • Waterproof grade IP32
  • Size : 168mm x 92mm x 41.5mm
  • Net Weight : 320g
