20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S...
20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S... 20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S...
20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S...
+3

20A Forward And Reverse DC Speed Regulator 9-60V Pulse Wide Motor Driver PWM Control Board(With S...

New 100 available
R286.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0603861001A
Bob Shop ID
621599165

1. Reverse connection protection, positive and negative poles connected to the wrong not work, can well protect the governor
2. Fixed mounting lugs, easy installation
3. Working voltage: DC 9V-60V
4. Output voltage: linear under load
5. Continuous current: 18A
6. Control current: 0-20A
7. Speed regulation range: 0 percent - 100 percent

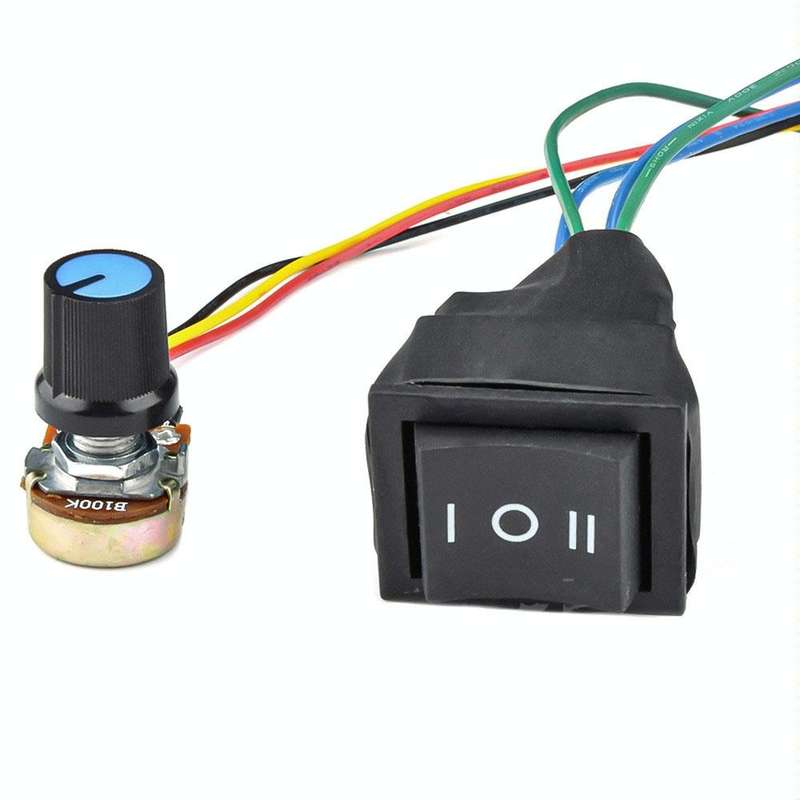

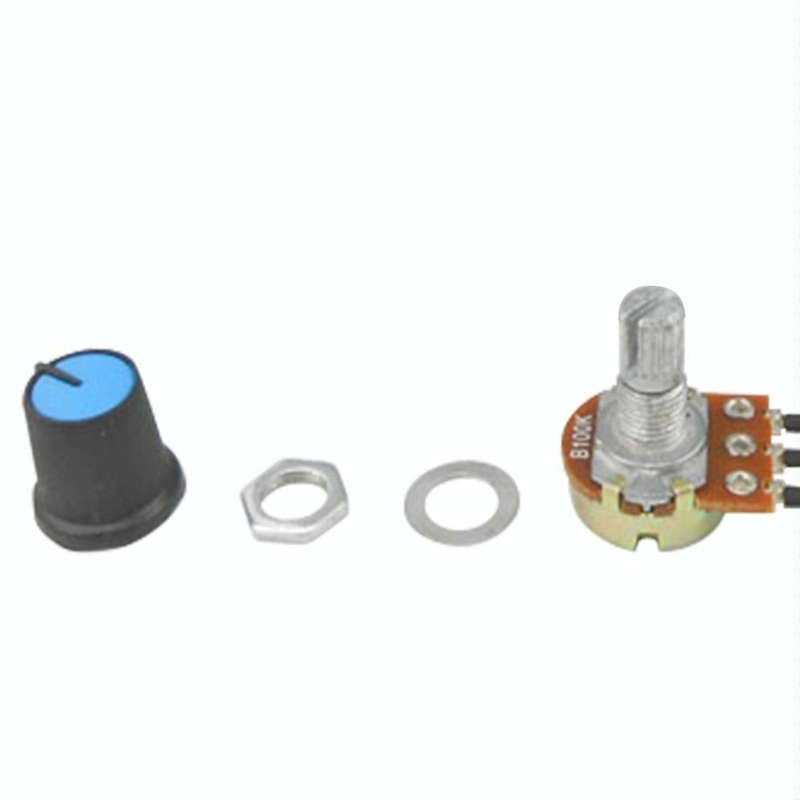

8. Speed regulation mode: potentiometer
9. Forward and reverse: support
10. Speed regulation principle: flow regulation

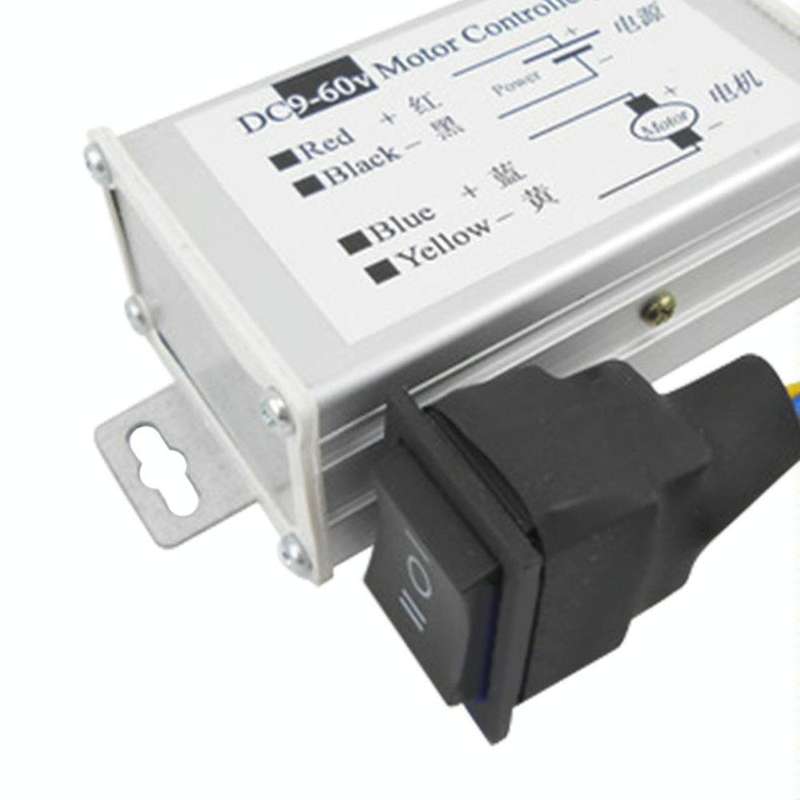

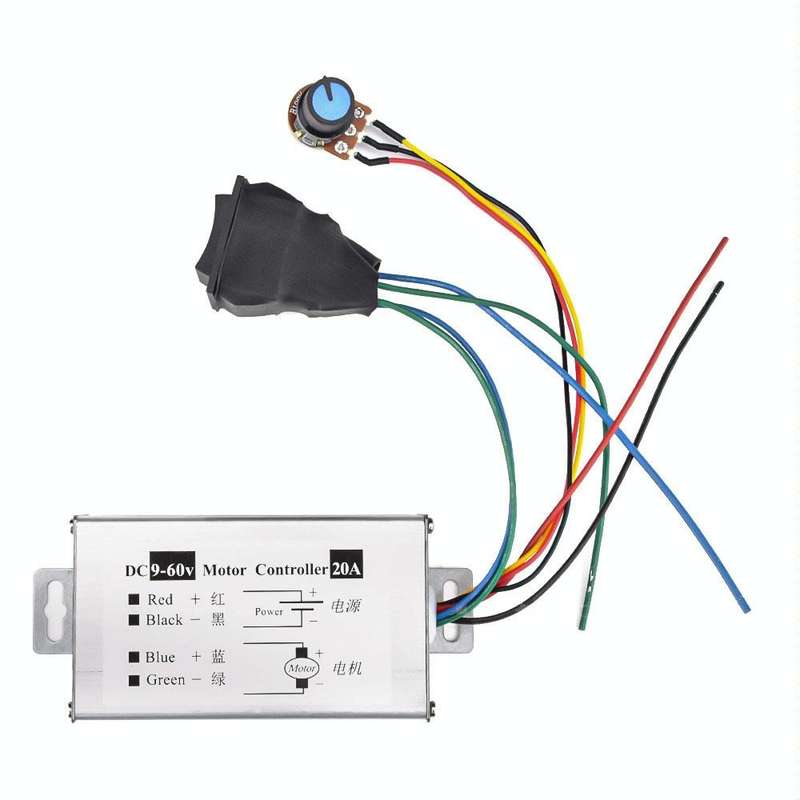

11. Wiring mode:
- Red wire connection: power supply positive +
- Black wire connection: power negative -
- Blue wire connection: motor positive +
- Green wire connection: motor negative -
12. Potentiometer opening: 7mm
13. Mounting hole center distance: approx. 10.4cm

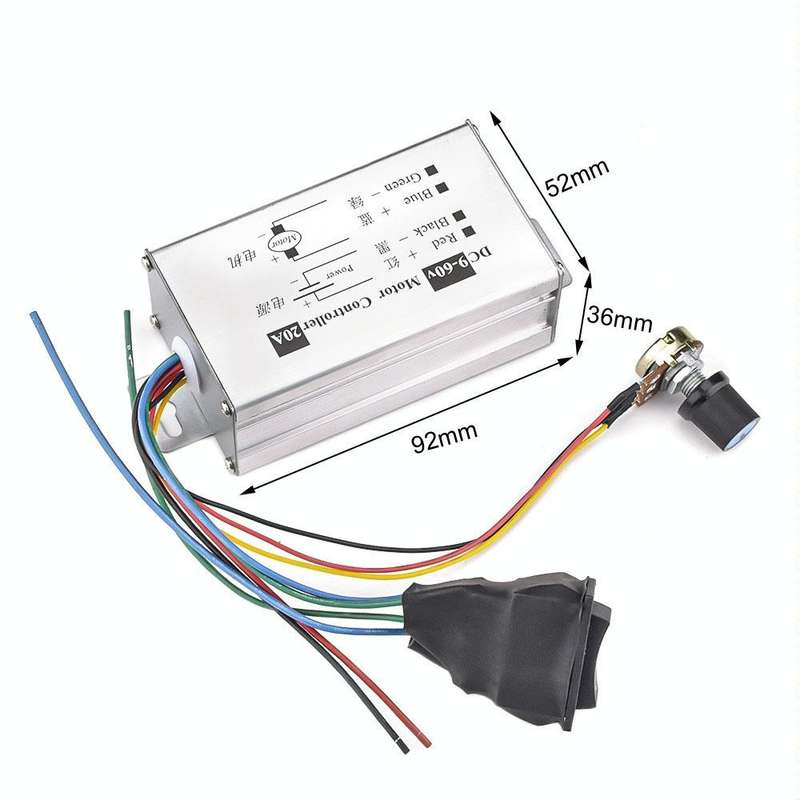

14. Dimensions: approx. 9.2 x 5.2 x 3.6cm
15. Weight: approx. 155g
16. Note: do not switch to the other direction while running at high speed, not for use on electric vehicles, not for use on geared motors
