Name: 20A MPPT+ PWM charging mode Solar Charge Controller with LCD Display
SKU: MPPT20A
Price: 626.23 ZAR
Availability: SoldOut

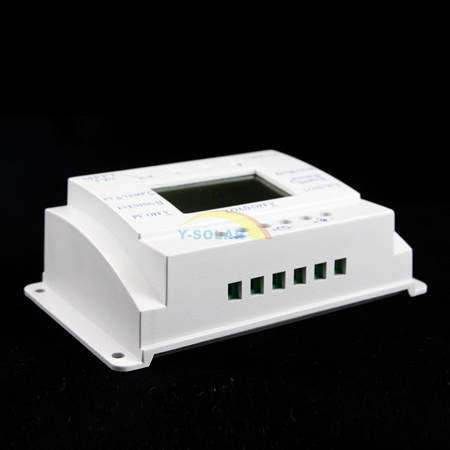

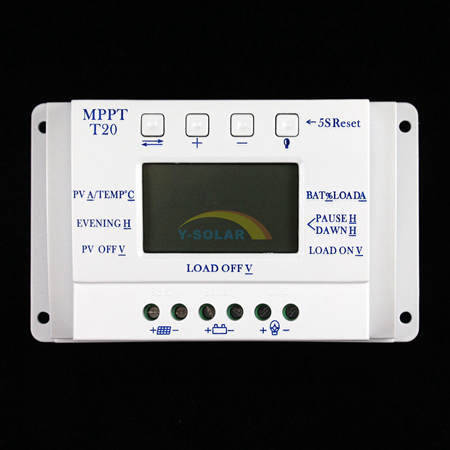

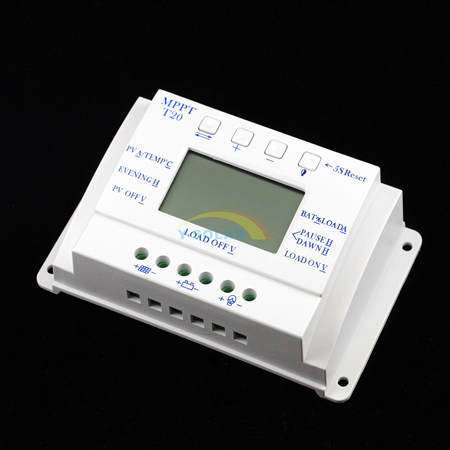

20A MPPT+ PWM charging mode Solar Charge Controller with LCD Display

New

3 were available

R626.23

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

attoplex8

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

MPPT20A

Bob Shop ID

238556839

Product summary

This is a 20A solar charge controller compatible with MPPT and PWM. It not only has efficient MPPT controller charging features to automatically track the maximum power point but also has a 10%-30% higher efficiency than most common controllers. The standby energy saving feature has a standby power consumption of only 10mA-15mA. The LCD and function buttons are added features to allow easy access to voltage and current monitoring, and allow some parameters to be changed. See complete list of parameters that can be changed below.

Product introduction

LCD screen display
Battery reverse discharge protection
Easy operation interface
Battery reverse polarity protection
MPPT+ PWM charging mode
Battery under voltage protection
Parameter user can reset Overload
Short-circuit protection
Automatic temperature compensation function
A key to restore the factory settings
A key to open and close the load

Dual Timer function

Data Sheet

Parameters / Model:	T20
Maximum power current:	20A
Installation Line mm2:	8mm2
Installation Line(AWG):	8(AWG)
Weight:	300g
Dimensions:	143×89×46mm
System load loss:	13mA
Loop Back:	100mV
