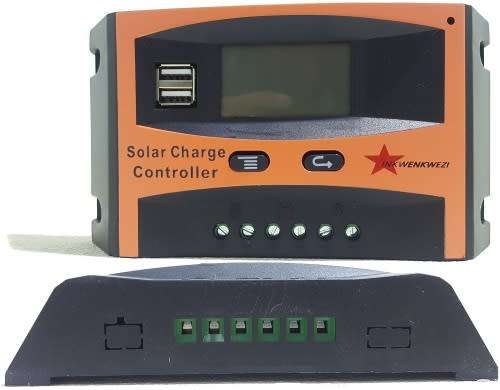

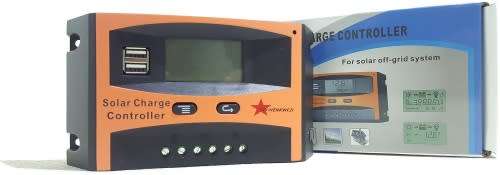

20A Solar Charger Controller - Solar Charge Controller 20A
New
Indicative market price: R599.99
R260.00
57% OFF
Closed
26 Sep 20 14:01
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Designed for off-grid solar systems. The device is used for the charging and discharging of solar batteries. Focusing on battery protection, resulting in longer lasting batteries and improved system performance.
Features:
- Automatic identification between 12V and 24V Systems
- LCD display
- Complete data setup and modification
- High efficiency, intelligent PWM 3-Stage charging
- Over voltage, overload, short circuit, over charge and over discharge protection
- Reverse connection protection
Specifications:
| Model | LD2420C |
| Rated Voltage | DC 12V - 24V |
| Rated Current | 20A |
| Max. Input Solar Panel Voltage | 55V |
| Self-Consumption | <12mA |
| Max. Charging Current | 20A |
| Max. Discharge Current | 20A |
| LVD | 11.0V Adjustable 9V-12V; *2 24V |
| LVR | 12.6V Adjustable 11V-13.5V; *2 24V |
| Float Voltage | 13.8V Adjustable 13V-15V; *2 24V |
| Boost Charge | 14.4V; *2 24V. Battery Voltage less than 12V, boost charge for 2hrs |
| Over Voltage Protection | 16.5V; *2 24V |
| Temperature Compensation | -24mV/°C for 12V system; *2 24V |
| Working Temperature | -20°C - 55°C |
| Terminal Scale | 28-10 AWG |
| Waterproofing | IP32 |
| Dimensions(LxWxH) | 16.8 x 4.1 x 9.2cm |
In Box:
- 1 x Solar Charge Controller
- 1 x User's Guide
