The tip is an important part of the dispenser selection process.
It is the final point of exit and plays an important role in controlling the deposit.
Selection should be carefully considered in relation to material and type of deposit required.
We guarantee that each tip is high quality and accurate.
The above needle for industrial use only.
Non-sterile and it is not for medical use.

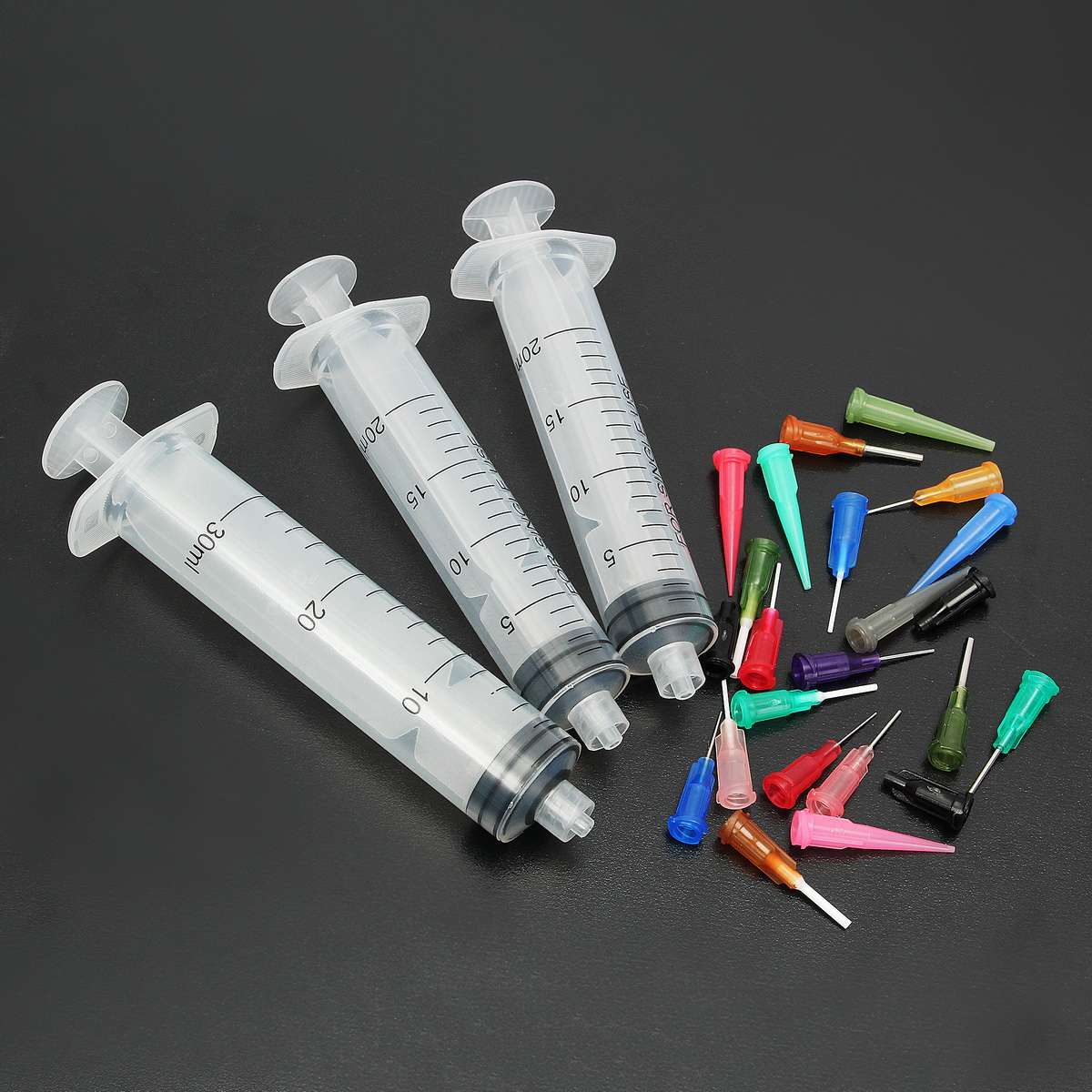

Blunt End Tip 14GA-27GA
Part No Description ID(mm) OD(mm) Color Length(inch) Qty
BL14050 14GA Blunt End Tip 1.55 2.1 Olive 0.5 1pc
BL15050 15GA Blunt End Tip 1.36 1.8 Amber 0.5 1pc
BL18050 18GA Blunt End Tip 0.84 1.27 Green 0.5 1pc
BL20050 20GA Blunt End Tip 0.6 0.92 Pink 0.5 1pc
BL21050 21GA Blunt End Tip 0.51 0.82 Purple 0.5 1pc
BL22050 22GA Blunt End Tip 0.41 0.72 Blue 0.5 1pc
BL23050 23GA Blunt End Tip 0.34 0.64 Orange 0.5 1pc
BL25050 25GA Blunt End Tip 0.26 0.52 Red 0.5 1pc
BL27050 27GA Blunt End Tip 0.21 0.42 Clear 0.5 1pc
Tapered tip 14GA-25GA
Part No Description ID(mm) Color Length(inch) Qty
TA14 14GA Tapered Tip 1.55 Olive 1.25 1pc
TA16 16GA Tapered Tip 1.2 Grey 1.25 1pc
TA18 18GA Tapered Tip 0.84 Green 1.25 1pc
TA20 20GA Tapered Tip 0.58 Pink 1.25 1pc
TA22 22GA Tapered Tip 0.41 Blue 1.25 1pc
TA25 25GA Tapered Tip 0.26 Red 1.25 1pc
Flexible Tip 14GA-25GA
Part No Description ID(mm) OD(mm) Color Length(inch) Qty
