20cm 12.7mm 3 : 1 Ratio Dual Wall Adhesive Lined Heat Shrink Tubing

Description :

20cm 2.4-12.7mm 3 : 1 Ratio Dual Wall Adhesive Lined Waterproof Heat Shrink Tubing

Color : Black
Length : 20 cm
Shrinkage Ratio : 3:1
Tensile Strength : 14Mpa
Dielectric Strength : 20kv/mm
Minimum Shrinkage Temperature : +70 a

RoHS Compliant.
High strength and resilience.
Resistance to common fluids and solvents as well as high dielectric strength.
Adhesive lined polyolefin heat shrink, with a 3 : 1 shrinkage rate, this tube shrinks to 1/3 of its diameter when heated.

It is suitable for a wide range of applications, including electrical insulation, strain relief, cable bonding, color-coding and identification.
When heated the tube shrinks to 1/3 of it's diameter and the adhesive lining melts and flows around the material being covered giving a permanent weatherproof bond.
Due to the way heat shrink tube manufactured, it is often a little larger than its stated pre-shrunk size, however the tube will always shrink to 1/3 of the stated pre-shrunk size.

Size :

G 3X 2.4mm(ID)x20cm (Length) in
G 3X 3.2mm(ID)x20cm (Length) in
G 3X 4.8mm(ID)x20cm (Length) in
G 3X 6.4mm(ID)x20cm (Length) in
G 3X 7.9mm(ID)x20cm (Length) in
G 3X 9.5mm8(ID)x20cm (Length) in
G 3X 12.7mm(ID)x20cm (Length)

Package included :

1 x 3 : 1 Heat Shrink Tubing 20cm 12.7mm

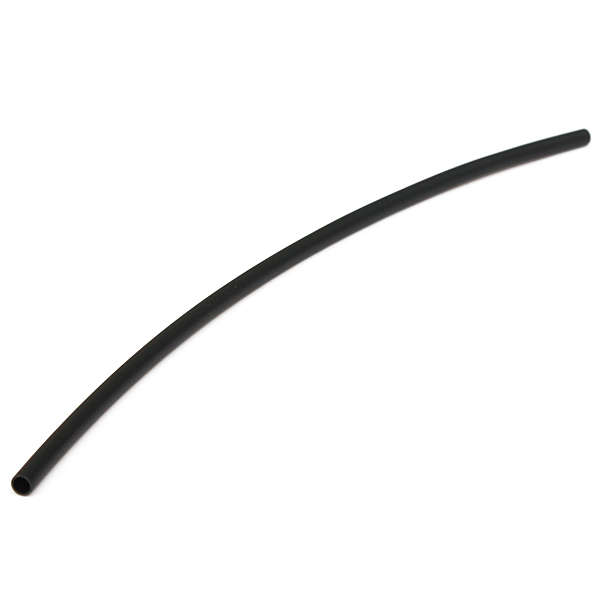

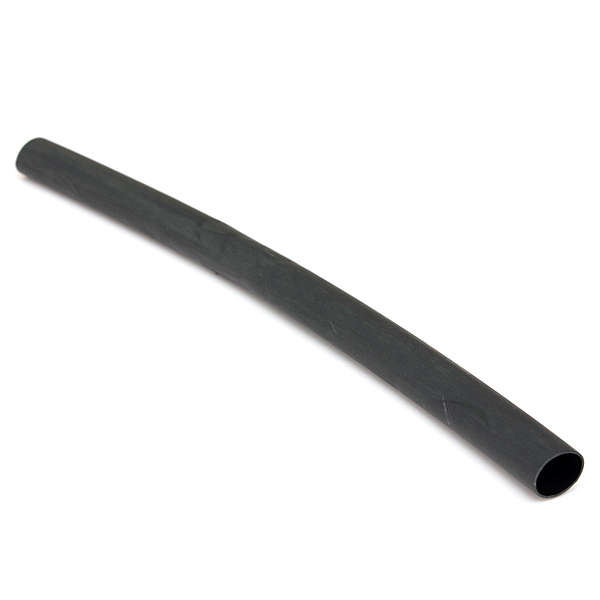

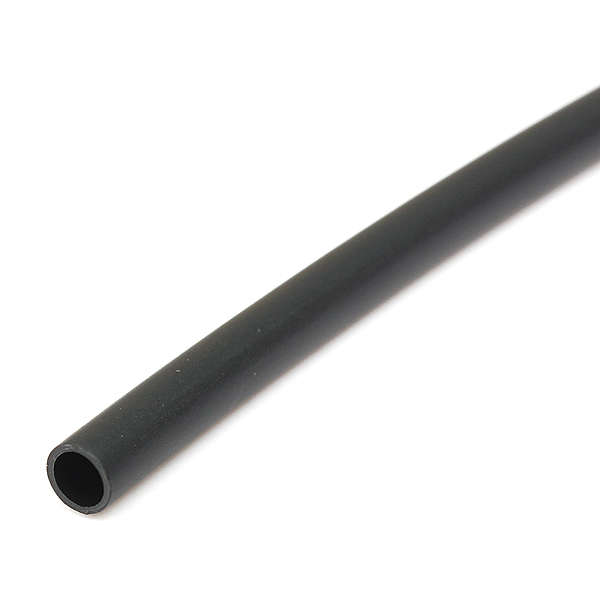

Details pictures :




, ,
