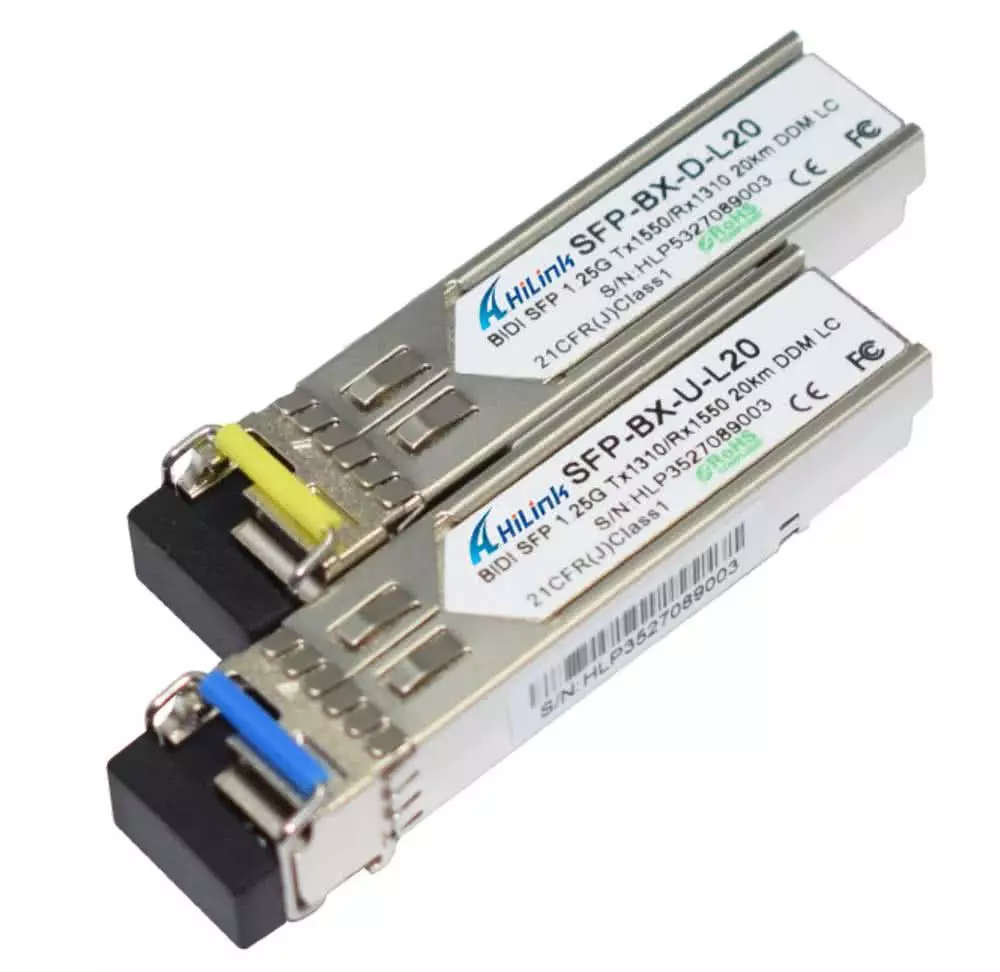

20km Single Mode BiDi SFP Transceiver Module SET | Cisco & Generic Network Switch Compatible | 1000BaseBX Bi-Directional
These Fiber SFP modules have been individually programmed to be compatible with Cisco and is 100% compatible with other generic sfp coding brands such as Tenda, TPLink, TrendNet, Netgear, Ubiquiti / Unifi and generic OEM brands.
This SFP is Hot-Pluggable and it can be inserted into a Network or POE Network Switch without the need to power-down the switch.
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. An SFP interface on networking hardware is a modular (plug-and-play) slot for a media-specific transceiver in order to connect a fiber optic cable or sometimes a copper cable.
Please see our guide at Fiber Optic Cables SFP Compatibility for more information.
- Support IEEE802.3 and Fiber Channel Applications
- Single fiber bi-directional data links with 1.25G GbE and 1.0625G Fiber-Channel
- Support up to 20km Transmission on Simplex Single Mode Fiber Cables
- 1550nm transmitter with DFB laser
- 1310nm receiver with PIN-TIA
- Connector: 1x LC UPC per Module
- Data Rate: 1.25Gbps
- Operation case temperature -40~85°C for Industrial, and 0~70°C for commercial
- RoHS6 Compliant
- Wave Length : 1550nm/1310nm

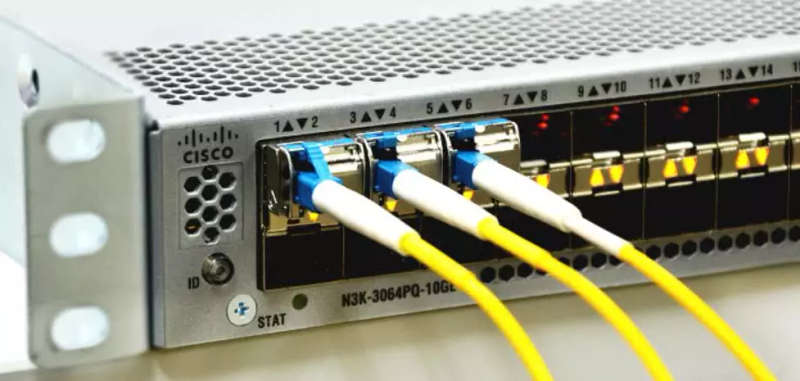

Example of Bidi SFP with Simplex LC Fiber SFP Installation
Operating Conditions
| Parameter | Unit | Min | Typical | Max |
| Storage Temperature | °C | -40 | | 85 |
| Operating Case Temp for C-temp | °C | 0 | | 70 |
| Operating Case Temp for I-temp | °C | -40 | | 85 |
| Power Supply Voltage | V | 3.1 | 3.3 | 3.5 |
| Supply Current | mA | | | 300 |
| Bit Rate for GE | Mpbs | 1250 |
| Bit Rate for Fiber Channel | Mpbs | 1062.5 |
These Bi-Directional SFP Modules are commonly installed with the Simplex Single Mode LC to LC Fiber Cables Below:
/60m-simplex-single-mode-lc-to-lc-fiber-optic-cable-upc-fiber-patch-cord/
Below are Network Switches and POE Network Switches commonly used with these SFP's to enable the switches to be up-linked by Fiber Cables
/150-watt-19-port-100mb-s-poe-network-switch-with-sfp-1-25gbps-uplink-port/
/6-port-power-over-ethernet-poe-gigabit-network-switch-with-fiber-1gbps-rj45-uplink-port-incl-52v-1-25a-psu-15-4w-per-port-max-ieee-802-3af-at/
SFP Module Installation Instructional Video
https://youtu.be/vuu0gjWEORg
