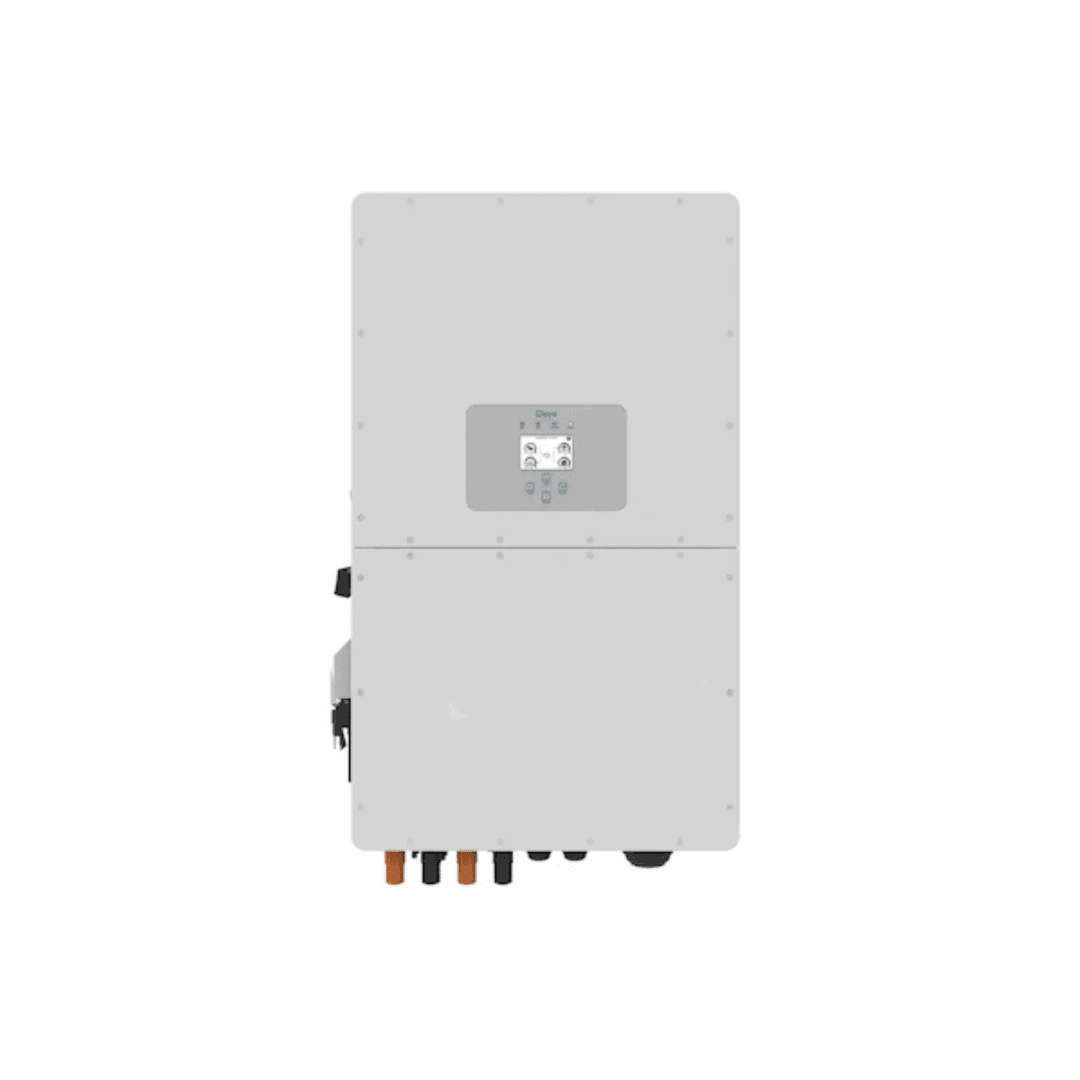

20KW HV Deye Three Phase Hybrid Inverter

Deye 20kW Three-Phase Hybrid Inverter High-Performance Solar Energy Solution

Important Notes:

• Online Deal Only: Arrange for in-store collection

Versatile Hybrid Inverter for Commercial Use

The Deye 20kW Three-Phase Hybrid Inverter is a high-efficiency energy solution designed for grid-tied and off-grid applications. With support for multiple battery types, high-voltage battery storage, and parallel operation, this inverter ensures maximum power efficiency and energy independence.

Equipped with dual MPPT trackers, a 1000V DC input capacity, and unbalanced output support, it is ideal for commercial solar installations. It also features energy storage from diesel generators, making it a reliable choice for backup power solutions.

Key Features:

• 100% Unbalanced Output: Independent phase control for optimal performance.
• AC Coupling: Allows easy integration into existing solar systems.
• Parallel Operation: Supports up to 10 inverters for on-grid or off-grid use.
• High Voltage Battery Support: Ensures higher efficiency and improved performance.
• Multiple Battery Options: Compatible with lead-acid and lithium-ion batteries.
• Customizable Charging & Discharging: Set up to 6 time periods for optimized energy management.
• Generator Integration: Supports energy storage from diesel generators for extended backup.
• IP65 Rated: Weather-resistant design for indoor and outdoor installations.

Technical Specifications:

Battery Input Data:

• Battery Type: Lead-Acid / Lithium-Ion
• Battery Voltage Range: 160V - 700V
• Maximum Charging Current: 37A
• Maximum Discharging Current: 37A
• Battery Input Ports: 1

PV String Input Data:

• Maximum DC Input Power: 26,000W
• Maximum DC Input Voltage: 1000V
• Start-Up Voltage: 180V
• MPPT Voltage Range: 150V - 850V
• Maximum PV Input Current: 26A + 26A + 26A
• MPPT Trackers / Strings per MPPT: 2 / (2+2)

AC Input / Output Data:

• Rated AC Input/Output Active Power: 20,000W
• Maximum AC Input/Output Apparent Power: 22,000VA
• Rated AC Input/Output Current: 30.4A / 29A
• Maximum AC Input/Output Current: 33.4A / 31.9A
• Maximum Continuous AC Passthrough (Grid to Load): 35A

General Specifications:

• Noise Level: <55dB
• Ingress Protection (IP) Rating: IP65 (Weather-Resistant)
• Cabinet Dimensions (W × H × D): 408 × 638 × 237 mm (Excluding Connectors & Brackets)
• Weight: 30.5kg
