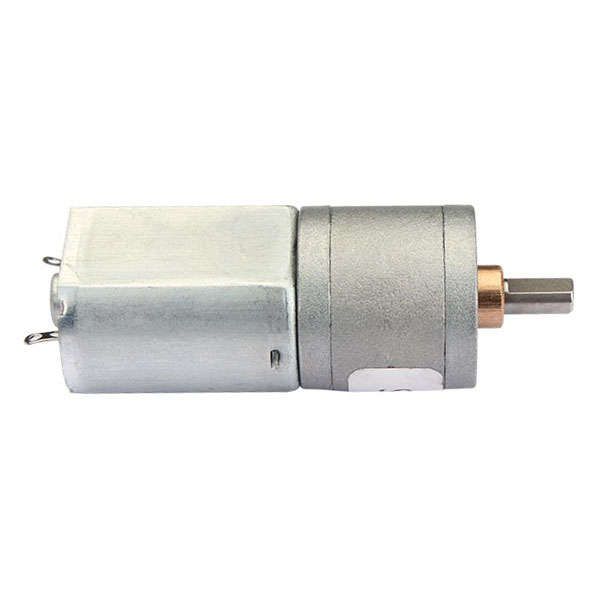

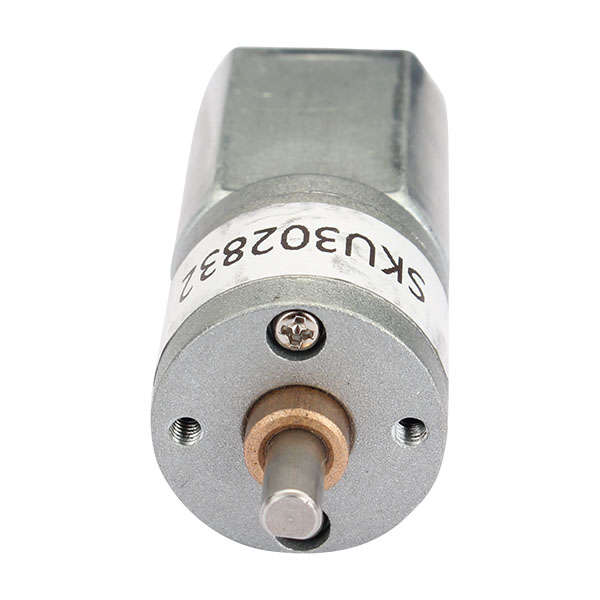

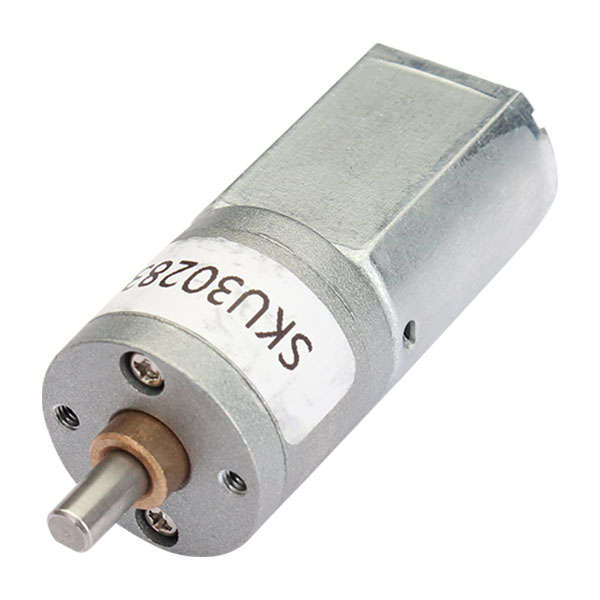

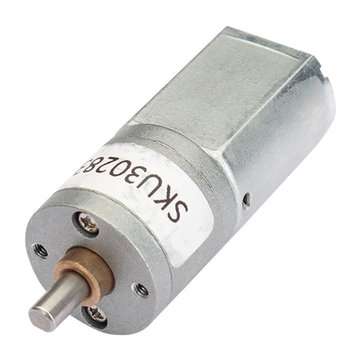

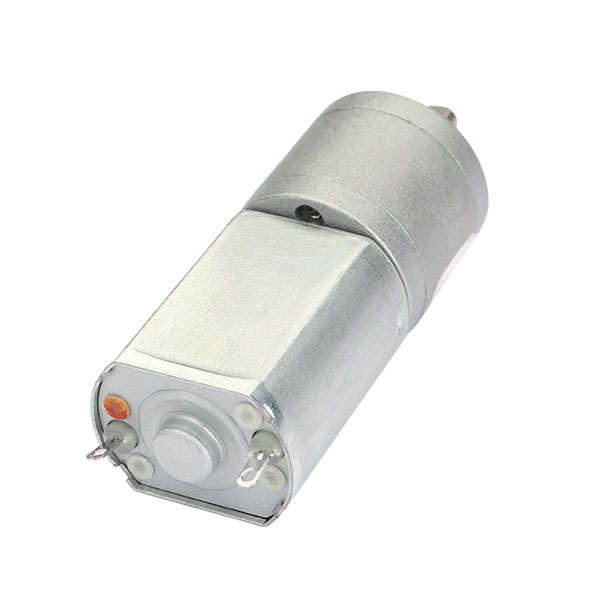

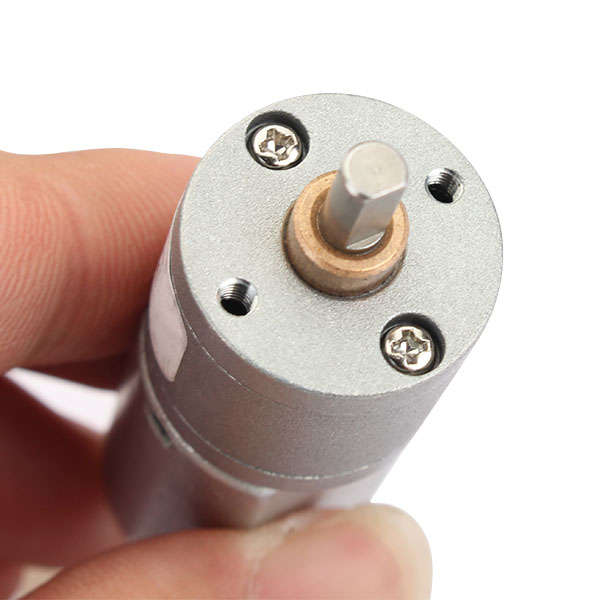

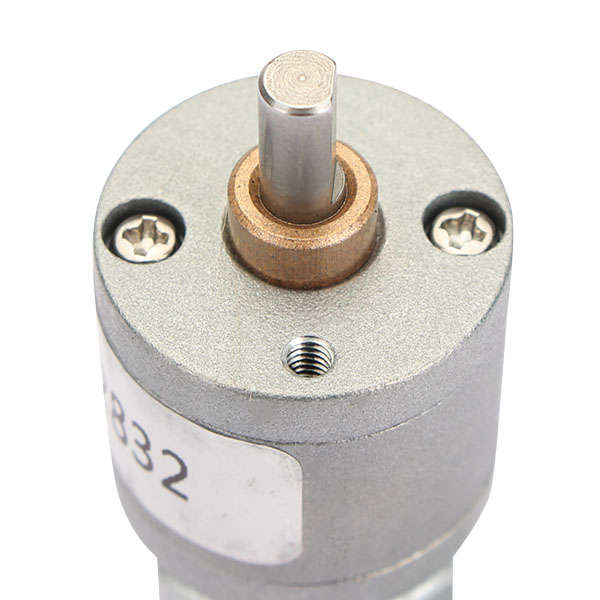

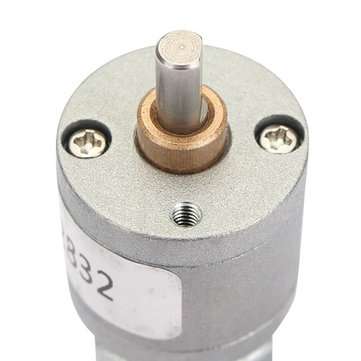

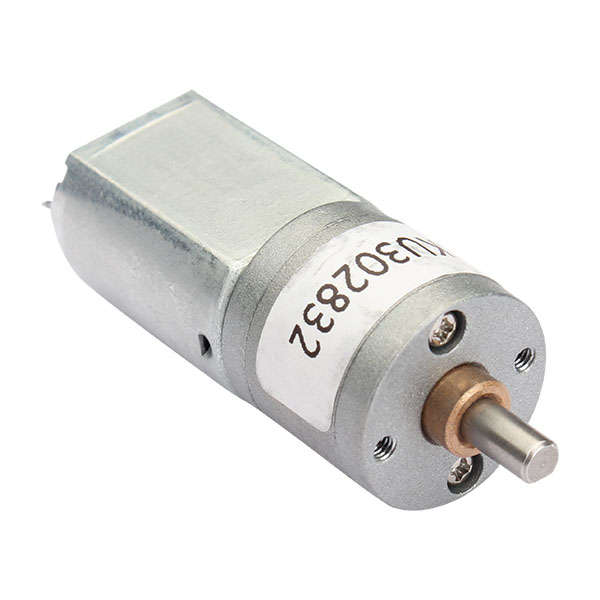

20mm DC 6V 22RPM Large Torque Gear Motor

20 available / new

R459.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3589

93.02 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643359847

Description:
20mm DC 6V 22RPM Large Torque Gear Motor

Specification:
Voltage: DC 6.0V No-load speed: 22rpm Locked rotor torque: 6kg.cm
1. Standard Operating Conditions

Item	Specification
Rated Voltage	DC 6.0V
Gear Ratio	1/195
Rotation	CCW/CW
Motor Position	All position in horizontal
Temperature	0 - 30 Degree Celsius
Humidity	30% - 95%

2. Performance of Motor

Item	Specification
No-load Speed	4500 +/- 10%rpm
No-load Current	35mA (Max)
Stall Current	420mA (Max)
Stall Torque	50g.cm

3. Performance of Gear Motor

Item	Specification
Outer Speed	22+/-10%rpm
No-load Current	60mA (Max)
Stall Current	420mA (Max)
Stall Torque	6.0kg.cm(Max)
Rated Torque	3000g.cm
Rated Current	180mA (Max)
Rated Speed	15+/-10%rpm
Noise	50dB

4. Dimension

Item	Specification
The Outside Shafft Length	10.5mm
Shaft End Play	0.05 - 0.50mm
Screw Size	M2.5
Diameter of Shaft	4 x D 3.5mm

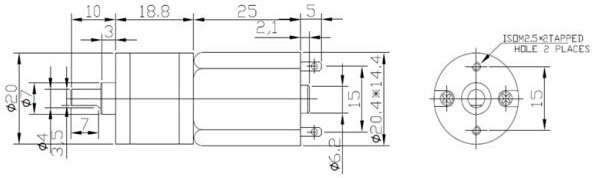

Outline Mounting Dimension	Refer to the Outline Drawing
