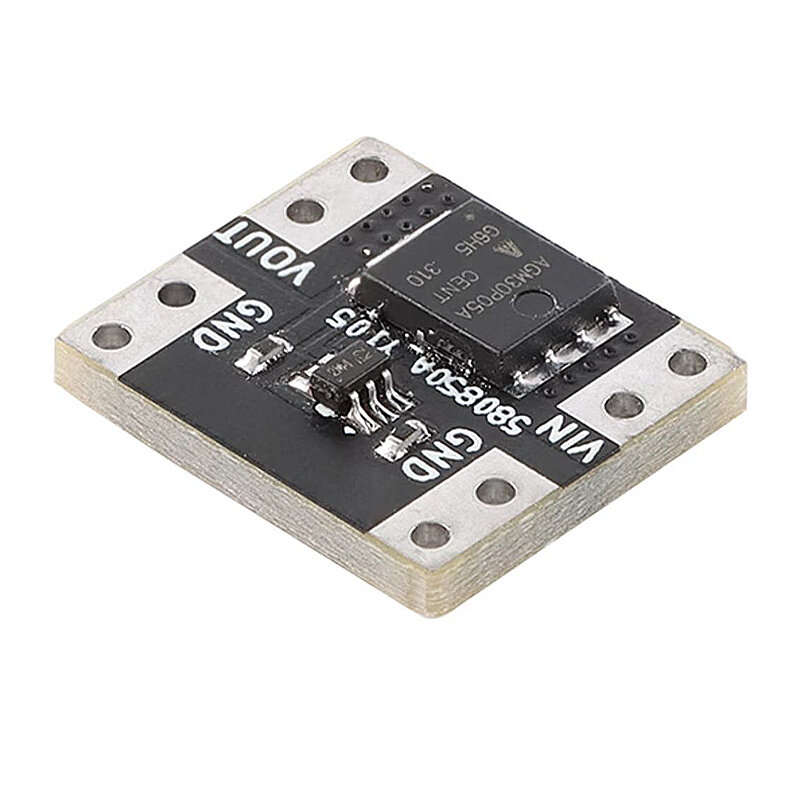

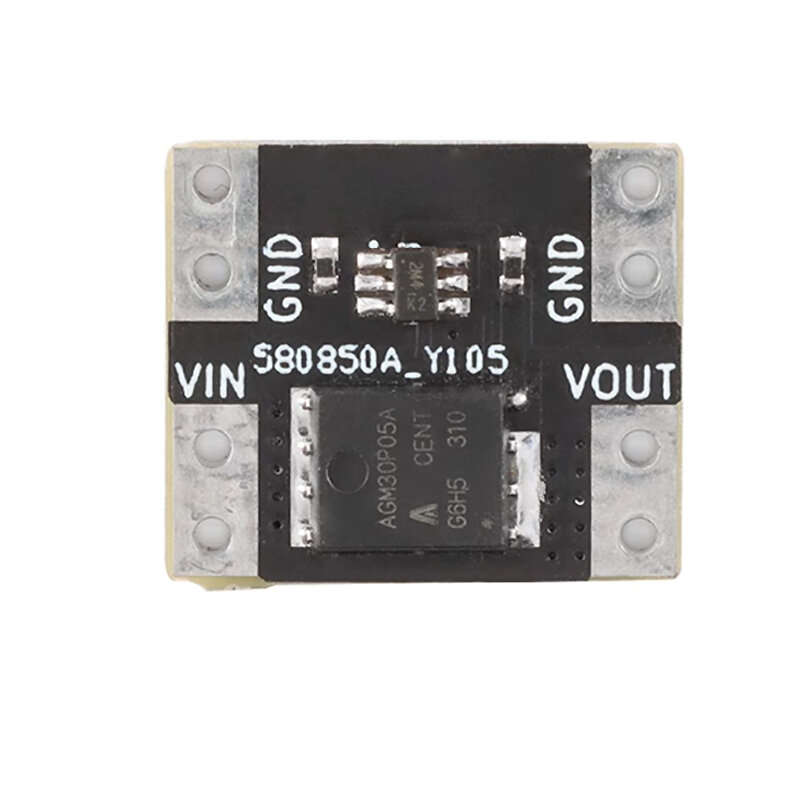

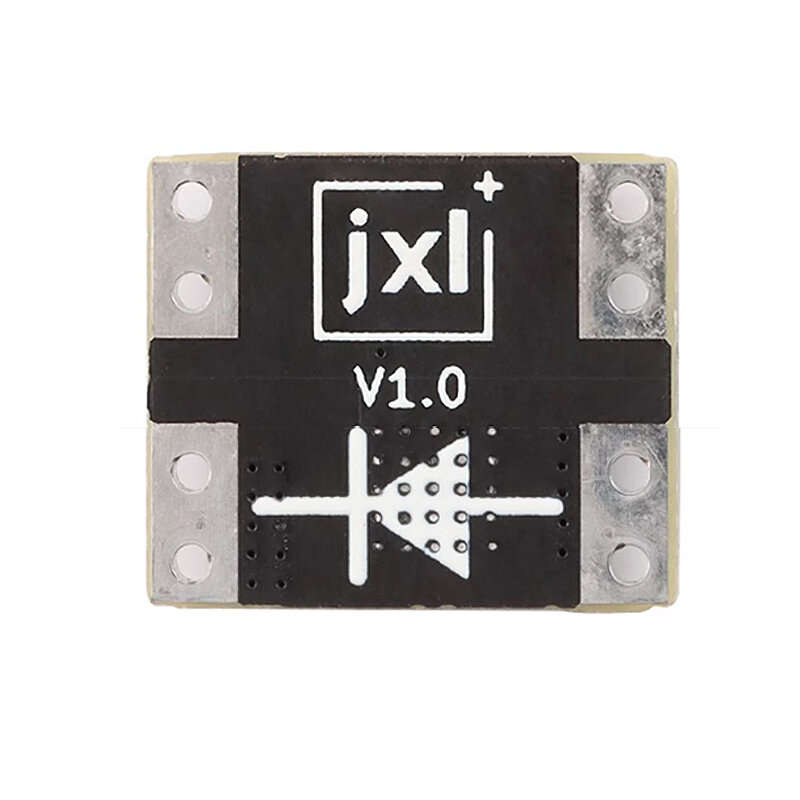

XL0401 Simulation Ideal Diode Ideal Diode Module Rectifier 3V-26V 5.5m Low Internal Resistance MOS B

Desription:

XL0401 ideal diode module adopts a special chip to simulate the ideal diode rectifier, and the module adopts 5.5m MOS with low internal resistance, so the voltage drop is small when it works at high current, which avoids the high voltage drop of 0.7V of ordinary diode, and the reduction of voltage drop also reduces the heating to a great extent. When a 0.3V Schottky works at 10A current, the heating power consumption is 3W (actually it will be much larger). The measured XL0401 ideal diode works at 10A current, and the voltage drop is about 100mv, the heating power consumption is 1W

Parameter:
Working voltage: 3V -26V
Working current:
12V 25 ° C without heat dissipation measures 10A (10A long-distance running test for 30 minutes)
12V 25 ° C heat sink+air cooling 15A (15A long
