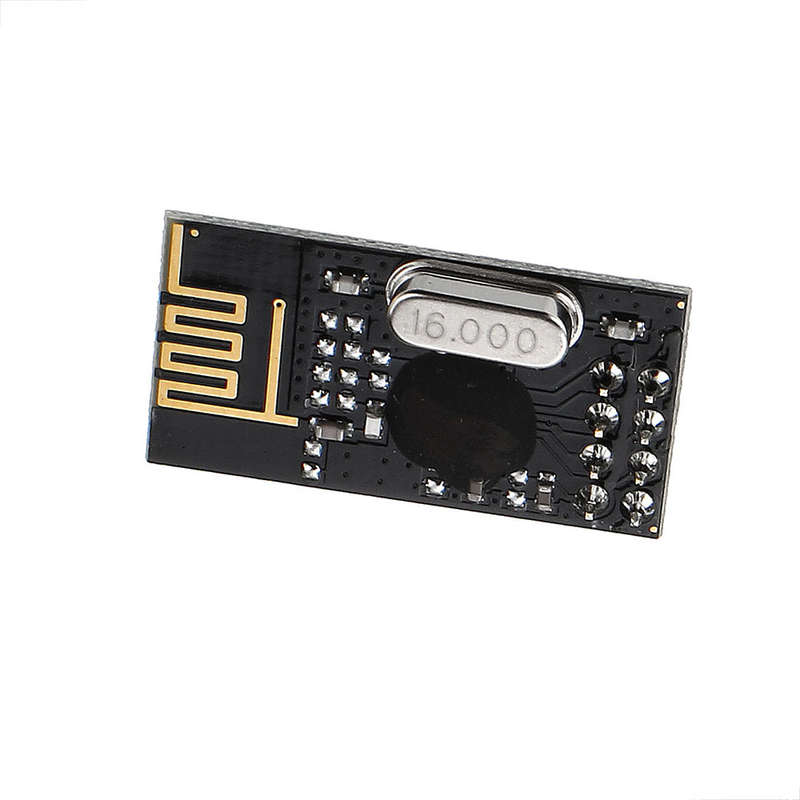

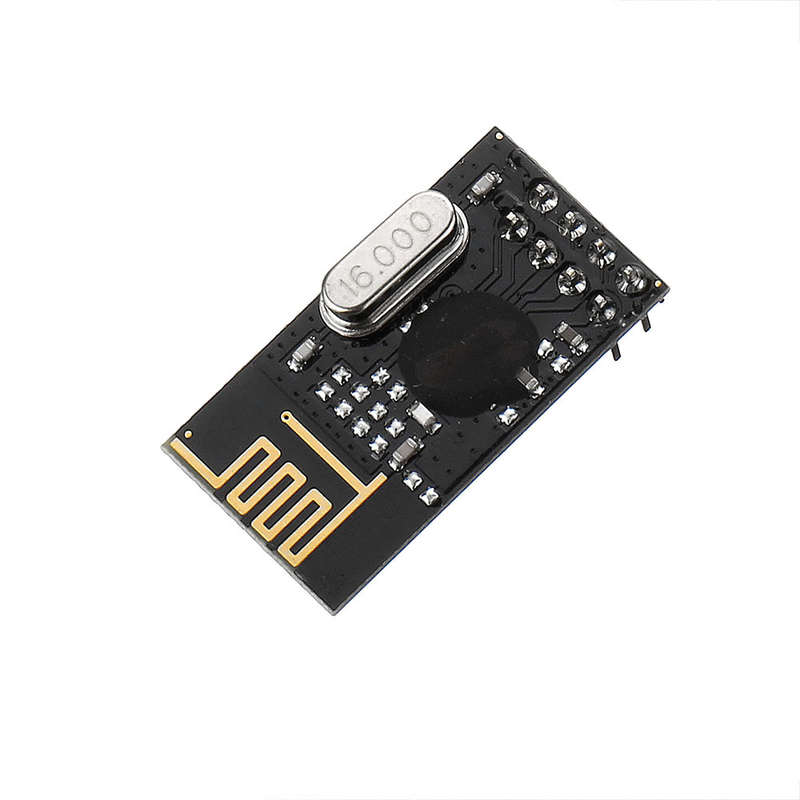

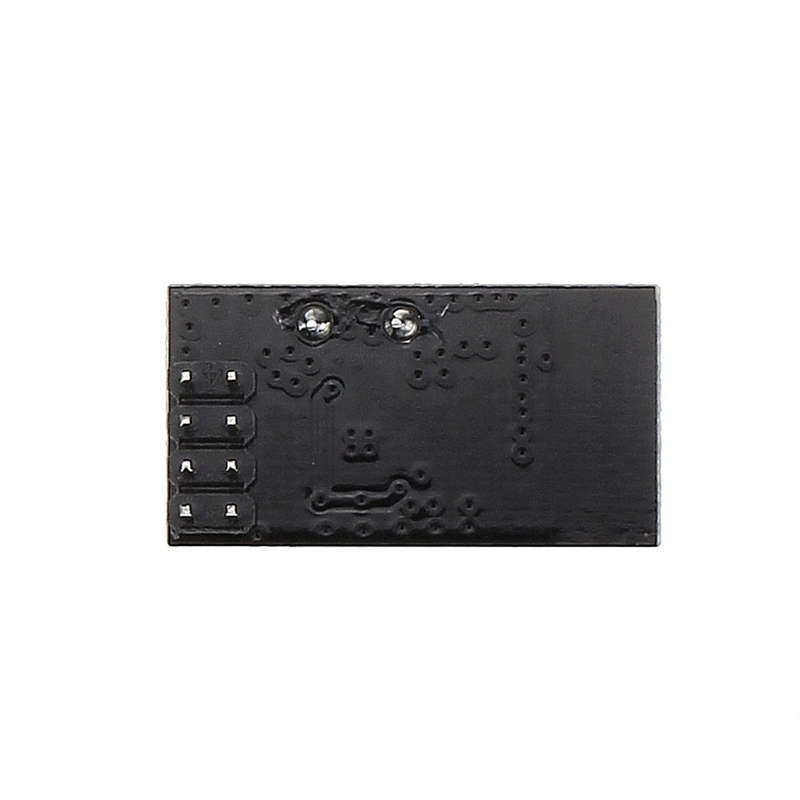

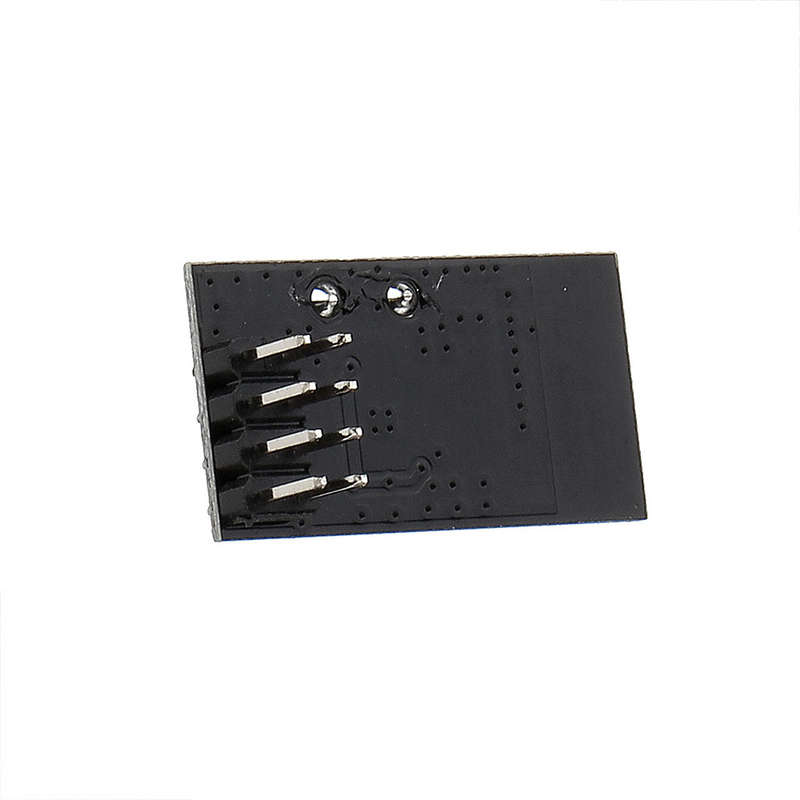

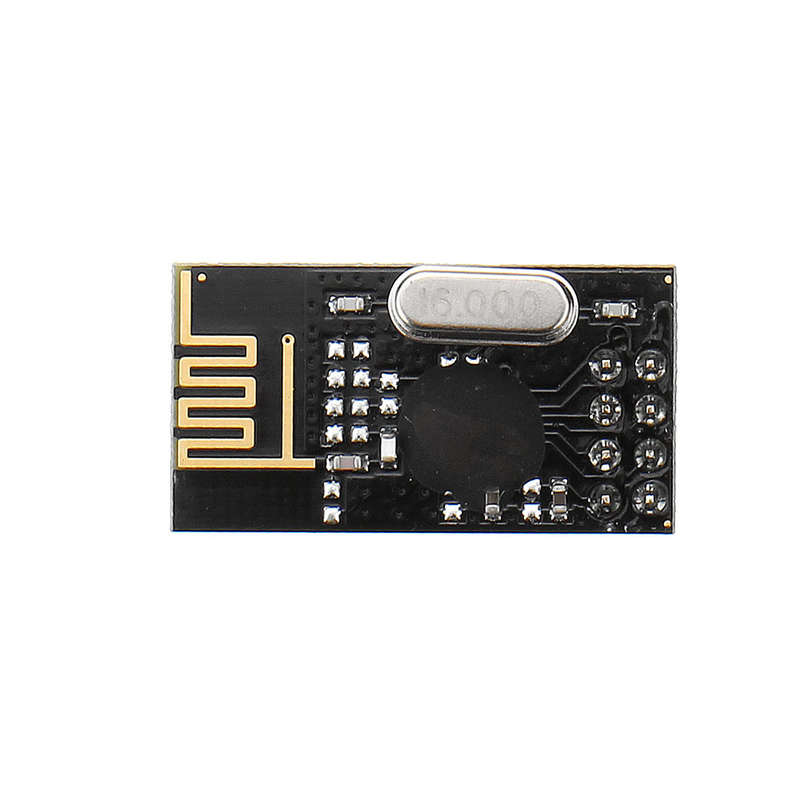

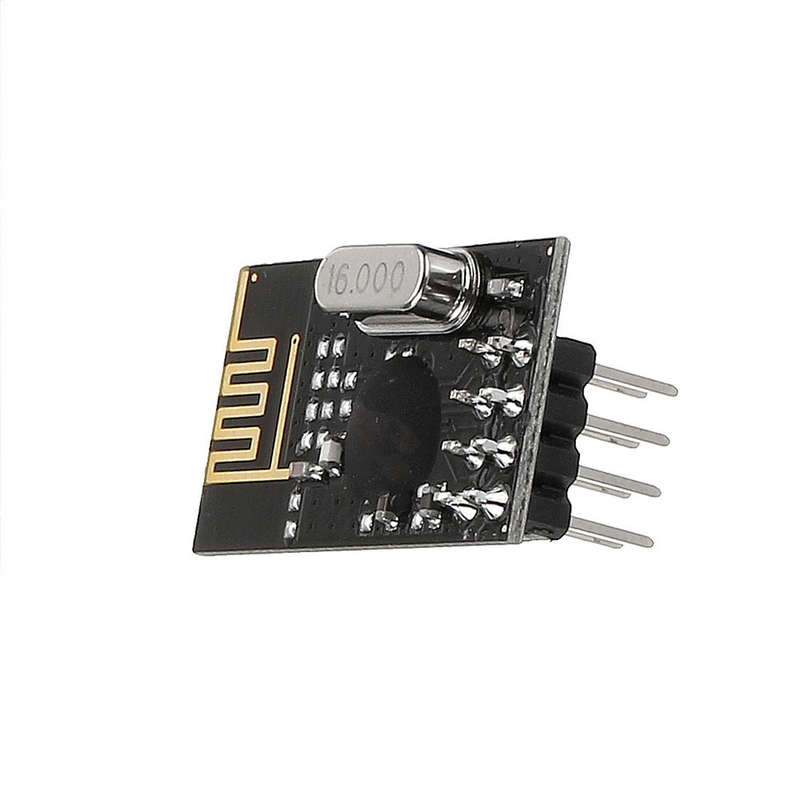

20pcs NRF24L01 Wireless Module 24L01 2.4G Wireless Communication Module

Overview: This wireless Transceiver module is an easy and suitable module if you want to setup your wireless communication system with low cost!! This module can achieve a good balance between wireless transition performance and cost! You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! Features: - 2Mbit/s, 1Mbit/s, 250Kbit/s, three selectable transmission rate. - MultiCeiver hardware and six receiver functions. - 2 Mbit/s make high-quality VoIP is possible. - +/- 60 ppm crystal. - Only require an external inductor in the antenna matching - There is no need multi-layer PCB. - 5V tolerance level inputs. - Improved ShockBurst and the serial interface can be easy to connect with a variety of low-cost MCU. - There si no need SPI interface with the MCU. - Received in the rate of 2Mbit/s, the peak current is 12.5mA. - When the rate of 2Mbit/s @ 0dBm output,the peak current is 11mA. - Power-down mode, power consumption is 400nA. - Standby mode, power consumption is 32uA. - 130us fast switching and wake time. - With voltage regulator:Oltage regulators on board. - Built-in 2.4GHz antenna,support up to six channels of data reception. - Low operating voltage: 1.9-3.6V Package Included: 20 x NRF24L01 Wireless Module
