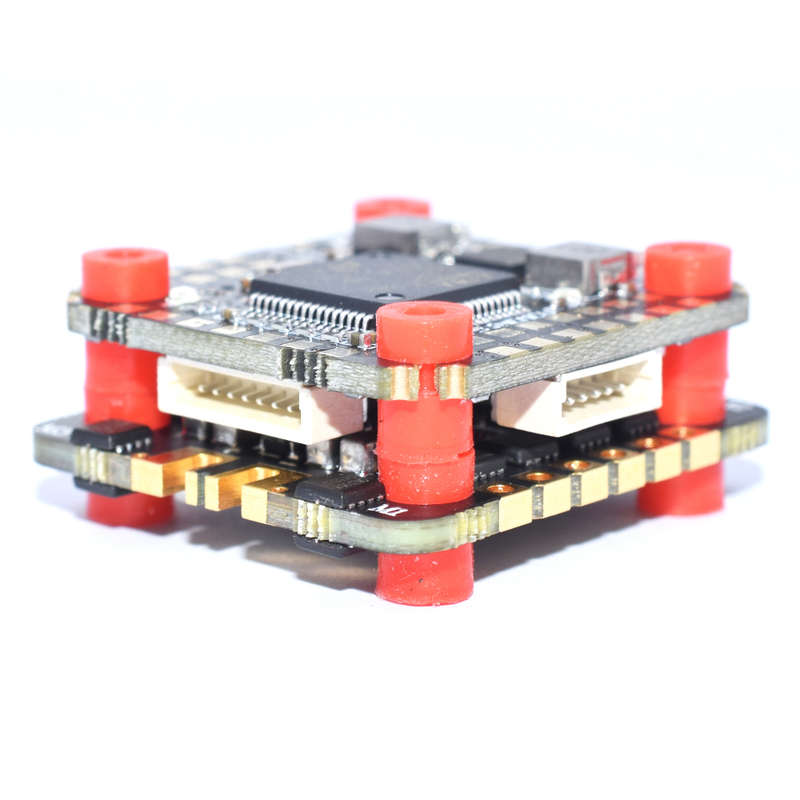

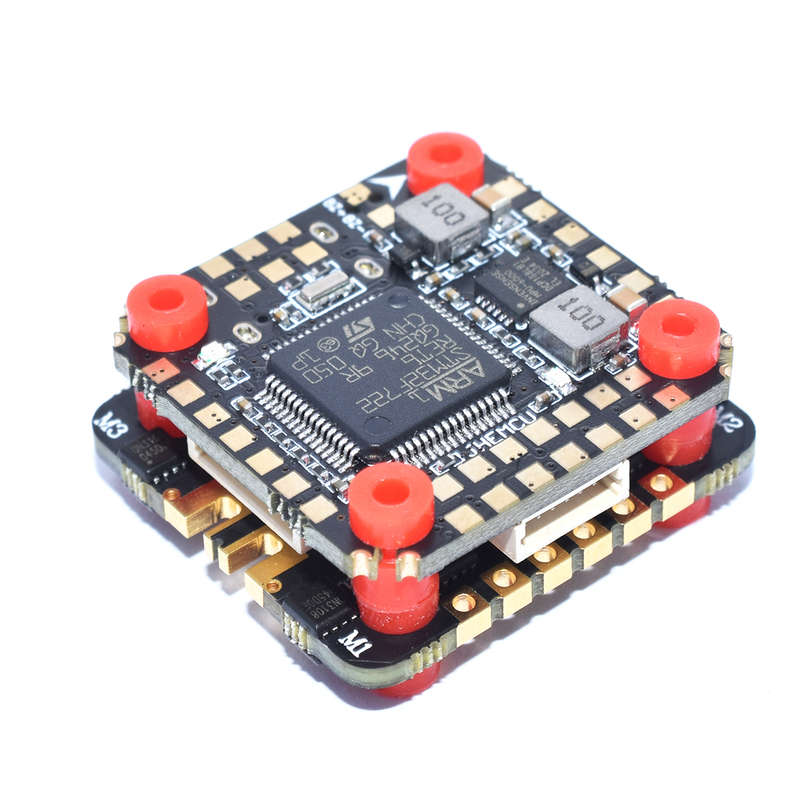

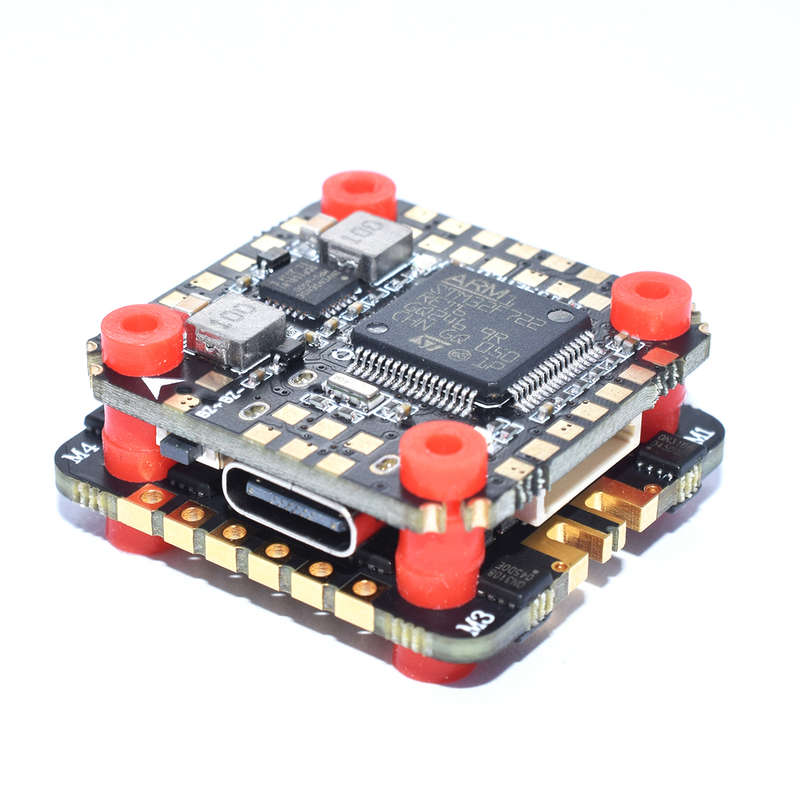

20x20mm JHEMCU Betaflight F7-XSD Pro F7 Flight Controller & EM20A 20A /... (VERSION: DELUXEF720AESC)

12 were available / new

R1,351.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3628

93.03 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

612419980

SELECTED OPTION:
VERSION: DELUXEF720AESC

Upgrade:

1.Firmware: betaflight_4.2.0_JHEF7DUAL.hex

2. Add 10V 2A dependent BEC

3.Add DJI VTX Suport Port???With cable???

4.USB Change to TYPE-C

5.Add IO1 IO2 Port(Custom usrer1/user2 mode function)

6.Support to 6 motor

7.6 UARTS(UART1/2/3/4/5/6)

7. Move CURT (current signal) input port to cable???8P???

Description:

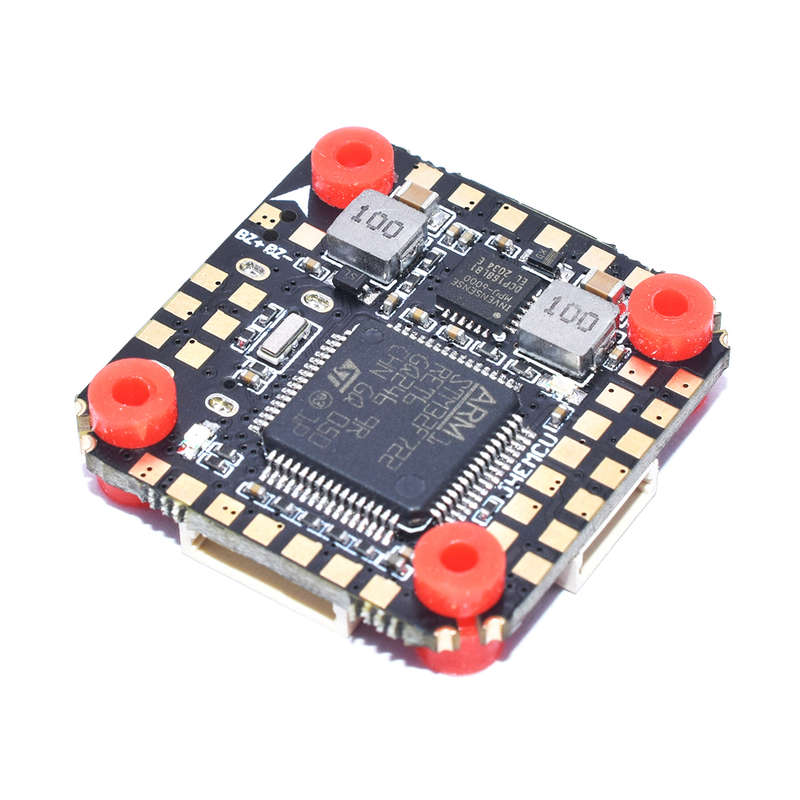

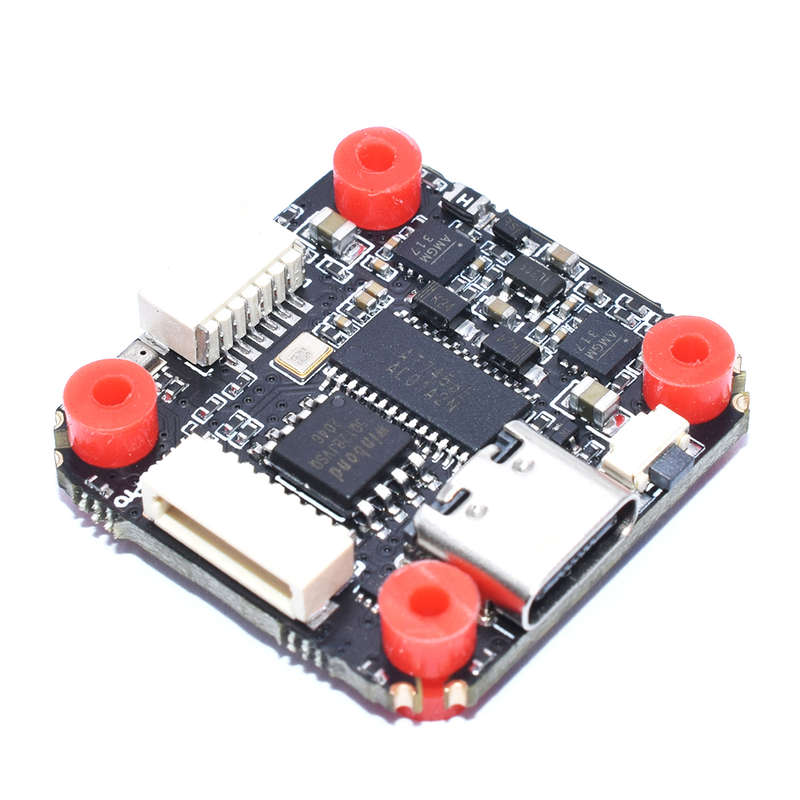

Item Name: Betaflight F7-XSD Pro Flight Controller

Version: Standard Version / Deluxe Version ( Optional)

Standard Version: Without? Barometer and Blackbox

Deluxe Version: With Barometer and Blackbox

CPU: STM32F722

MPU: MPU6000

Input Voltage: Support 2-6S Lipo Input

Firmware: betaflight_4.2.0_JHEF7DUAL.hex

Built-In 16MB black box( Only Deluxe version)

Built-In Barometer(Only Deluxe version)

Built-In Betaflight OSD?

Built-in 5V@3A & 10V@2A BEC

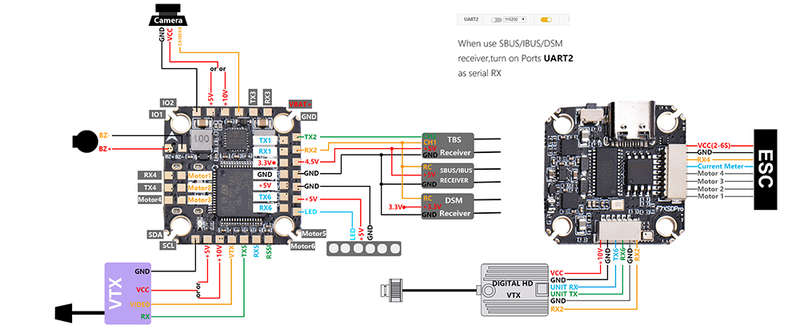

Support Spektrum 1024 /2048 , SBUS, IBUS, and 3.3V Spektrum Satellite receiver?

IIC:Support

LED Strip???Support

Buzzer:Support

Size: 27x27mm

Mounting Hole: 20x20mm , M3(change to M2 with shock absorption)

Weight: 4.7g

Application: for less than 150mm frame kit

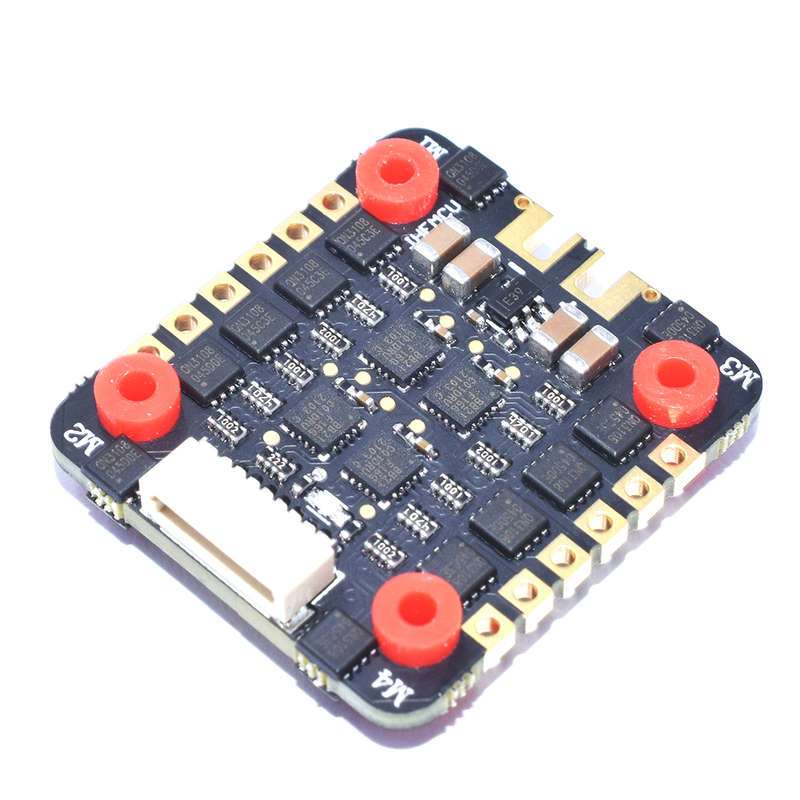

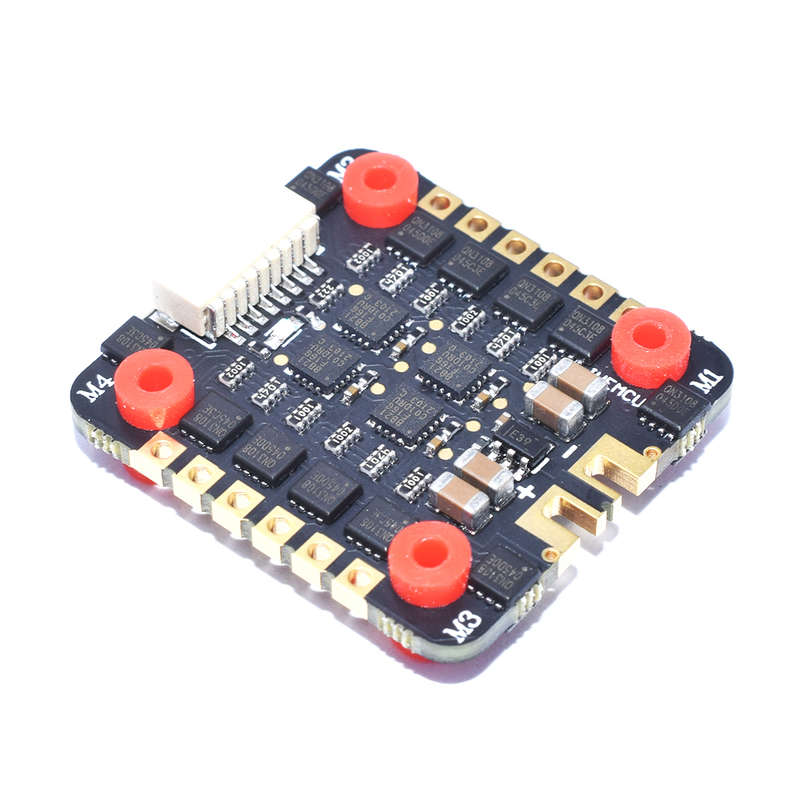

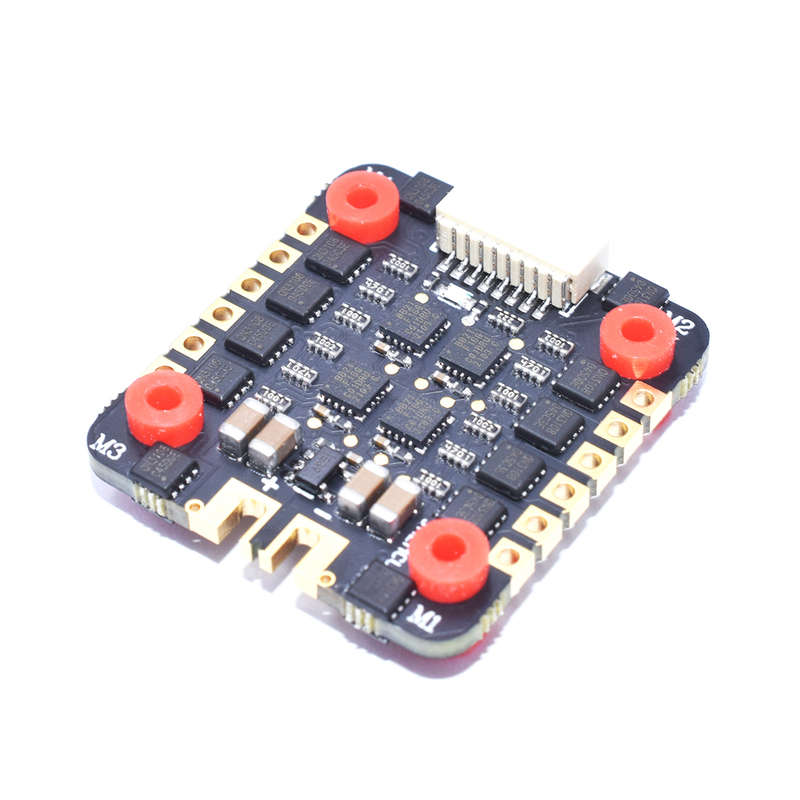

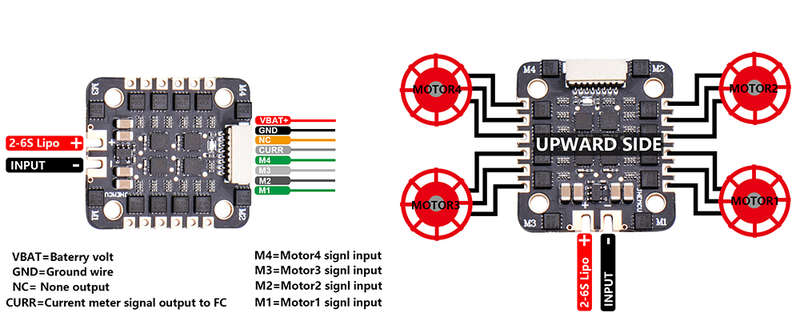

EM20A/40A 2-6S Dshot600 BLHELI_S ESC

Model: EM20A/ EM40A?

Version: 20A / 40A ( Optional)
Item Name: 20A / 40A BLheli_S 2-6S 4in1 Brushless ESC?
Input Voltage: 2-6S Lipo / 2-6S HV Lipo
Con. Current: 20A ( for 20A Version) / 40A?( for 40A Version)
Burst Current: 25A??( for 20A Version) / 45A ( for 40A Version)

Current:Yes
BEC: No
Firmware: GH_30

Mounting Hole: 20x20mm ( M2)

Size: 27x29mm

Weight: 5.2g

Package Included:???Optional???

1x F7-XSD Pro Flight Controller
1x 4in1 ESC?

1x 8p Cable

1x DJI VTX Cable

8x M2 Shock absorption???Red???

4x M2x20 screws

8x M2 nuts
