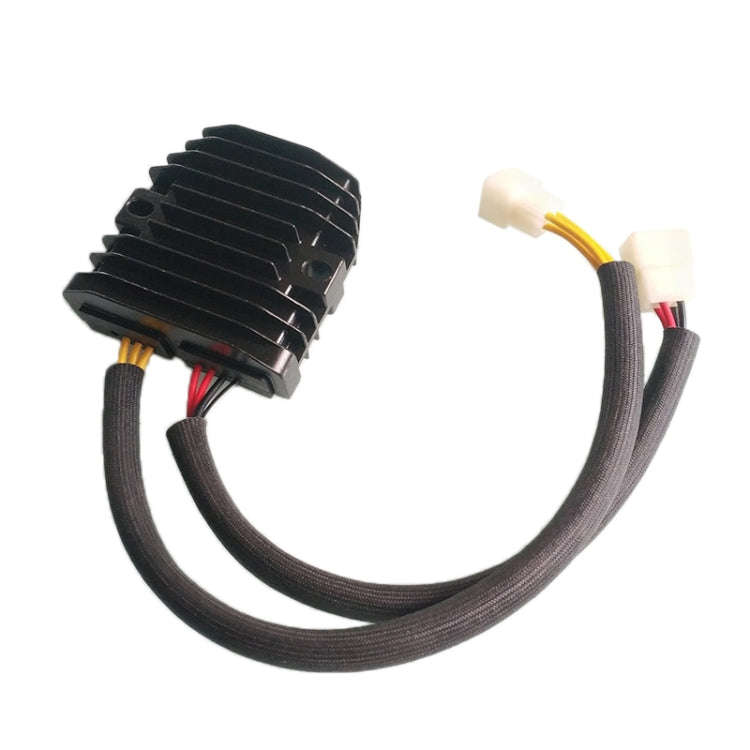

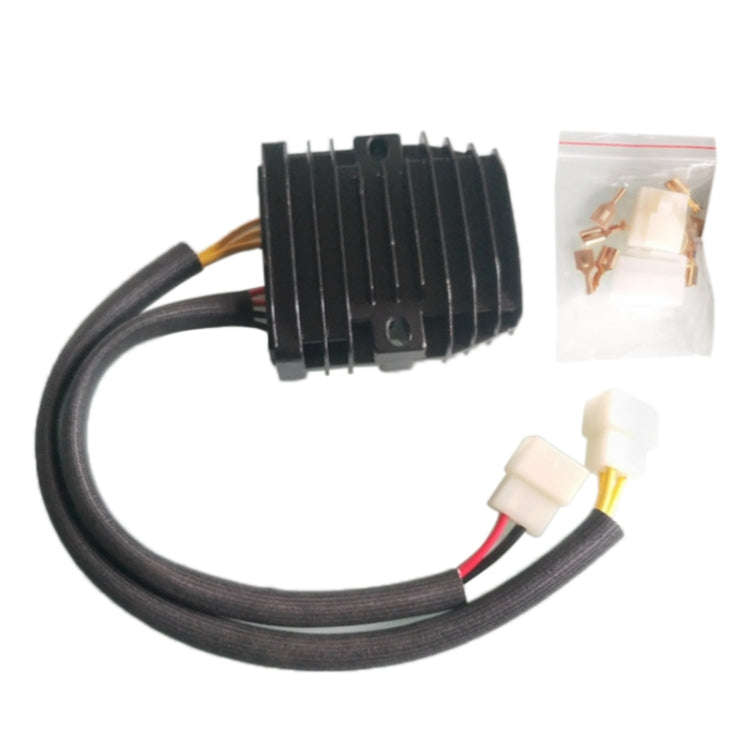

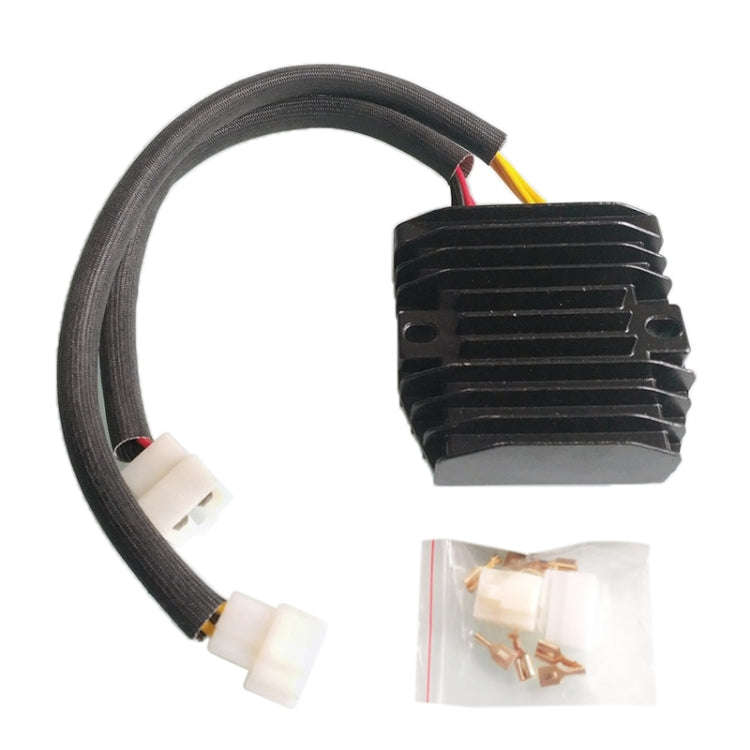

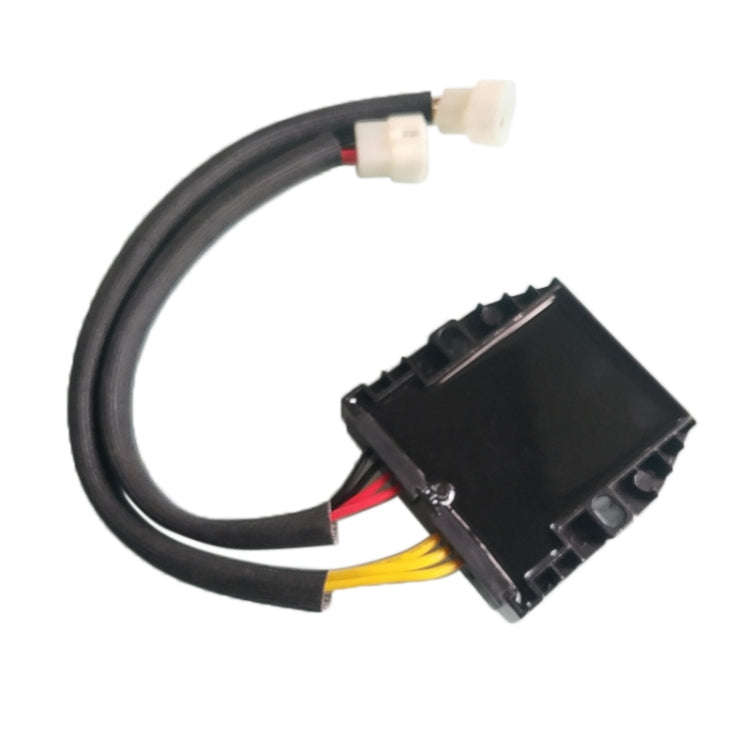

2101B.3 Motorcycle Rectifier For Suzuki Bandit 1250 2007-2009/ Triumph Daytona 600 / Victory Spri...

1. Weight: 360g
2. Cable length: 1.5 square meters x 30cm
3. Output voltage: 14.5v

Installation Precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The whole installation process should be recorded and saved.
3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.

Applicable models:
For Mosfet voltage regulator rectifier for Sprint ST 1050 2005-2010 OEM#T1300560
For Victory sprint ST 1050 2005 2006 2007 2008 2009 2010
For Triumph Daytona 600 2004-2005
For Triumph Daytona 650 2004-2005
For Triumph Daytona 955i 2002-2006
For Victory Speed IV 600 2003-2005
For Triple the speed of victory 955 2002-2004
For Victory speed tripled 1050 2005-2010
For Victory sprint RS 955 2002-2004
For Victory sprint ST 1050 2005-2010
For Victory sprint ST 955 2002-2004
For Triumph Tiger 955 2001-2006
For Triumph Tiger 1050 2007-2010
For 32800-02H00
For 32800-15H00
For 32800-18H00
For 32800-21H00
For 32800-41F10
For 32800-41F11
For 32800-47H00
For 32800-47H10
For Suzuki Bandit 1250 2007-2009
For Suzuki B-King GSX1300 2008-2009
For Suzuki Boulevard C90 2005-2008
For Suzuki GSX1250 2011
For Suzuki GSX650F 2008-2009
For Suzuki GSXR 600 2006-2011
For Suzuki GSXR 750 2006-2011
For Suzuki GSXR 1000 2007-2009
For Suzuki LT-A 700X King Quad 4x4 2005-2006
For Suzuki AgateVZ800 2005-2006
For Suzuki VL800 C50 / T 2005-2008
For Suzuki VL800 Volusia 2003-2004
For Suzuki VZ800 M50 2007-2009
