Features:
1. 12V /24 power arbitrarily connected.
2. Double-sided, without cable, heating uniformity, smooth printing .
3. Indistinguished between positive and negative poles, arbitrarily wiring.
4. Borosilicate materials, high transparency.
5. Heating the adhesion are good, plastic parts easily separated after cooling.
6. Eliminates the trouble of replace the special plastic film, does not exist the special plastic film reduce viscosity problem.
7. Suitable for Reprap machine heated circuit boards.
Specifications:

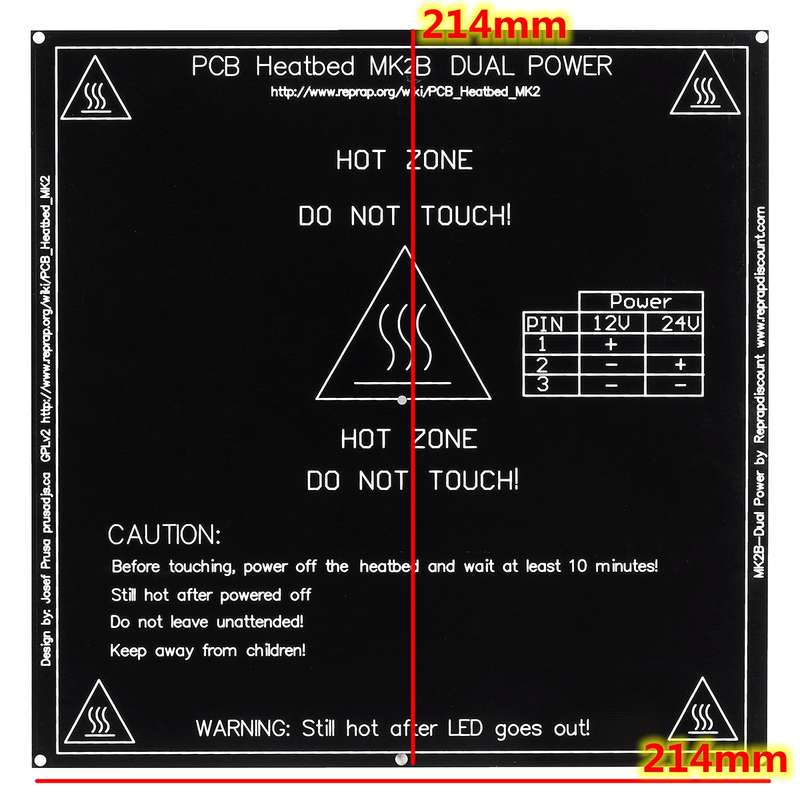

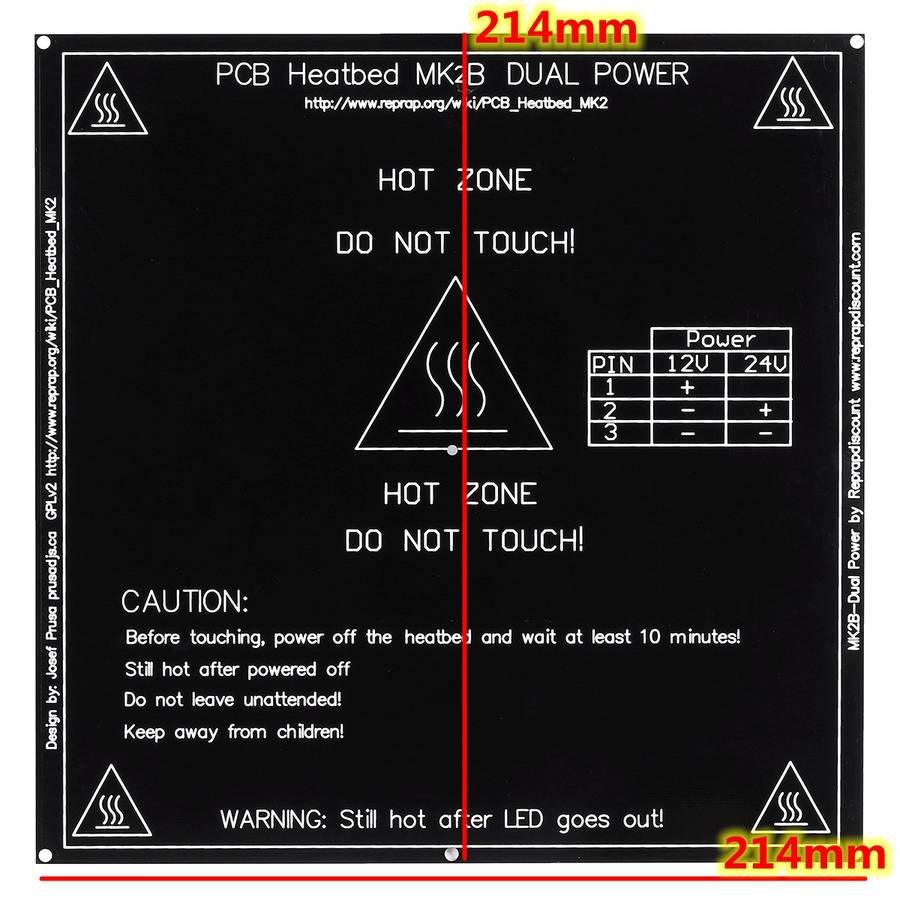

Dimensions: 214x214x0.8mm
Color: Black
Power Input: 12V / 24V
Power: 120W
Laminate FR4 1.6±0.15mm
2 layer, 35μm copper
Black Soldermask - both sides
White Silkscreen - both sides
Technology: aluminum plate
Copper plated holes
Resistance: under 12V voltage, resistance 1.2 ohms; under 24V voltage, resistance 4.8 ohms

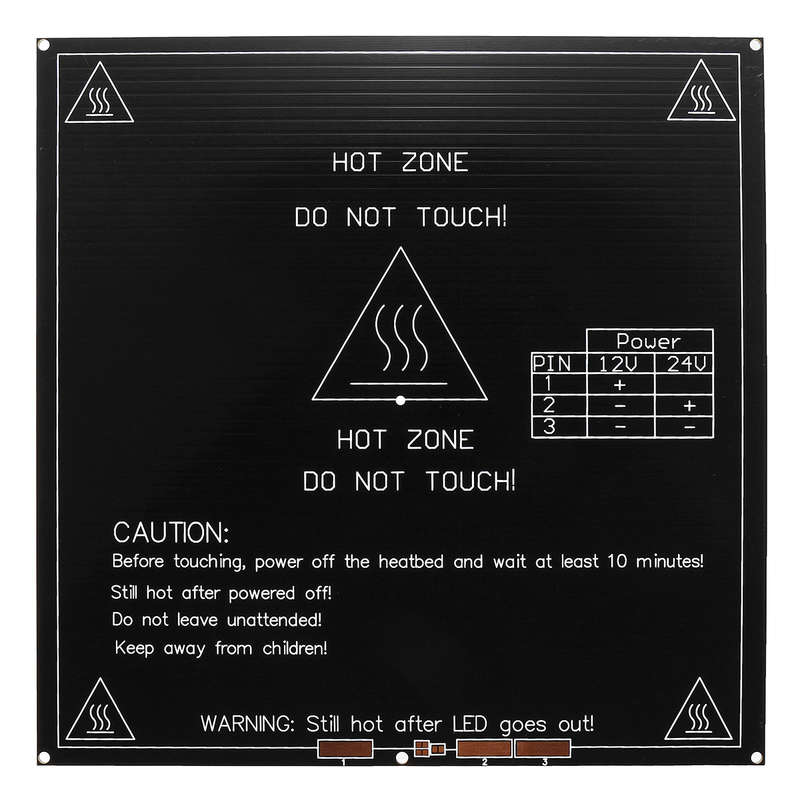

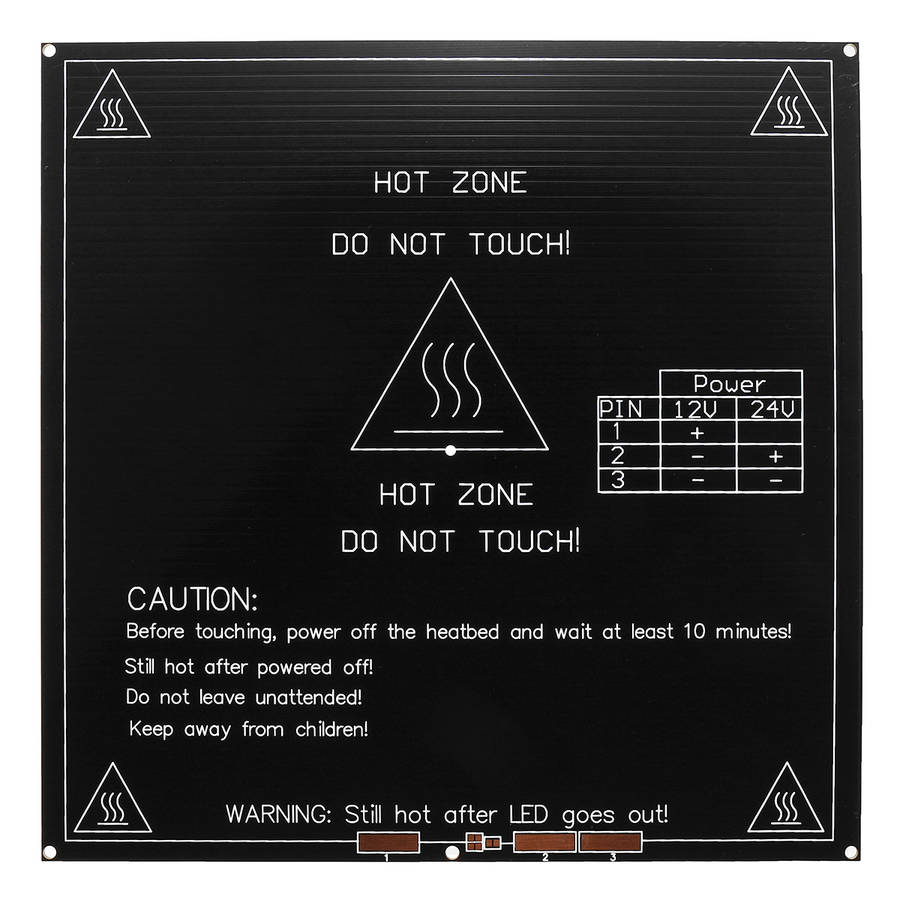

Connect way:
12V connection: A line connected 1, while another receive 2, 3.
24V connection: A cable connected 2, another line connected 3 (1 do not connected).
Package included:

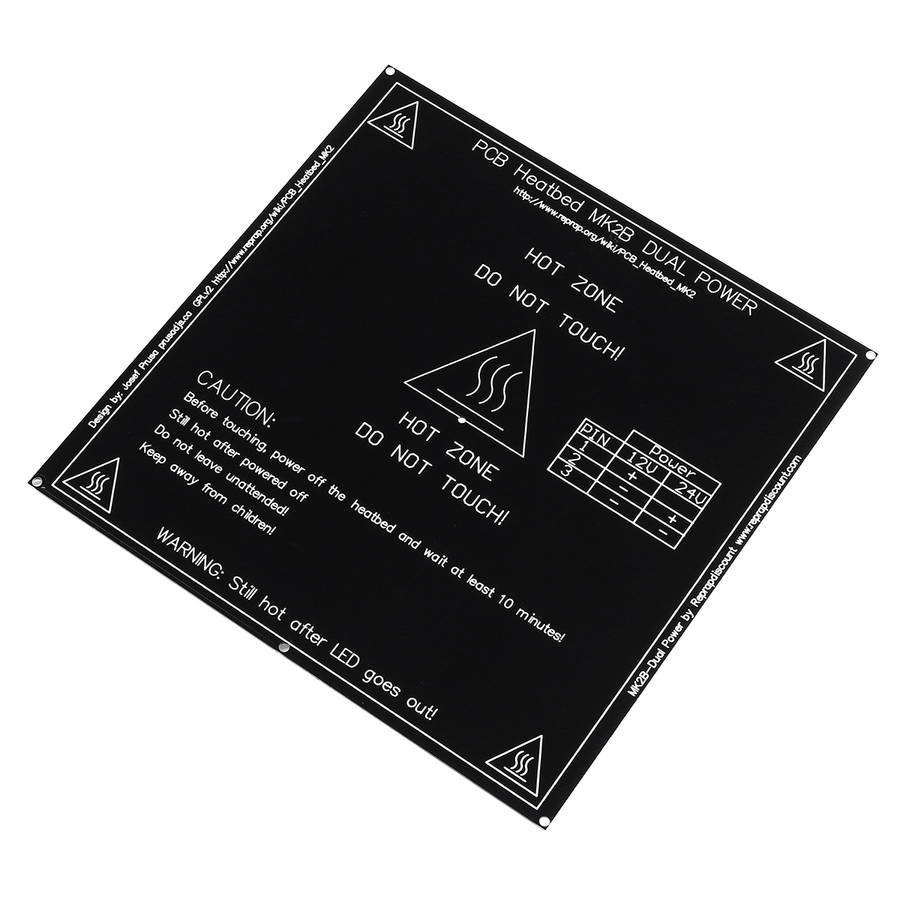

1x MK2B Heatbed
