Specification:

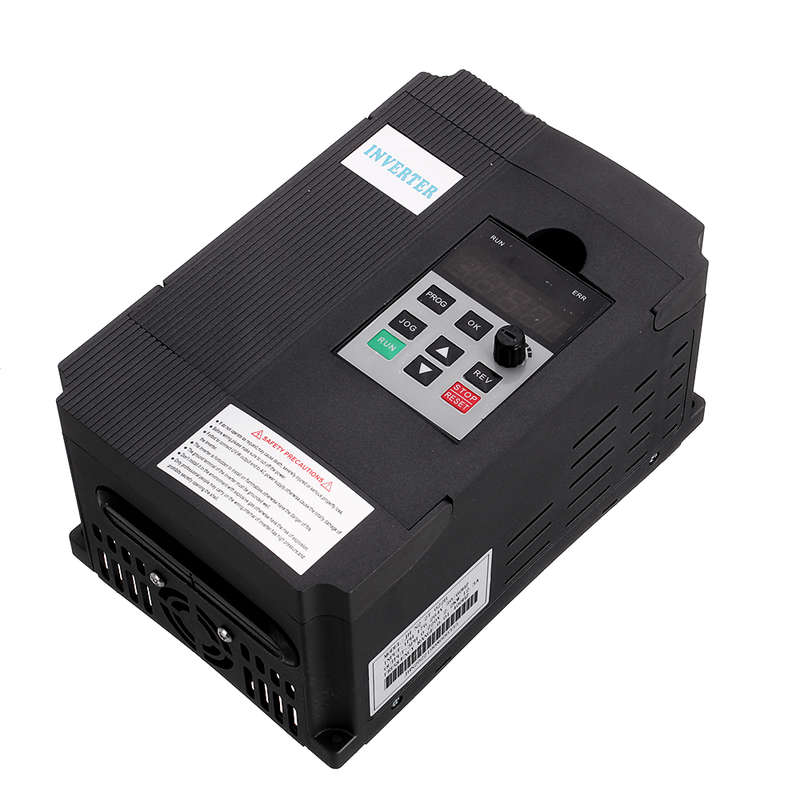

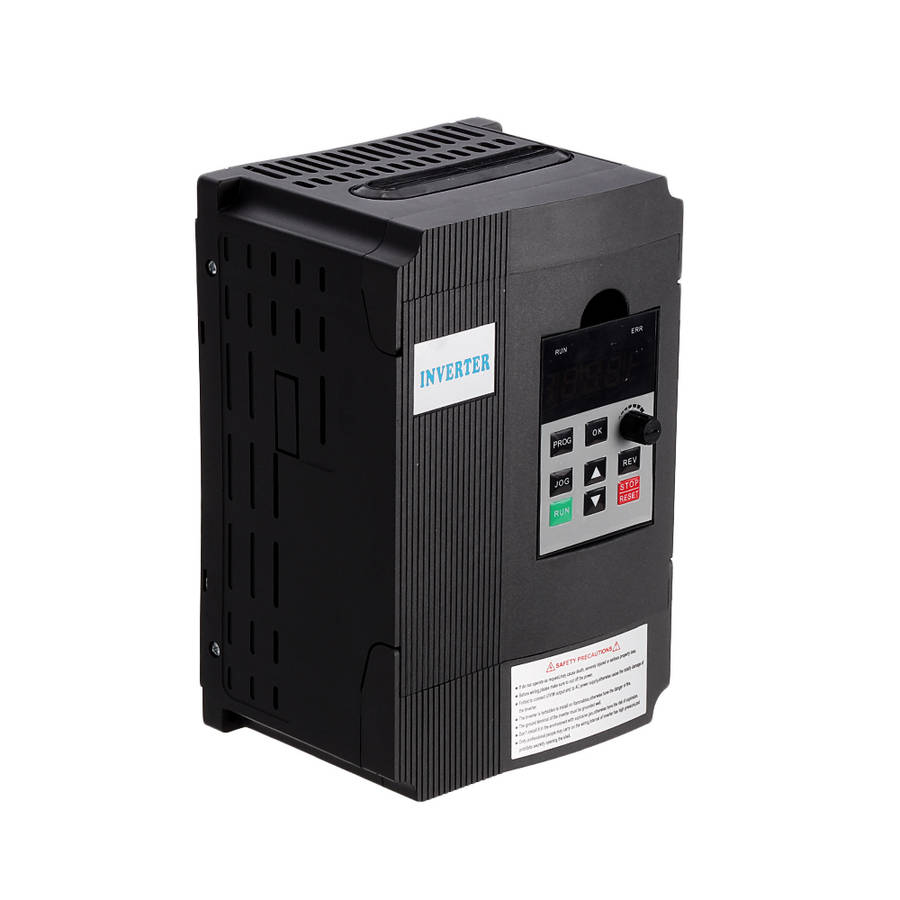

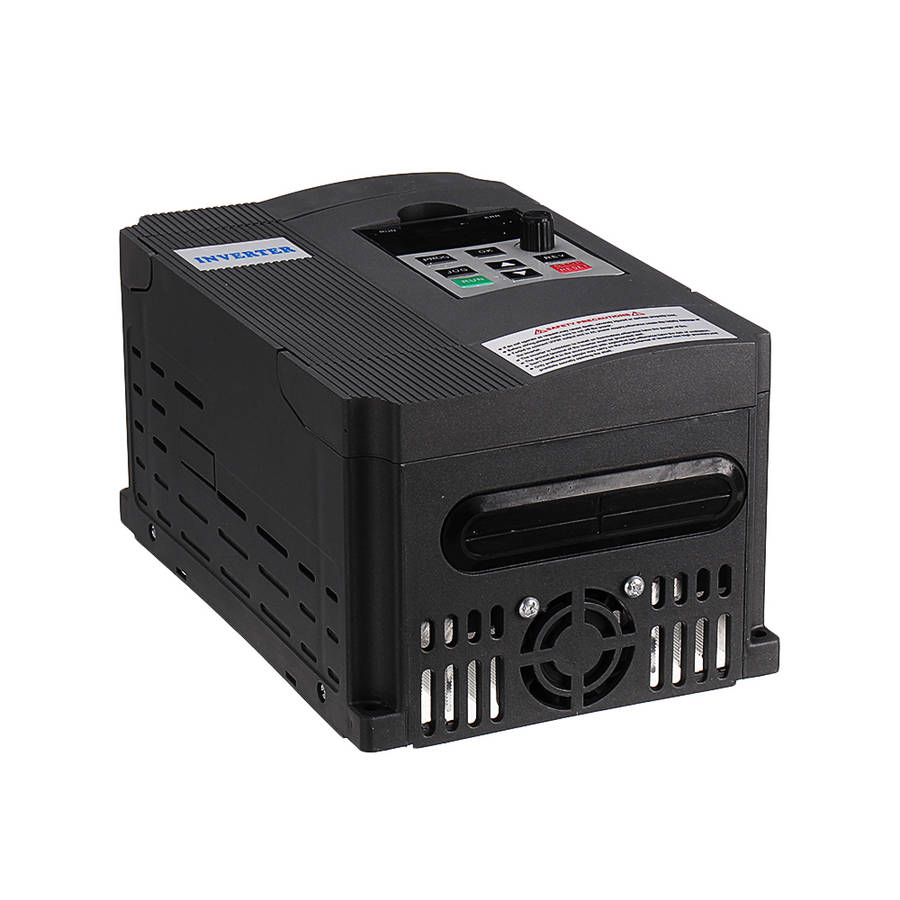

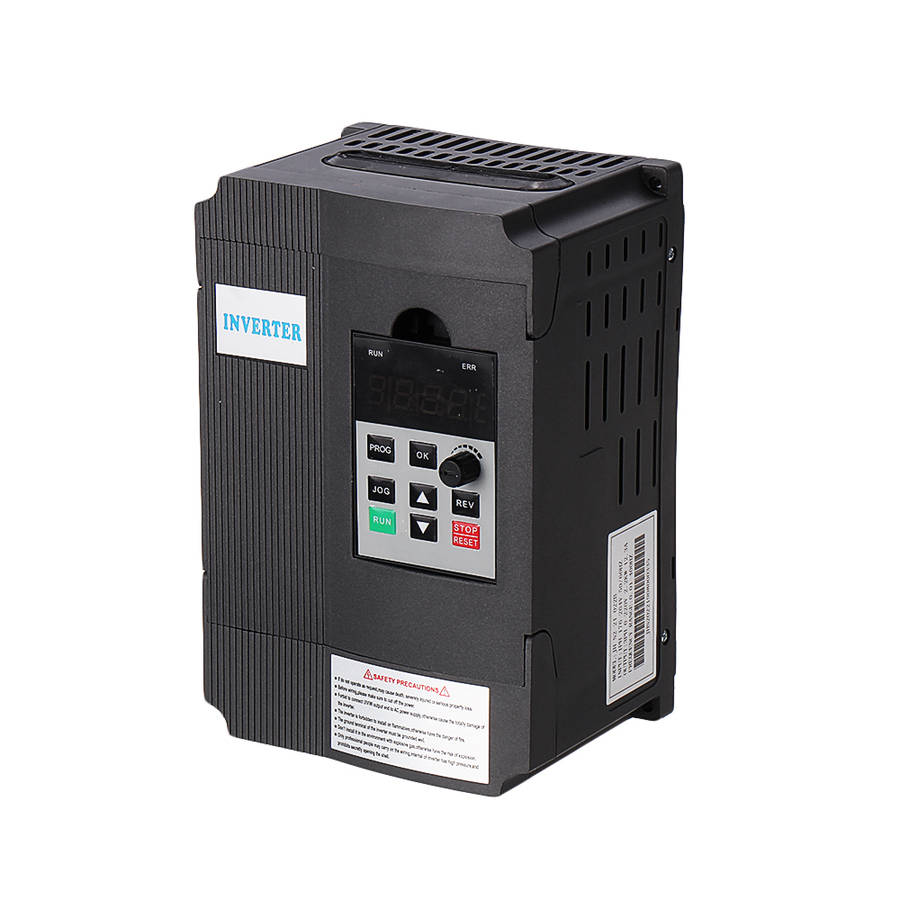

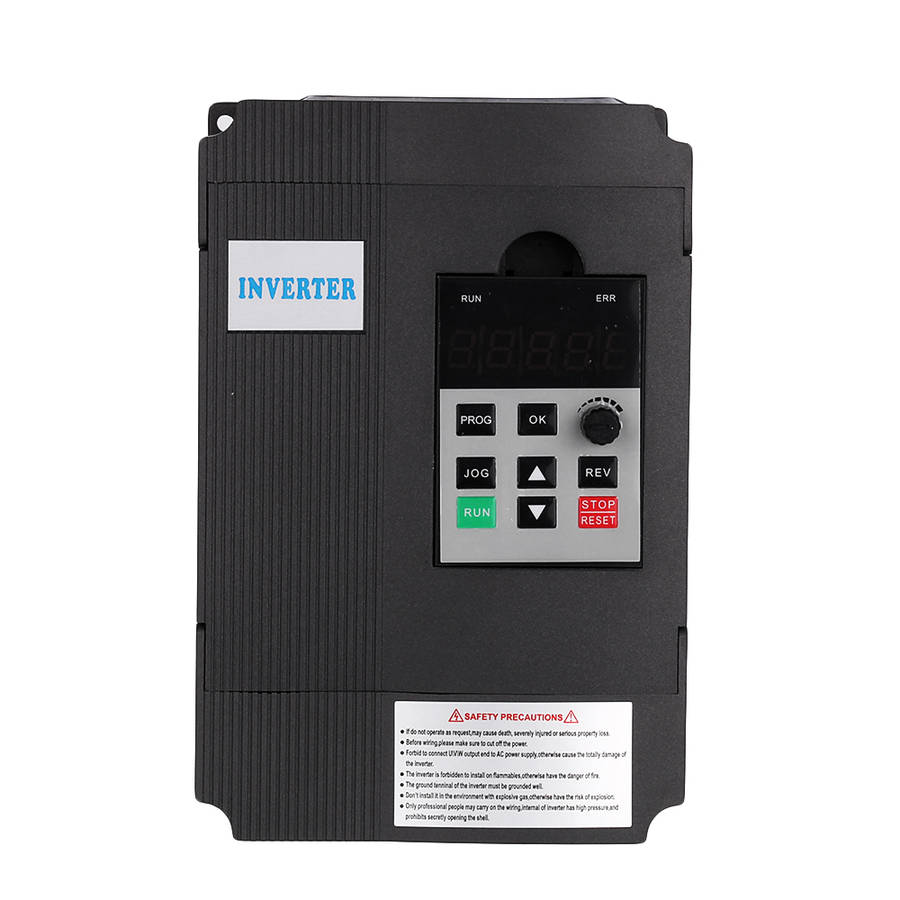

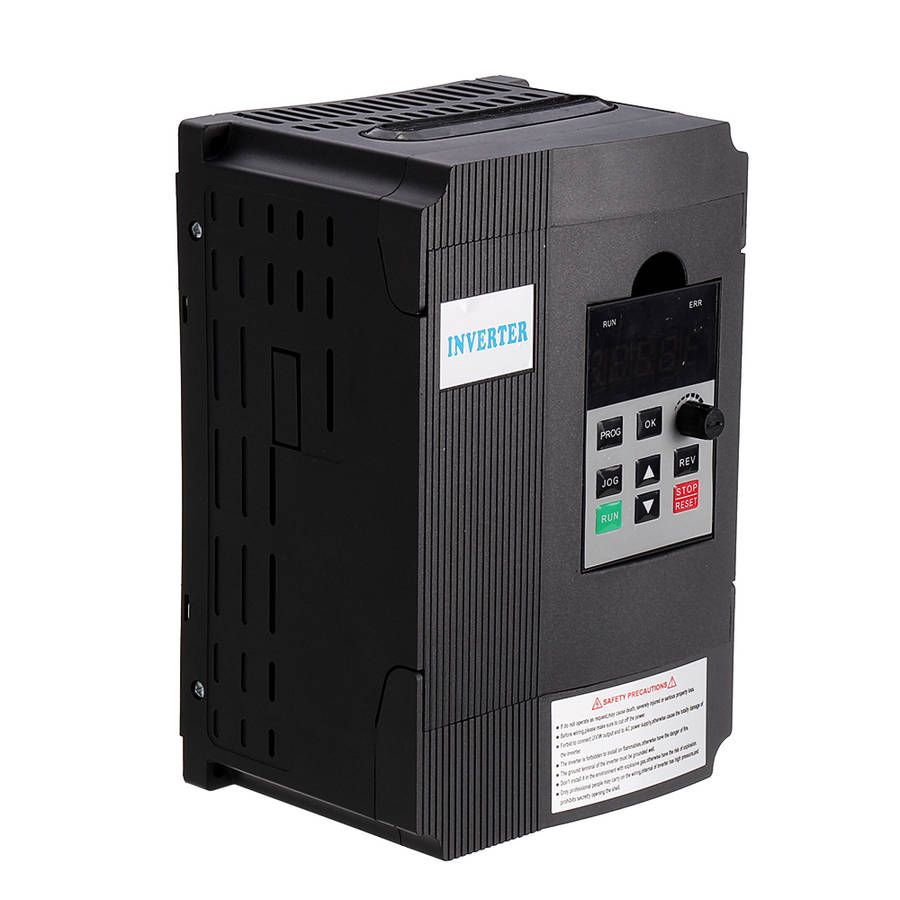

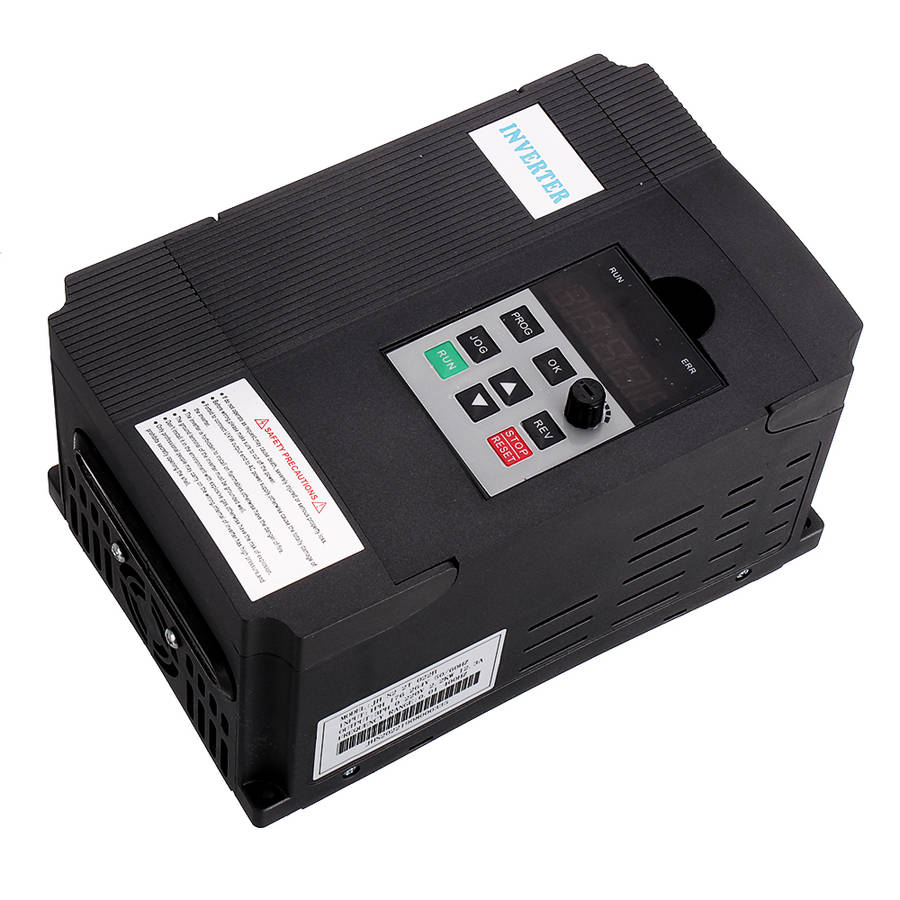

Name:Variable Frequency Inverter
Input: 220V
Output voltage: 380V
Output frequency: 50Hz
Motor power :0.75kw/1.5kw/2.2kw
Rated current :20A
Feature: ★Inverter built-in temperature detection ★Inverter comes with multi-function relay transmission, PID function, constant pressure water supply function. ★The external controller can input 0~5v/0~10v analog voltage input and 0~20ma current signal input to realize stepless speed control.
★The inverter has a quick start and stop response. The low speed torque is large. Immediately stop the short circuit to protect the host (short circuit protection)

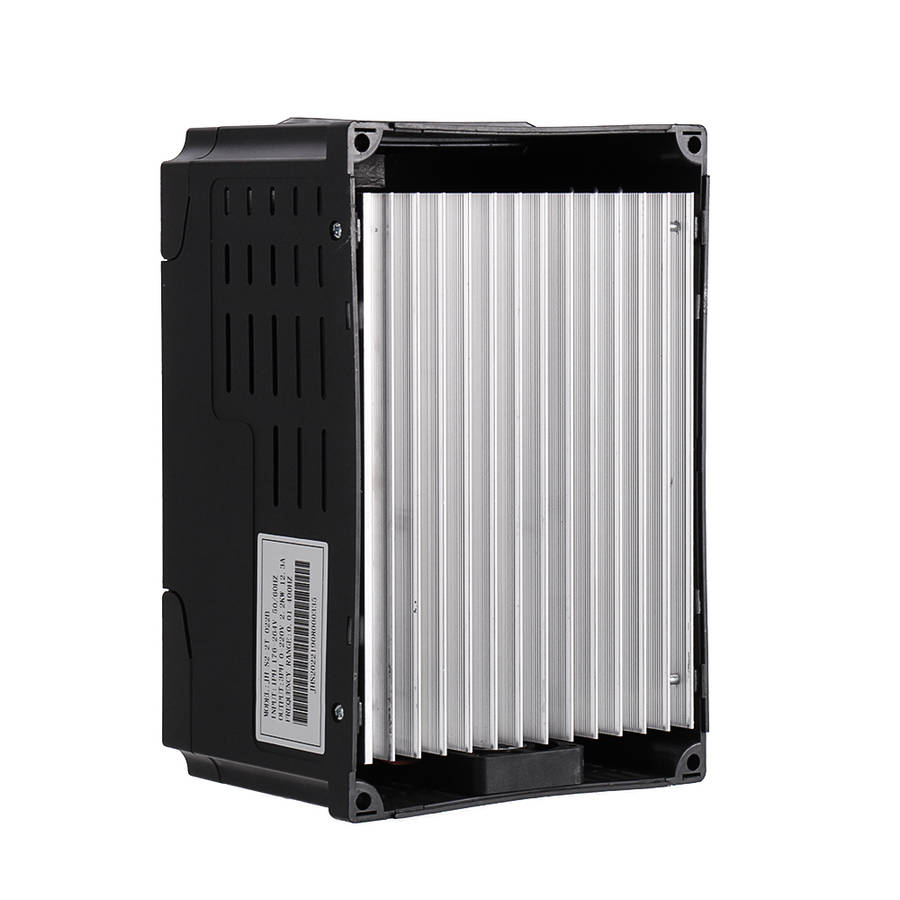

★The internal protection function has undervoltage, overvoltage, overcurrent, overheating, etc. The internal internal cooling function has lower requirements for the external environment.
Danger:
1. Before wiring, make sure the input power is cut off.The risk of elecric shock and fire.
2. The need for wiring to the ectrial engineering professionals.The risk of eletric shock and fire.
3. The ground terminal must be grounded.The risk of eletric shock and fire.
4. After the emergency stop terminal is connected, be sure to check theoperation is valid.
Risk of injury. (Wiring is the responsibility borne by the user)
5. Do not touch the output terminal, an output terminal of the inverter must notbe connected with the housing, to avoid short circuit between the output terminals.
Risk of eletric shock and cause a short circuit.
Notice:
1. Make sure the main AC power supply and the rated voltage of the inverter are the same. Risk of injury and fire.
2. Do not perform voltage withstand tests on the drive. It can cause damage to the semiconductor components and the like.
3. Press the wiring diagram to connect the braking resistor or braking unit.There are a fire hazard.
4. Tighten the terminal with the specified torque screwdriver.There are a fire hazard.
5. Do not conneet the power cable to the output U, v, w terminals.
Voltage applied to the output terminals may cause internal inverter damage.6. Do not phase-shifting capacitor output circuit.It can cause internal inverter damage.
7. Do not connect an electromagnetic switch, magnetic contactor to the outputcircuit. Inverter running with load, the electromagnetic switch and electromagneticcontactor operation inrush currents can cause drive over-current protection circuitoperation.
Package Included:
1 X Variable Frequency Inverter
