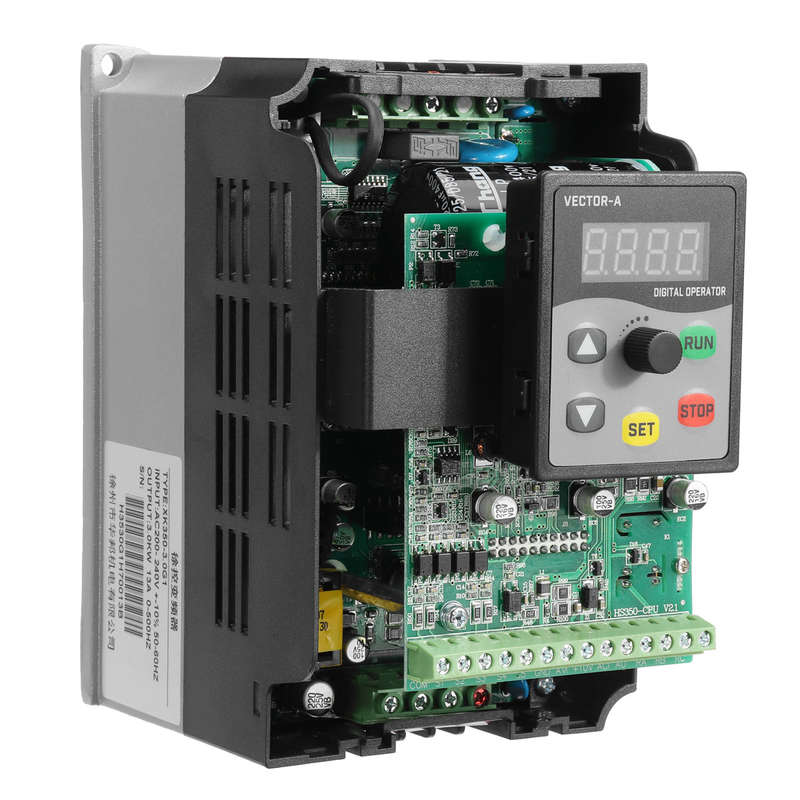

Specifications: Name: Variable Frequency Inverter Model: LK350-3.0G1 Color: black Input: 1PH AC 220-240V±10% 50-60Hz Output: 3PH 0-500Hz Output: 11.5A
Power: 3KW Control Method: voltage vector Braking Resistor: 100
WANT TO FIND MORE INFORMATION, PLEAE ~~ Features: -Built-in PID control function, can easily constitute a simple automated control system.
-Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on. -Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on. -Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.
Safety Precaution: - Do not arbitrarily reform the inverter.
- Do not do the voltage withstand test on the inverter.
- Do not connect the contactor with the output circuit.
- When power is on, do not change the wiring and terminal.
- Do not connect the power to the U, V, W output terminals. - Before wring, please make sure that the input power is off.
- The grounding terminals must be connected with the ground.
- Please connect the brake resistor according to the wiring diagram. - The wring work should be operated by the professional electrical engineer. - Cut off the main circuit power before doing some check and maintain work. - Having paused circuit wiring emergently, please make sure that the check is effective.
- Do not touch the terminals of inverter, which are very dangerous because there is high voltage on them.
- Confirm that the operation signal is cut off. Before reset the alarm device,or the inverter may start suddenly. - Please check whether the voltage of the AC main circuit power is consistent with the rated voltage of the inverter. - Mare sure to install a protection cover before power-on. When removing the cover, be sure to make the power off. - Do not connect the output wire of the inverter with the shell, and pay attention that the output wire should not be short-circuited. - If you want to reset the inverter with the retry function, do not get close to the mechanical equipment, because the inverter will restart suddenly when the alarm stops.

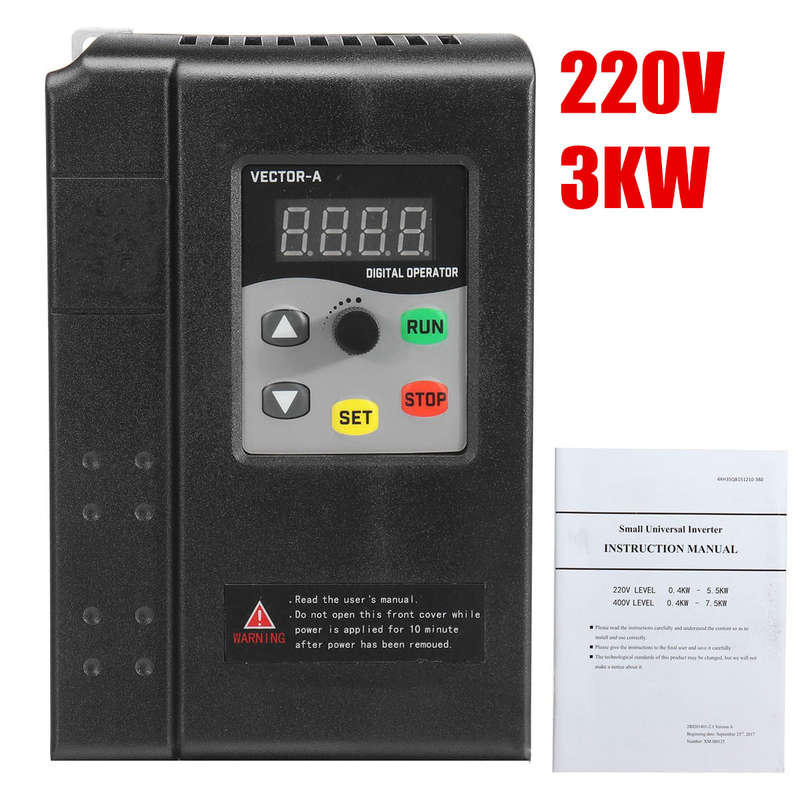

Package Included: 1 x Variable Frequency Inverter 1 x Manual
