220V 800W ER11 Water Cooled Spindle Motor, VFD, Clamp, Collets, Bits, Water Pump

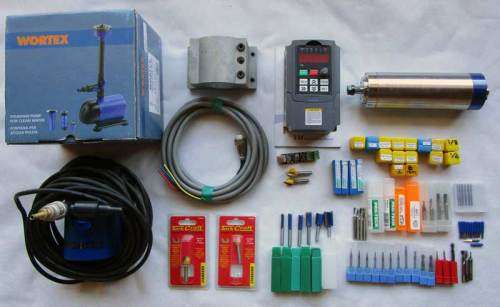

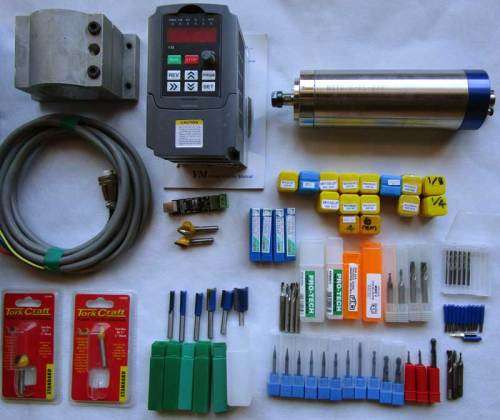

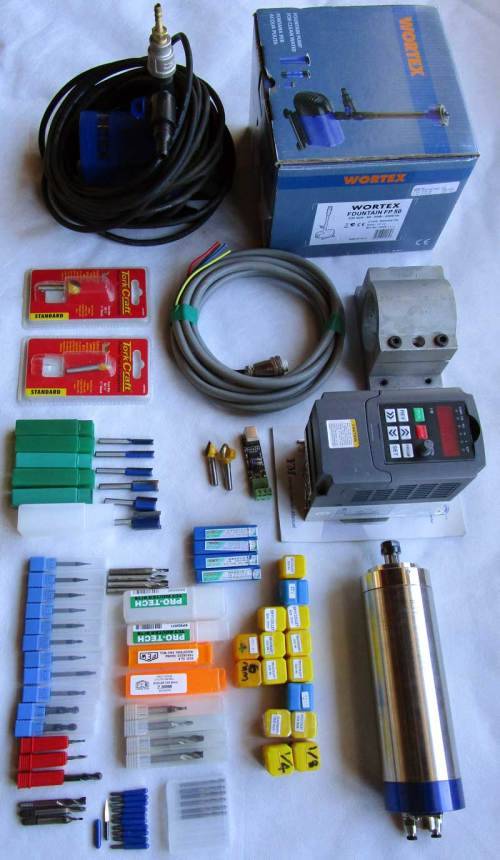

220V 800W ER11 Water Cooled Spindle Motor with 4 bearings and 0.8kw VFD Inverter Frequency Drive & 65mm Aluminium Clamp, Shielded spindle connection cable, a USB to RS485 converter, collection of Bits and Collets.

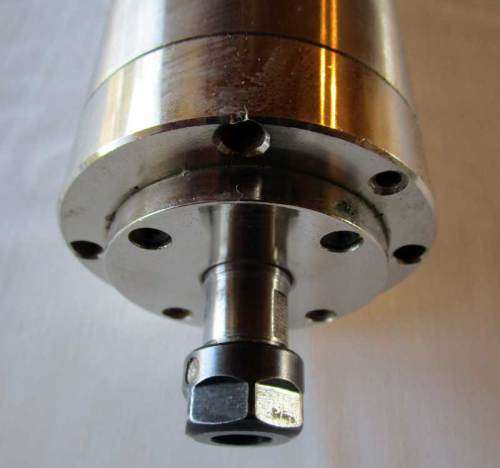

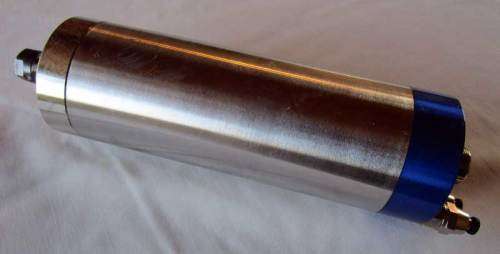

1 x 800w ER11 Water Cooled Spindle 4bearings 65 x 195mm

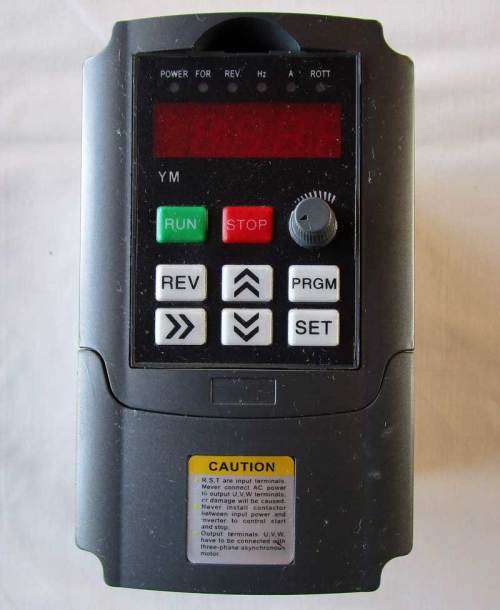

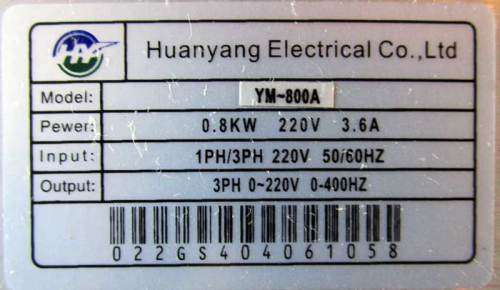

1 x 220v 0.8kw VFD/Inverter

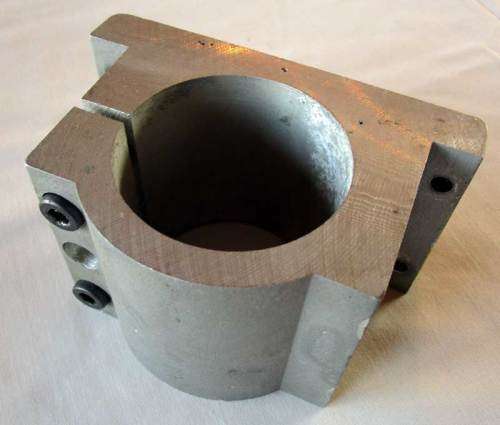

1 x 65mm mount bracket

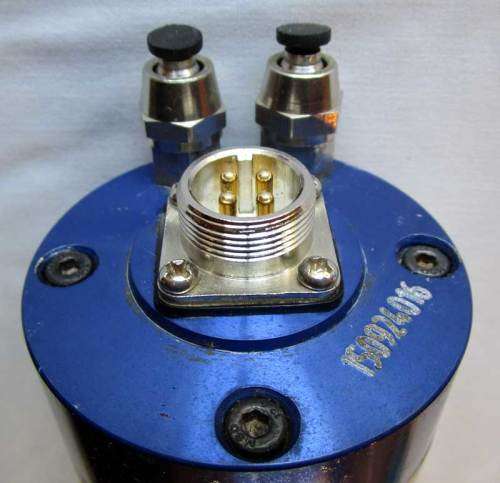

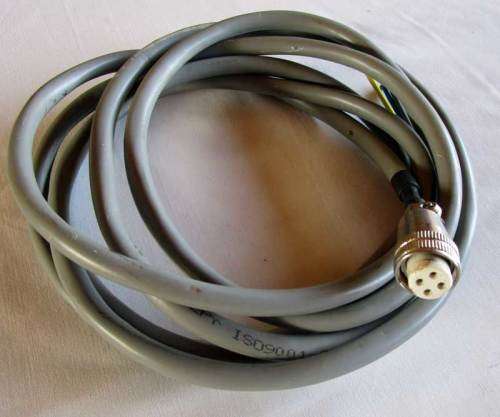

1 x Shielded 4 core cable

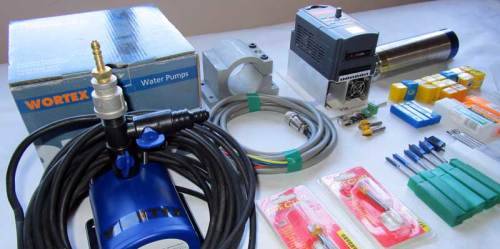

1 x Water Pump

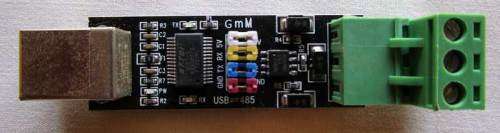

1 x USB to RS485 converter to control VFD from a PC (On/Off/Speed)

15 x ER11 Collets - Metric and Imperial

Kit also includes a wide assortment of end mills, ball nose bits, V bits, round and straight bits.

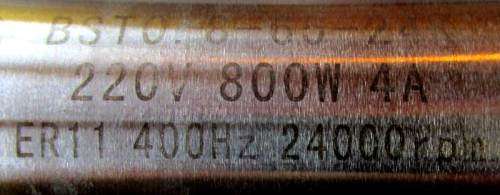

Specifications of Spindle:

Size: 65x195mm ( Body diameter:65mm; Length:195mm )

Speed control through 3-phase output VFD inverter

Cooling: Water cooling

Power: 0.8kw (1HP=0.735kw)

Voltage: 220vAC

Frequency: 0-400Hz

Speed: 0-24000rpm

Runout Off: 0.01mm

4pcs fully sealed angular contact ball bearings

Bearing Type: 2×7002C P4 DT & 2 ×7000C P4 DT



15 x ER11 Collects included in kit:

1 x 2mm, 1 x 2.5mm, 2 x 3mm, 3 x 4mm, 3 x 6mm, 1 x 7mm, 2 x 1/8 inch, 2 x ¼ inch

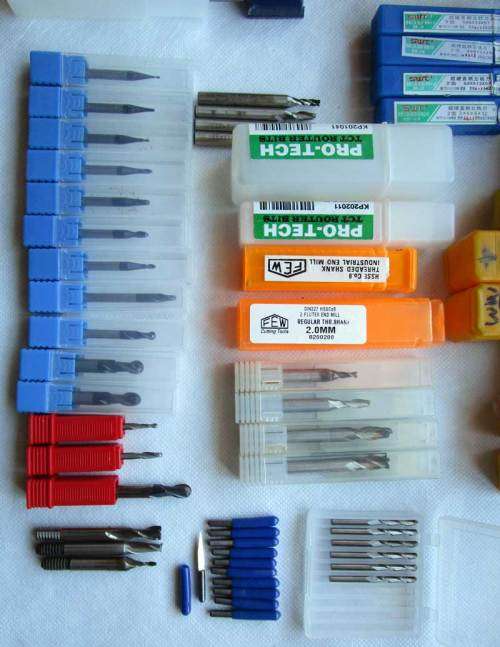

CNC router bits (mostly new/unopened) also included:



6 x 1/8 Inch Shank 2 Flutes Carbide Ball Nose End Mills 17mm

1 x 1mm HRC45 2 Flutes Ball Nose End Mill Nitrogen Coated

11 x 0.1mm 15 Degree Titanium Coated Carbide Flat Bottom Engraving Bits

2 x 1.5mm HRC45 2 Flutes Ball Nose

2 x 2.0mm HRC45 2 Flutes Ball Nose

2 x 3.0mm HRC45 2 Flutes Ball Nose

2 x 4.0mm HRC45 2 Flutes Ball Nose

1 x 4.0mm 2 Flute End Mill

1 x 3.0mm 2 Flute End Mill

1 x 6.0mm 4 Flute End Mill

1 x 6.0mm 2 Flute End Mill

1 x 5.0mm 2 Flute End Mill

1 x 6.0mm 2 Flute End Mill

1 x 5.0mm 2 Flute End Mill

1 x 4.0mm 2 Flute End Mill

1 x 3.0mm 2 Flute End Mill (worn)

1 x 2.0mm Solid Carbide 2 Flute Ball Nose

1 x 3.0mm Solid Carbide 2 Flute Ball Nose

1 x 6.0mm Solid Carbide 2 Flute Ball Nose

1 × ¾ inch straight router bit

1×5/8 inch straight router bit

1 x ½ inch straight router bit

1×5/16 inch straight router bit

1×3/8 inch straight router bit

1 × ¼ inch straight router bit

1 x 90 degree V carve router bit

1 x 60 degree V carve router bit

1 x 5/8 inch core box bit

1 x 1/8 inch core box bit



Main Application:

Engraving of wood, plywood, bamboo, PCB, PVC, plastics/ABS, can also engrave on gold, silver, copper, aluminium (soft metal surface engraving only).
