220VAC Relay With Base For Start-Stop Circuit 220VAC Relay With Base For Start-Stop Circuit
220VAC Relay With Base For Start-Stop Circuit 220VAC Relay With Base For Start-Stop Circuit
Sold

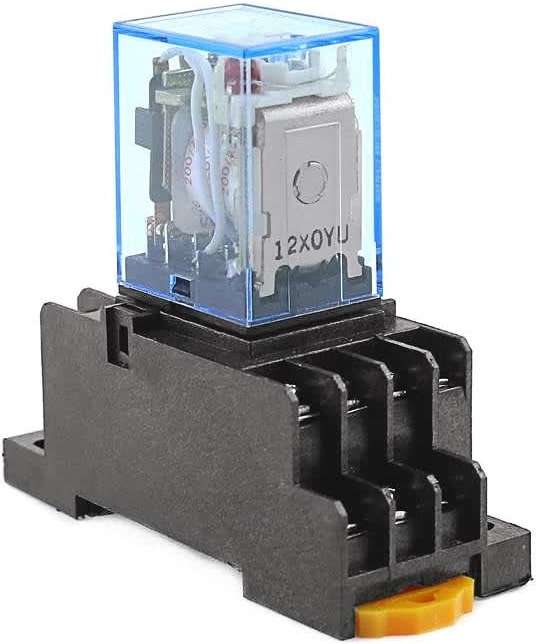

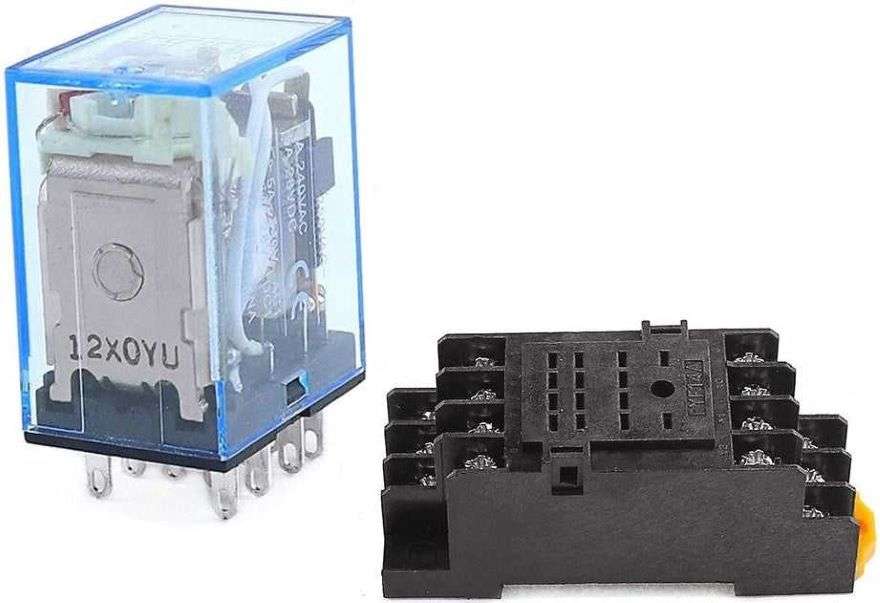

220VAC Relay With Base For Start-Stop Circuit

6 were available / new
R200.74
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
BotShop3155
98.01 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MOD-017
Bob Shop ID
593183641

Working with machinery when you have constant power outages could become dangerous. When the power cuts while you are working and you forget to switch it off it will start running when the power returns. To overcome this you can create a safe start-stop circuit. What this circuit does is, when you want to start the machine you can press start. When you want to shut it down simply press stop. What makes it safe is because when the power fails it shuts itself off and will not start up on its own when the power returns. Meaning that when something is in the way of the machine while power is returned it will be safe.

220VAC Relay With Base Specs:

Action 4PDT
Coil Voltage: 220V AC
Contact Voltage: 5A 240V AC  / 5A 28V DC

Rated current: 10A
Indication: LED Working
Contact material: silver alloy
Rated frequency: 50Hz / 60Hz
Contact type: 4 on 4 off
Action time: less than 25ms
Operating temperature: - 25 C to + 55 C
Pin Quantity 14 Pin
Mounting Rail Type 35mm DIN Rail

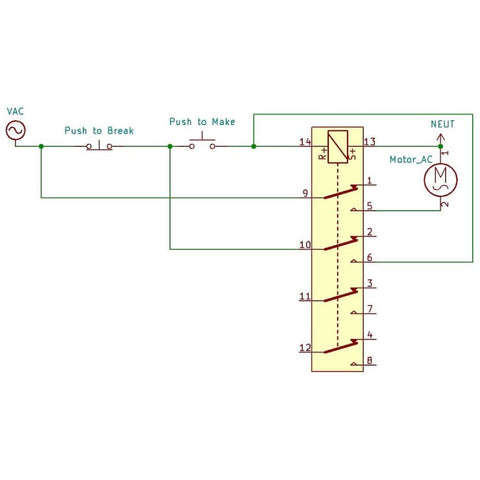

Here is a simple start-stop circuit. You can always add an emergency stop button cutting all power for extra safety.

220VAC Relay With Base For Start-Stop Circuit diagram
