23-in-1 DC Connector Pack | Convert 5v, 12v Router / Access Point / Power Supply DC Tips

23-in-1 DC Connector Pack | Convert 5v, 12v Router / Access Point / Power Supply DC Tips

Description

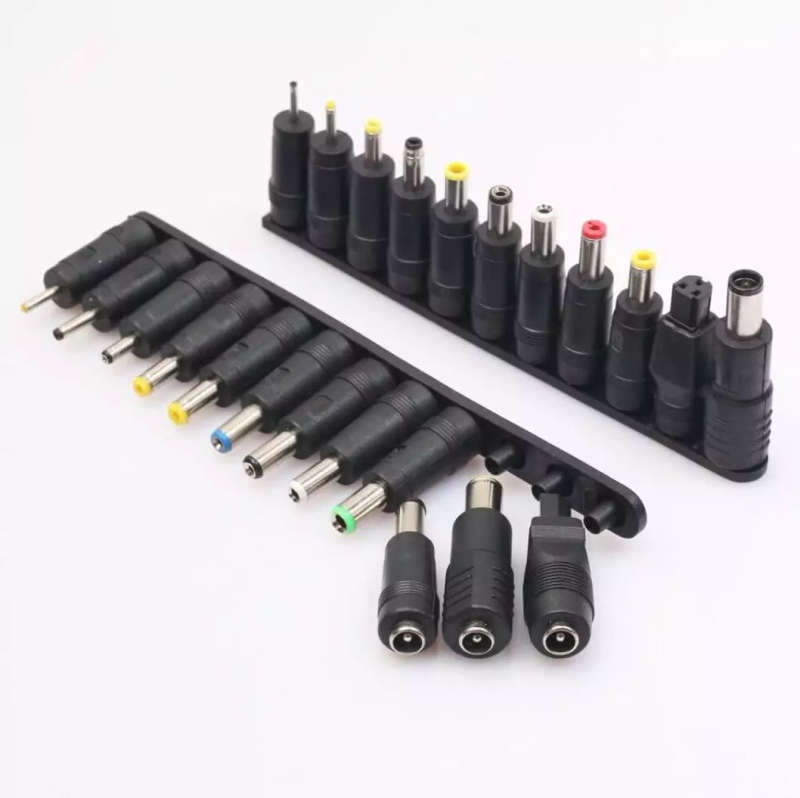

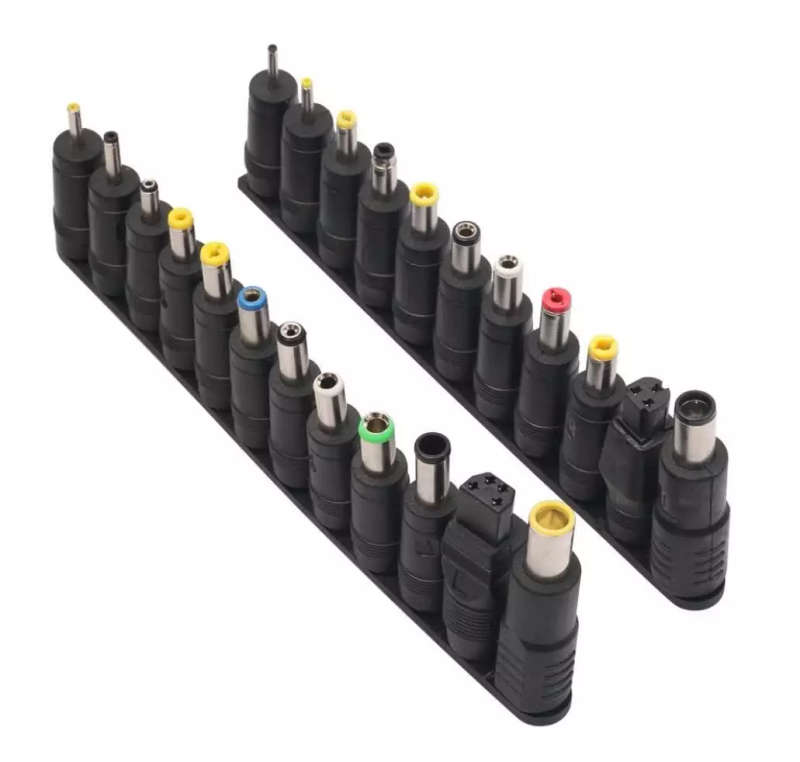

All Adapters Fits most "standard" size power supplies which is 5.5mm Outer Diameter x 2.1mm Inner Diameter such as power supplies for hard drive enclosures, Wi-Fi access points, Routers and HDMI Equipment. It adapters from any 5.5mm OD x 2.1mm ID Power supply to the 23 different DC Plugs Below.

The set is used to convert standard 5.5mm size power supplies DC Connectors to another type of DC Connector

DC Adapters Specifications (Outer Diameter X Inner Diameter):

All Adapters FEMALE 5.5mm Outer Diameter, 2.1mm Inner Diameter on the other side:

• 2.35mm x 0.75mm
• 2.5mm x 0.7mm (Yellow Tuning Fork Type)
• 3.0mm x 1.1mm
• 3.5mm x 1.35mm
• 4.0mm x 1.7mm (Yellow Tuning Fork Type)
• 4.0mm x 1.7mm
• 4.8mm x 1.7mm (Yellow Tuning Fork Type)
• 5.0mm x 2.5mm
• 5.0mm x 3mm
• 5.5mm x 1.5mm
• 5.5mm x 1.7mm (Yellow Tuning Fork Type)
• 5.5mm x 1.9mm
• 5.5mm x 2.1mm
• 5.5mm x 2.1mm (Yellow Tuning Fork Type)
• 5.5mm x 2.1mm (Blue)
• 5.5mm x 2.5mm (Yellow Tuning Fork Type)
• 5.5mm x 2.5mm
• 6.3mm x 3.0mm (Green)
• 6.4mm x 4mm
• 3-Hole Dell Laptop DC Tip
• 4-Hole Toshiba Laptop Tip
• 7.4mm x 5.0mm
• 7.9mm x 5.5mm
