Description;
-The power automatic transfer switch is of noiseless operation, energy saving, easy installation, simple operation, and reliable performance
-Automatic transfer switch is designed with a reasonable structure, small size, beautiful appearance, equipped with protective cover, the power supply is more safe and reliable
-Our 63A transfer switch is especially suitable for office buildings requiring fire fighting. When one power goes wrong, it will automatically connect one to ensure a normal power supply of load circuits

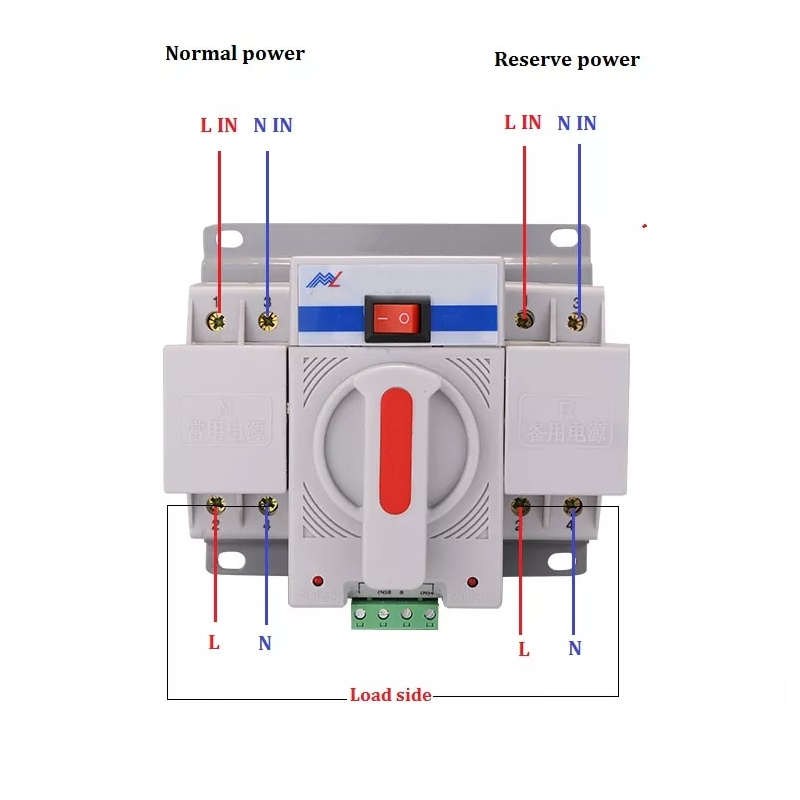

-This switch switches normal grid power first. If normal grid power is on, the switch will switch to normal grid power. If normal grid power is off, and reserve power is on, the switch will switch to reserve power
-Appropriate structure, small size, equipped with protective cover, the power supply is easy to install and reliable
-This automatic switch not only supports auto mode, but can also be operated by a manual button, which easy operation, and reliable performance.
Wide applications: this switch can be used for private and public places, especially suitable for office buildings and public places that require fire fighting
Features;
-It is a terminal-type automatic transfer device. It's suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz
-Rated voltage 230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase), it will automatically connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits
-Perfect for off-grid power systems like solar power or generator systems
-When one power system turns off, the switch will automatically connect to an alternative
The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
Specifications;
-Package D=Weight; 1200g
-Package Dimensions; l=16cm x w=14cm x h=13cm
-Color; White
-Electrical Appliances Class; CB
-Use Category; AC~33B
-Tripping Current; 5~10In (Type C), 10~15In (Type D),
-Rated voltage Ue; 230V (2P),380V (3P or 4P)
-Rated frequency; 50/60Hz
-Rated short circuit connecting ability Icm (Peak); 9.18KA, 6.615KA
-Rated short circuit breaking ability Icn (effective value); 6KA, 4.5KA
What's in the box
1 x 230V Portable High-Performance Dual Power Automatic Transfer Switch
