24 Camera Surveillance Set - 12 Indoor Dome Cameras, 12 Outdoor Cameras, H264 DVR, 1TB

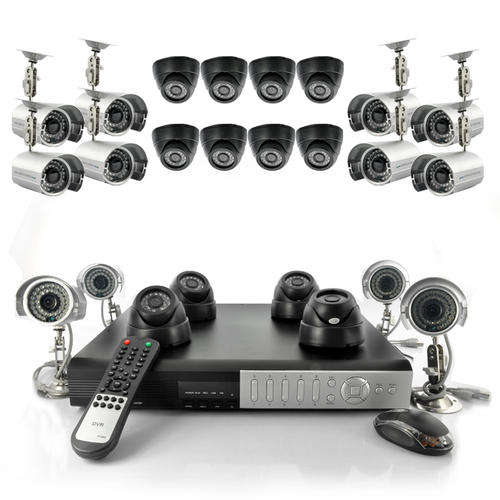

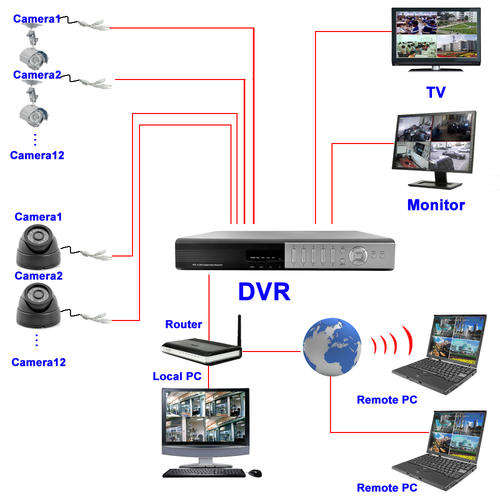

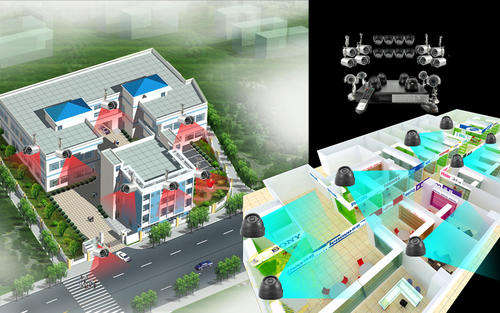

Complete surveillance kit with 12 indoor dome cameras, 12 outdoor security cameras and a 24 channel DVR with 1TB Hard Drive for complete outdoor and indoor coverage of your home or business. Containing everything you need to setup a CCTV security system at your home or office, this kit ensures a full coverage of booth indoor and outdoor property and even features internet connectivity for remote access through your PC or Mobile Phone.

This versatile DVR Security Set is your professional and high performance audio and video solution for home and office surveillance. Record the feed of the 24 cameras 24/7 through the included DVR with 1TB Hard Drive, and you’ll always have every angle of your property covered. Set up the DVR to display the video footage of a single camera or watch all 24 cameras at the same time!

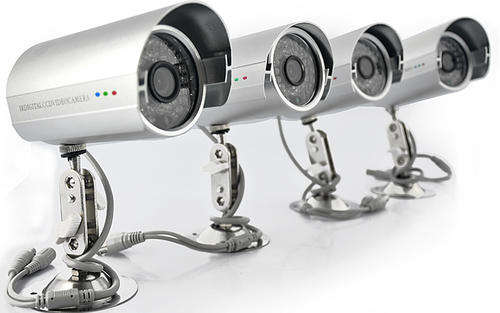

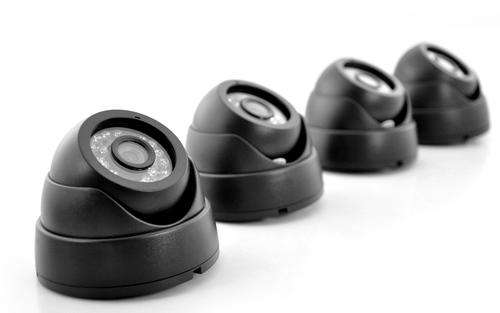

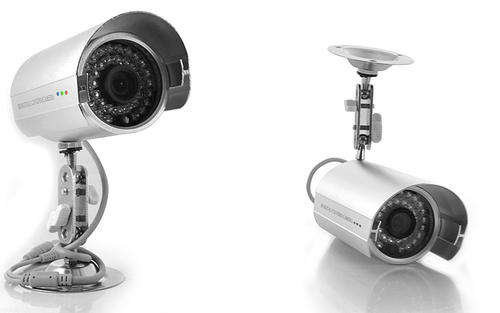

The 12 outdoor cameras are each equipped with 36 infrared LEDs for an optimal night vision range and are crafted out of durable metal, providing excellent protection against rain, snow and sleet. The 12 indoor dome cameras each feature 24 infrared LEDs and offer a 60 degree viewing angle. All 24 Cameras record in 420TVL resolution and their feed can be recorded with the included 1TB DVR or viewed remotely on your Android, Windows, Blackberry, Symbian S60 or iPhone.



At a Glance...

• 1TB 24 Channel DVR
• 12 Indoor Dome Cameras
• 12 Outdoor Weatherproof Cameras
• H.264
• 420TVL
• Nightvision on all Cameras

• Image Compression: H.264
• Audio Compression: ADPCM
• DisplayResolution (D1): 704x576(PAL), 704x480(NTSC)
• Recording Resolution (CIF): 352x288(PAL), 320x240(NTSC)
• Image Control: 6 Grade Adjustable
• Motion Detection
• Local playback: 1CH-24CH Simultaneously Playback
• Operation System: Linux
• Operation Interface: USB mouse, Panel Button, and Remote Control
• Languages: English, Simplified Chinese

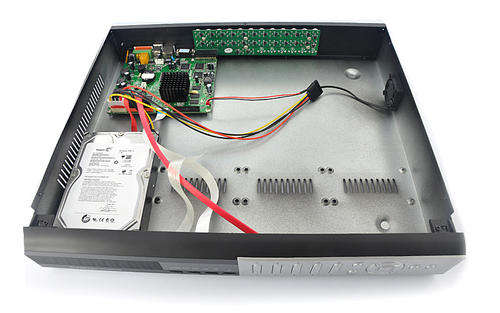

• 2x SATA Hard Disk Drive supports up to 2TB each (1TB Included)

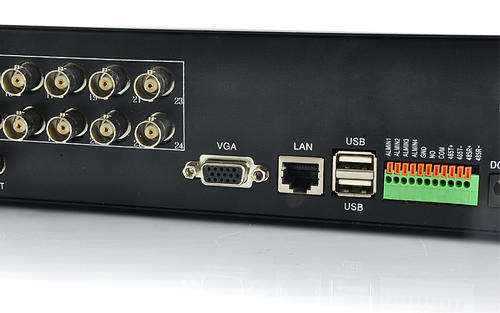

• Video input: 24CH BNC
• Video output: 1CH BNC,2CH VGA, 1CH VGA
• Audio input: 4CH RCA
• Audio output: 1CH RCA
• Alarm input: 4CH
• Alarm output: 1CH
• USB Port

• Ethernet: RJ-45 Interface 10/100Mbps
• Supported Protocol: HTTP,SMTP, FTP, DDNS, PPOE
• Mobile phone browser: Windows Mobile, Symbian S60, iPhone, Blackberry, Android

• Image sensor: 1/3 SONY CCD Camera
• Lens: 6mm, F=2.0
• Night Vision: 36 IR LED
• Minimum Illumination: 0.1 Lux
• Viewing angle: 45 degree
• Horizontal Definition: 420 TV Line
• Weatherproof

• Image sensor: 1/3 SONY CCD Camera
• Lens: 3.6mm, F=2.0
• Night Vision: 24 IR LED
• Minimum Illumination: 0.1 Lux
• Viewing angle: 60 degree
• Horizontal Definition: 420 TV Line

• DVR Dimensions: 43 x 380 x 70mm (L x W x D)
• Outdoor Camera Dimensions: 12 x 70 x 70mm (L x W x D)
• Indoor Dome Camera Dimensions: 9 x 9 x 6mm (L x W x D)
• DVR Weight: 3600g
• Outdoor Camera Weight: 310g
• Indoor Dome Camera Weight: 150g
• destination, and shipping method: please use the checkout to select options and preview shipping price for your total order.

• 12x Weatherproof Camera
• 12x Dome Camera
• 24ch DVR
• 1TB HDD (Product Specific)
• 6x Power supply 12V/4A (Product Specific)
• 6x Power Distributor Cable (Product Specific)
• 24x 18 meters BNC cable (Product Specific)
• 12X Bracket (Product Specific)
• DVR User Manual (Product Specific)
• CD-ROM with User Manual (Product Specific)
• DVR Remote Controller (Product Specific)
• 4 X BNC F+DC5.5 F/BNC F+DC5.5 M (Product Specific)
• Mouse (Product Specific)
