Product information

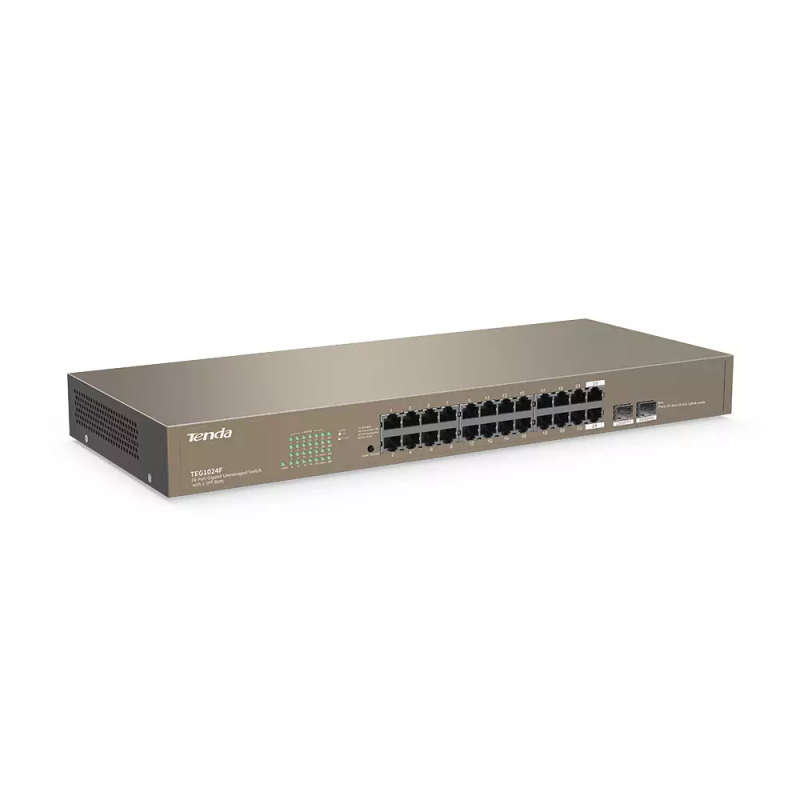

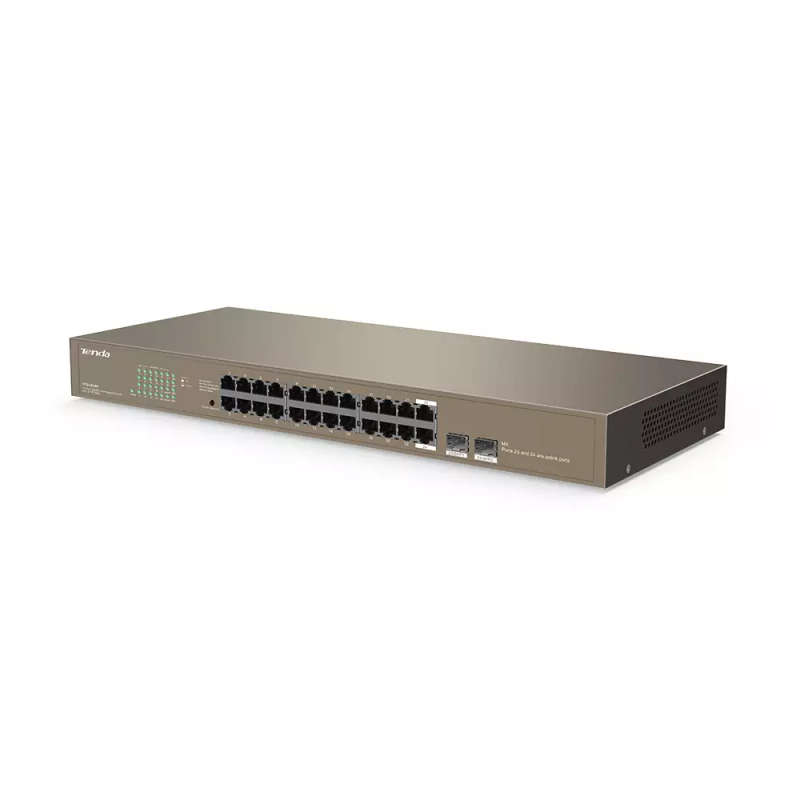

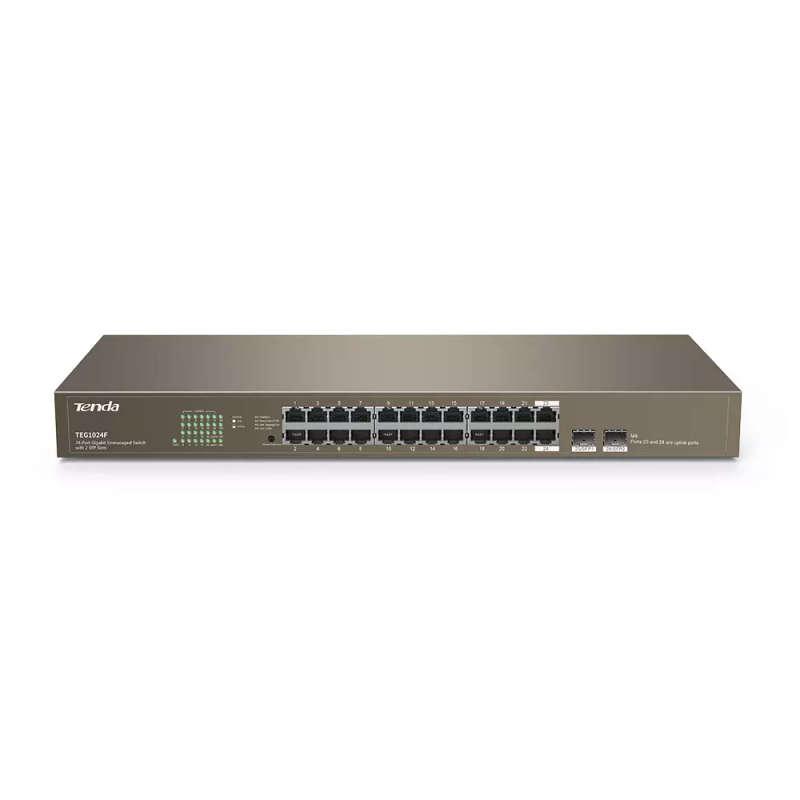

24-Port Gigabit Unmanaged Network Switch with 2x SFP Slots | TEG1024F
Product Features:

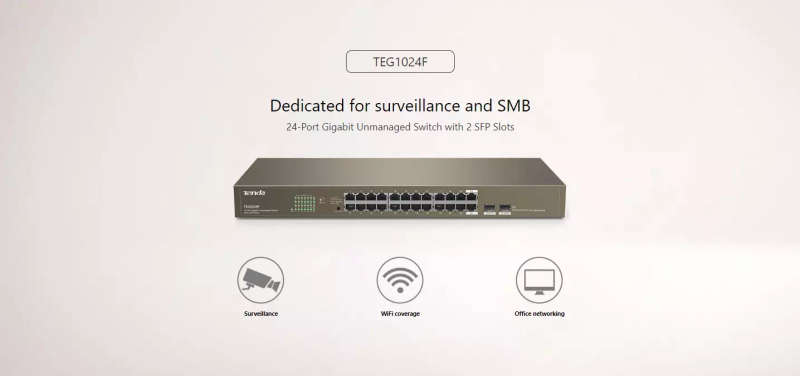

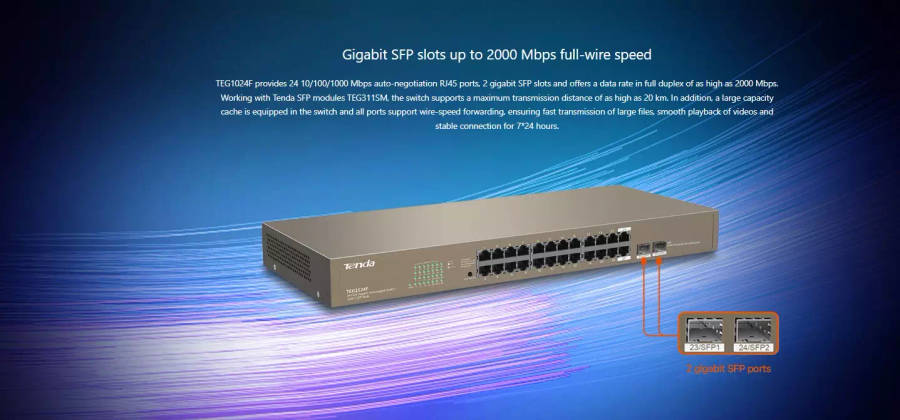

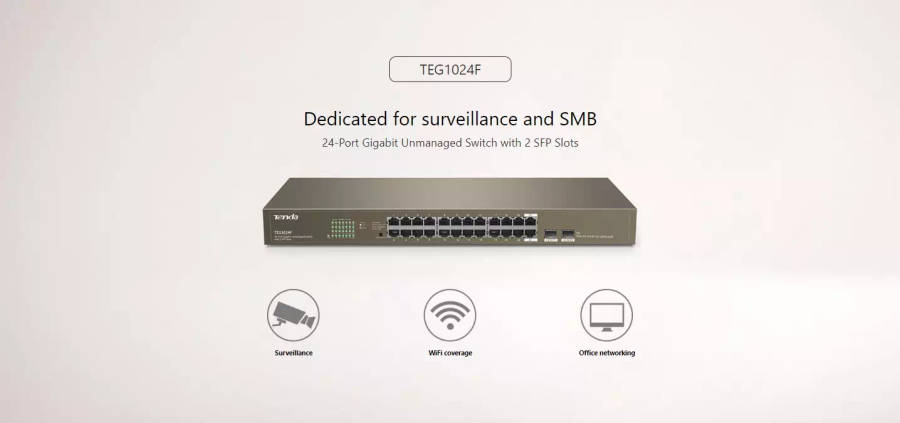

TEG1024F is a 24-port gigabit rackmount switch providing easy-to-use, cost-effective and fast network for IP surveillance projects, offices, workgroups and small and medium-sized enterprises. With 2 gigabit SFP combo ports used to connect to Tenda optical modules, it can be used for long distance networking up to 20 km. TEG1024F also offers a data rate in full duplex of as high as 2000 Mbps, ensuring fast transmission of large files and smooth playback of videos.

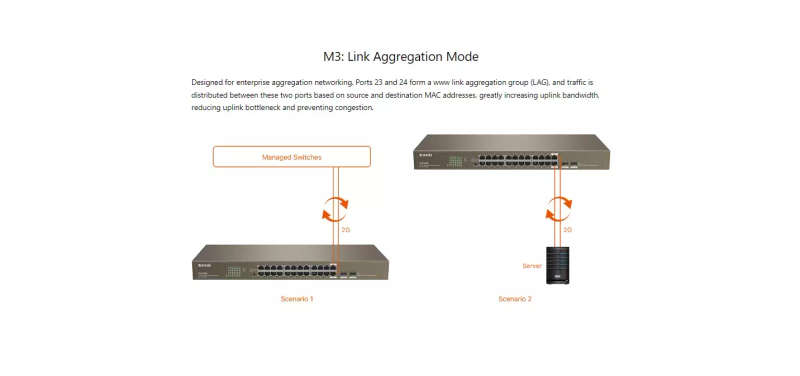

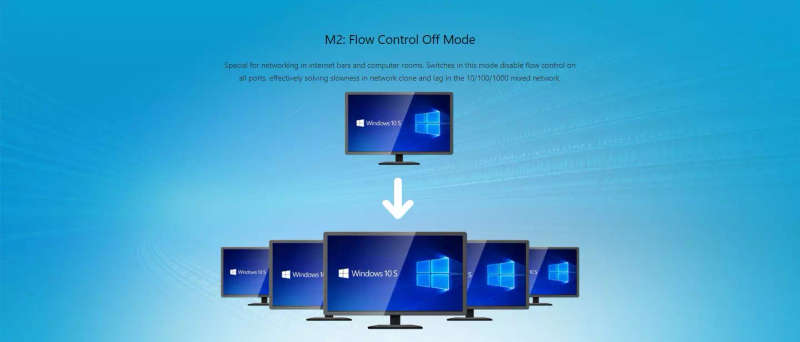

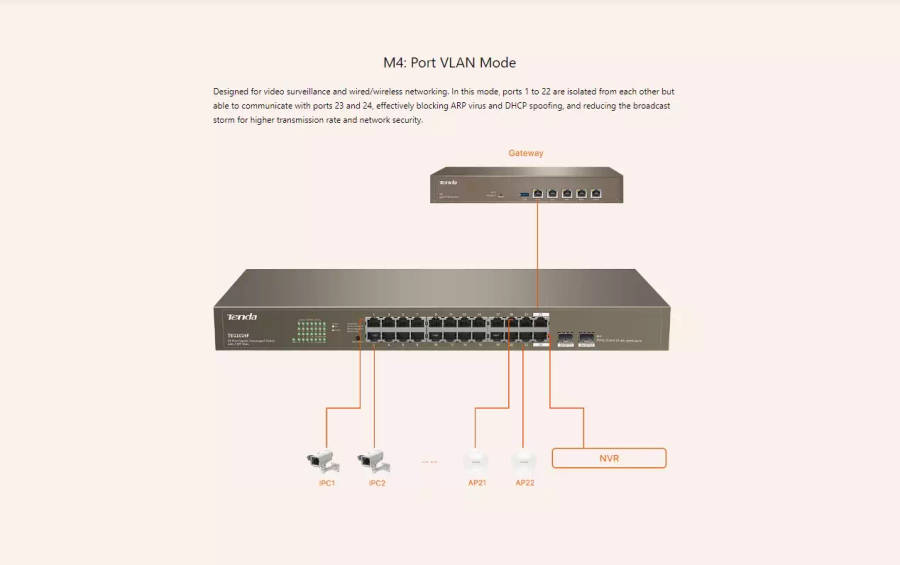

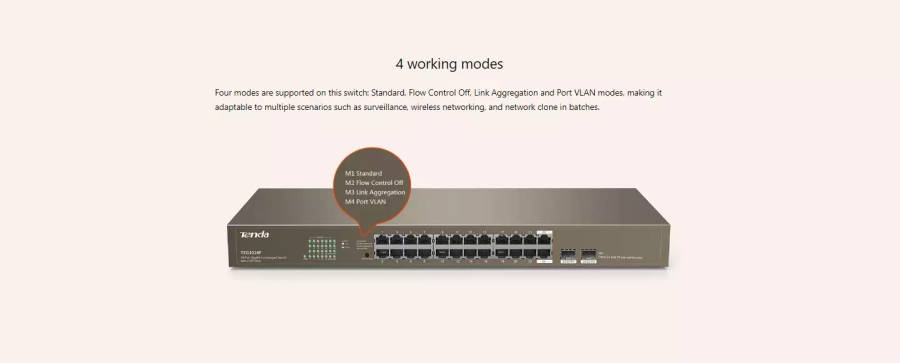

With professional lightning protection circuit, the switch provides 6 kV lightning protection for all the RJ45 ports and the power module, ensuring stability and reliability of the switch. TEG1024F allows users to change its work modes among standard (default mode), flow control off, link aggregation and port VLAN, fitting multiple network environments, making it the perfect choice for you to extend or upgrade your high-speed, stable gigabit wired network at long distance.
- Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- LED Indicator: 1* Power,24* Link/Act,4*Mode
- Interfaces: 24*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) 2*1000 Base-X SFP ports (Combo)
- Transmission media: Recommended: CAT5/5e UTP or better
- Fan quantity: N/A
- Dimension: 440.0mmx178.0mmx44.0mm
- Material: Metal
- Level of protection: Lightning protection for uplink ports: 6KV, Lightning protection for power: 6KV
- ESD: Air discharge: 10kV, Contact discharge: 8kV
- Forwarding mode: Store-and-forward
- Switch capacity: 48Gbps
- Packet forwarding rate: 35.60Mpps
- Buffer: 2Mb
- MAC address table: 8K
- Jumbo frame: N/A
- Power: Input: 100-240V AC 50/60Hz
- Power consumption: Max:<13W
- Mounting: Desktop mounting: support, Wall mounting: support, Rack mounting : support
- Environment: Operating temperature: 0C - 45
- Storage temperature: -40C - 70C
- Operating humidity: (10% - 90%) RH, non-condensing
- Storage humidity: (5% - 90%) RH, non-condensing
- Certification: CE, FCC, RoHS
- Protocols: CDMA/CD
- MAC address learning: Auto-Learning and Auto-Aging
- Functions: M1: Standard mode, the default mode of the switch. In that mode, all ports can communicate with each other.
- M2: Port-based priority mode, ports 1 to 8 have higher priority than other ports, and all ports can co.0mmunicate with each other.
- M3: Port-based VLAN mode, ports 1 to 24 can co.0mmunicate with uplink ports (ports 25 and 26) but cannot co.0mmunicate with each other.
