24 volt low voltage cutout
Sold

24 volt low voltage cutout

New 5 were available
Indicative market price: R800.00
R300.00
63% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
echinacea13
100.00 % Positive ratings
Buyer protection
How you're covered
Returns
Warranty Type: Manufacturer Buyer pays shipping to and from seller for repairs.
Get it now, pay later

Product details

Condition
New
Location
South Africa
Bob Shop ID
225139592

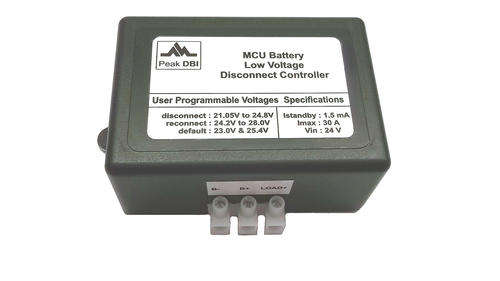

About the cutout
Install this device between a battery and its load and it will automatically protect the battery from excessive discharge by disconnecting the load. A battery, especially a non-deep cycle one, which is run until it is empty or nearly empty of charge will have its operational lifetime reduced and future ability to hold its full rated charge impaired.
The user can program any of 20 disconnect and 20 reconnect values via an external pushbutton. The unit corrects any illegal/faulty programming and shows it. The unit comes preprogrammed with recommended popular default values. These default values are permanently stored in the firmware and can easily be restored by the user. The programming procedures, reconnect voltage table, disconnect voltage table and wiring diagram are described/shown in a comprehensive user instruction manual.
To increase load handling capabilities add an external heavy duty contactor/relay. The cutout will then drive this external contactor/relay which in turn will switch the load.
General information
  • New
  • One year warranty on non-mechanical components
  • Black plastic ABS enclosure
  • Comprehensive instruction manual
  • Made in South Africa
Specifications
  • Micro-processor controlled
  • Dimensions: Width[2.6 inch(65 mm)] x Length[3.7 inch(95 mm) x Height[1.6 inch(40 mm)]
  • Voltage: 24 volt
  • Accuracy better than 1%
  • Relay contact rating: 30 amp (360 watt) max
  • Controller standby current draw: 1.5 milliamp
  • Controller max current draw: 55 milliamp
  • Reverse voltage protected
  • Internally PTC fused (self resetting)
  • Supply input 'spikes' LC filtered and clamped
  • Internal 'watchdog'
