2400W 24V Switched all in one Pure Sine Wave inverter

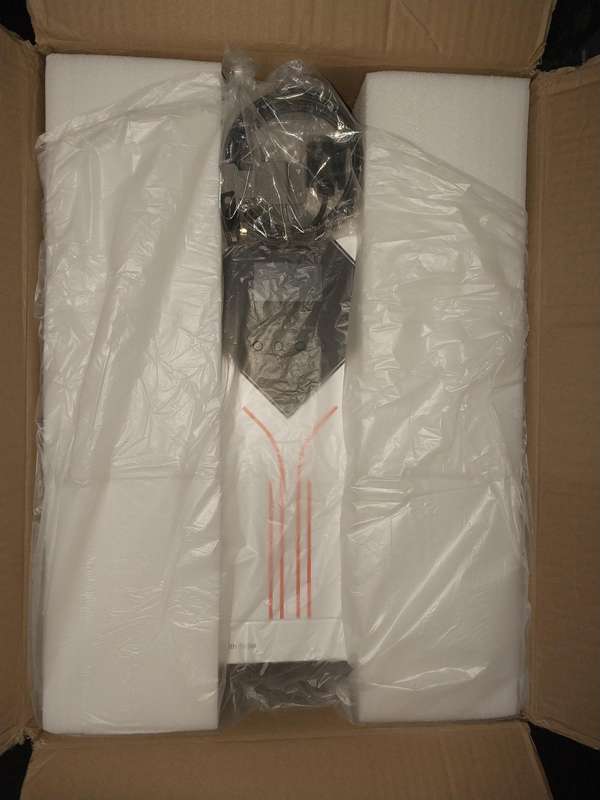

New unused but opened box to test unit.

Switched 3000VA/2400W Off-Grid Inverter (SWD-8913-IN)

Features and Specifications

- Pure sine ware output - 240V L1-L2

- Optional MPPT/PWM solar charge controller 60A/80A/100A/120A

- MPPT Efficiency max 98%

- DC Start & Automatic Self-Diagnostic Function

- High Efficiency Design & Power Saving Mode  to Conserve Energy

- Auto restart when AC is recovering

- Smart battery charger design for optimized battery performance

- Selectable charging current based on applications

- AC input/DC input/Solar input optional priority

- Auto Restart Voltage

- Capacity(VA) 3000VA

- Rated Power 2400W

- Voltage(DC)12V/24V/48V

- Input Voltage 220VAC

- Voltage Range 154-265VAC ;185-264VAC ( selectable)

- Frequency 50-60HZ Auto-sensing

- Power Factor 0.8

- Output Voltage 220VAC±10%

- Frequency 50/60Hz±5%

- Waveform Pure Sine Wave

- Output Voltage Regulation 10%

- Bypass Mode Yes

- Saver Mode Yes

- Efficiency Circuit Breaker

- Input Protection Circuit Breaker

- Output Protection VRLA / GEL /GEL DEEP CYCLE/Lithium

- Charging Current 30A/15A

- Battery Charging Voltage13.5VDC/27VDC/54VDC

- Maximum PV Array Power 24V: MPPT 30V-150VDC / PWM 30V-60VDC 48V: MPPT 60V-150VDC / PWM 60V-105VDC

- Maximum solar charge current 60A

- LCD indicator status AC input voltage/input frequency, PV voltage, PV current, Output Voltage/Frequency, Battery voltage, Load current etc.

- LED indicator status AC Line In Green/Inverter: Red/Charging: Yellow/Alarm: Red

- LOW battery alarm Audible alarm-5 seconds beeping

- Overload alarm Audible alarm- continuous beeping

- Fault 0-60

Dimensions

LXWXH(mm) 470mmX335mmX210mm

Ships from Cape Town within 1 day
