24k Series A500K 18mm Brass Shaft (split) Full Size Potentiometer

24k Series easy turning A500K Audio Taper 18mm Split Brass Shaft Full Size Potentiometer for volume and tone control on guitar.

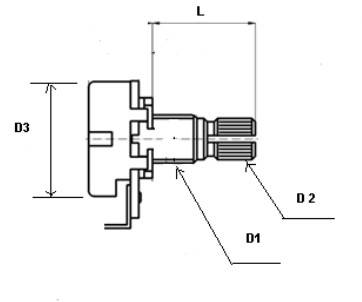

D3 = Pot diameter: 24mm (full size)

L = Shaft length: 18mm

D1 = Shaft diameter: 8mm

D2 = Shaft diameter for knob: 6mm (split)

250k pots are usually used for volume control and tone control on single coil pickups

500k pots are usually used for volume and tone control on humbucker type pickups

Split shafts are suitable for push-on control knobs, solid shafts are suitable for knobs that have a tightening screw.

15mm Shaft pots are normally used for Fender style guitars or guitars with plastic pickguards that the pot goes through

18mm Shaft pots are normally used for Gibson style guitars as they often have wood that the pots must go through.

What is the difference between A pots and B pots?

"A" would denote an audio taper pot (most of the control happens between 7 - 10) and the "B" suffix would denote a linear taper pot (more even roll-off between 0 - 10)

A and B pots however are interchangeable and the only difference is the taper of the pot, or "how gradually it rolls off". Most manufacturers use either audio taper (A) pots for volume + tone or would use liner taper (B) for volume, and audio taper (A) for tone. This is also determined by player preference. Most players who play at high gain / volume levels prefer Audio taper as it cleans up quicker when rolling back and at high volume levels Audio taper pots sound more linear to our ears, this is not the case when playing at low volume levels, when playing at "bedroom volume" linear for volume is more even to the ears.

PACKAGE INCLUDES:

1 x Potentiometer

1 x Washer

1 x Nut
