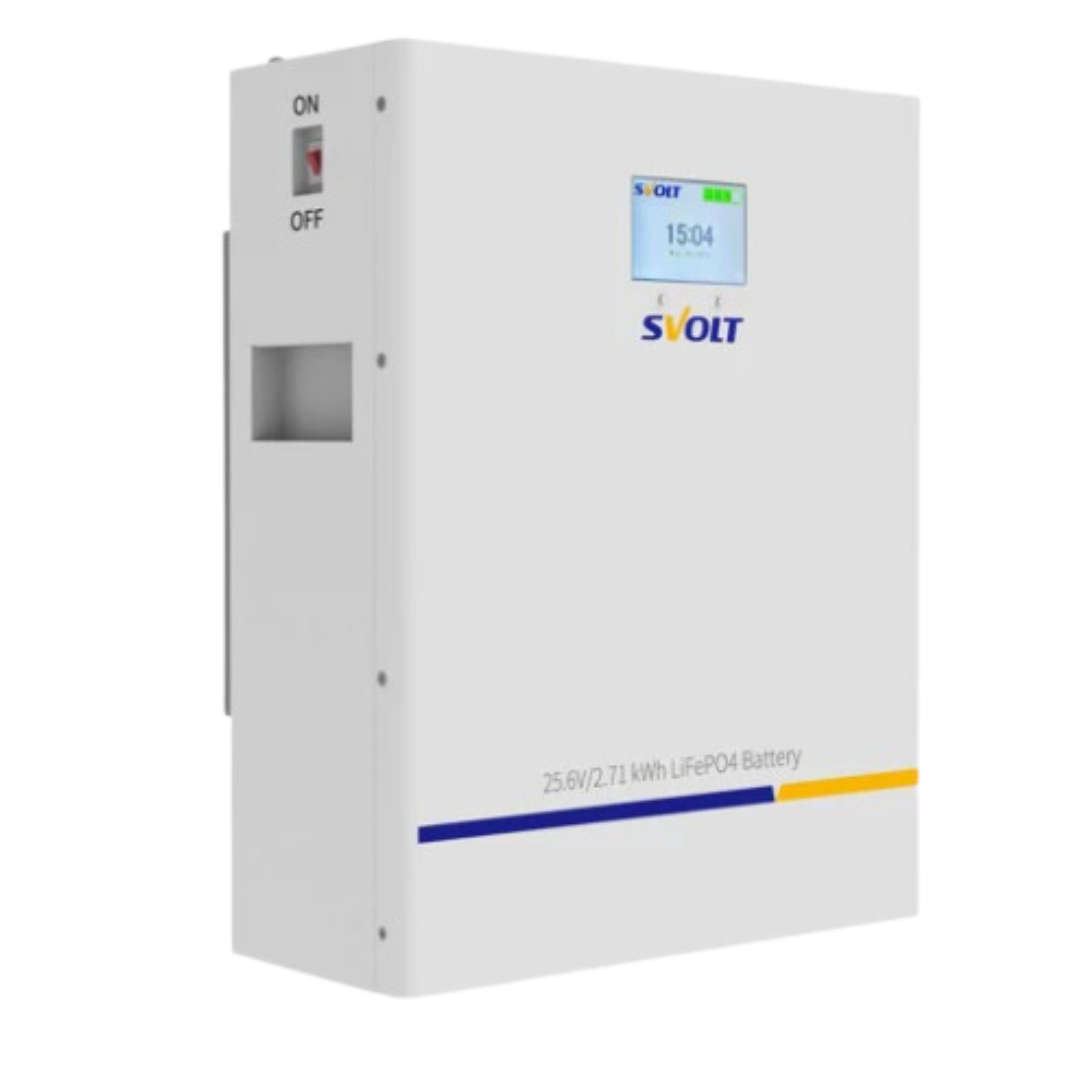

24V 106Ah 2.71 kWh A-Grade Lithium Battery - SVOLT
Energy: 2.71 kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Lifepo4
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy Density: 2713.6 Wh
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
Terminal Type: Feed-through Terminal
Case Material: SPCC
BMS Built-in: Yes
Internal Resistance: <25 m
Efficiency- Round Trip: >99%
Self Discharge Per Month: <3%
Max. Parallel Connection: 4 Pcs
Max. Series Connection: 2 Pcs
Cycle Life (0.3c, 25 @ 90% DOD): >6000 Cycles
Discharge Temperature: (-20 to 65)C
Charge Temperature: (0 to 50)C
Storage Temperature: (-10 to 30)C
Bluetooth (App): Optional
LCD Screen: Yes
Heating Function: Optional
Electrical Parameters
Operating Voltage Range: 21.6-28.8V
Recommend Charge Voltage: 25.40.20V
Max Charge Voltage: 29.20.20V
Recommend Charge Current: 20A
Max Continuous Charge Current: 100A
Recommend Discharge Voltage: 22.40.20V
Max Discharging Voltage: 20.80.20V
Max Continuous Discharge Current: 100A
Peak Discharge Current: 130A
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
What's In the Box:
1 x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery
1 x Red (Positive) Battery Cable
1 x Black (Negative) Battery Cable
1 x Manual
Warranty: 5 Years
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
