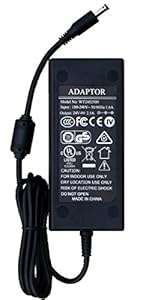

24V 2.5A - 60W output at 24VDC Power Supply AC/DC Switching Adaptor PSU
10 were available / new
R360.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
24V 2.5A - 60W output at 24VDC Power Supply AC/DC Switching Adaptor PSU
Brand New In Box (Sealed but sometimes supplied without film wrapping)
THIS PRODUCT IS IMPORTED ON ORDER - PLEASE SEE "SHIPPING & PAYMENT" FOR DELIVERY TIMES
Product details
Product Dimensions: 12 x 5.3 x 3.2 cm ; 245 g
Boxed-product Weight: 299 g Find out more about our Delivery Rates and Returns Policy
Item model number: WT2402500
ASIN: B00N5TG1Z6
Date first available: 30 Aug. 2014
Specifications
A good quality Switching Adaptor Power Supply. Can be used for CCTV, Network devices countless other applications where 24V are required.
Input : 100-240v AC 50-60Hz 1.6A / Output : DC 24V - 2.5A (60w)
DC plug = 5.5 x 2.1 mm. Typical DC Lead Length ¿¿ 1.1 Metres.
Note: There are two basic internal sizes for the 5.5mm tip 2.1 & 2.5, this is a well made 2.1 and it is a snug fit.
This is robust power supply, it will give long reliable service.
Product Description
¿¿¿Low-ripple and noise ¿¿¿High-efficiency ¿¿¿Over-current protection, over-voltage protection and short-current protection ¿¿¿Dimensions (L x W x H): 120 x 53 x 32mm ?Input voltage: 100 to 240V AC ?Frequency: 50/60Hz ?Output power: 24V, 2.5A, 60W ?Voltage tolerance: ¿¿ 5 ?Ripple and noise: <1% (mVp-p) ?Turn on delay time: less than 3 seconds ?Hold up time: more than 10ms ?Protection: short-circuit, over-current and over-voltage ?Operating temperatures: 0 to 40¿¿C, 10 to 90% RH ?Storage temperatures: -20 to 85¿¿C, 10 to 90% RH ?Altitude: <3,000m ?EMC: EN55022B, FCC, GB9254 and VCCI ?With UL/cUL, PSE, TUV/GS, CCC, SAA and BSI marks ?Insulation: hipot, 3,000V AC, 60s, 10mA ?Leakage current: 0.25mA (maximum) ?MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000 hours ?Configuration: IEC320-C6, IEC320-C8, IEC320-C14 ?Used for security camera, LCD monitor, LCD TV and LED light
