24V 250W Motorcycle Brush Speed Controller & Scooter Throttle Twist Grips Description: Fits standard 7/8 inches(22.2mm) handlebars

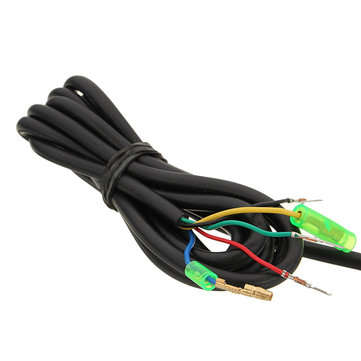

Cable length is approximately 59 inches (1.5m)

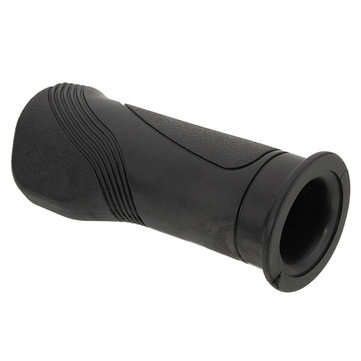

Qty: 2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) )

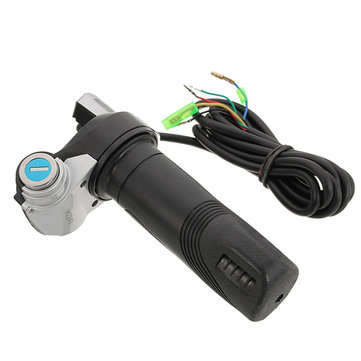

Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Specification: Handlebar:
Size: (Length x Diameter) 10 cm x 2 cm / 3.9 x 0.8
Throttle Works Voltage: DC5V
Speed Adjusting Signal: 0.8V-4.3V
Power display Voltage: DC 24V
Normal: 23V above, 3 Led Green
Half: 23V ~ 20V, Led Yellow
Empty: 20V or less, Led Red
Rotation angle: 0 ?ﾣ~ 70 ?ﾣ
Working temperature: -20 a??~ +50 a??
Controller Wires Interface Definition:
Battery : Thick Black (Power Negative) /Thick Red (Power Positive)
Motor : Thick White (Motor Negative) /Thick Blue (Motor Positive)
Ignition Switch : Thin Red(VCC)/Thin Blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake : Thin yellow (Brake signal)/thin black(Negative Power)
Speed governor : Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
Brake Light : Thin red (power Positive) /thin black (Power negative)

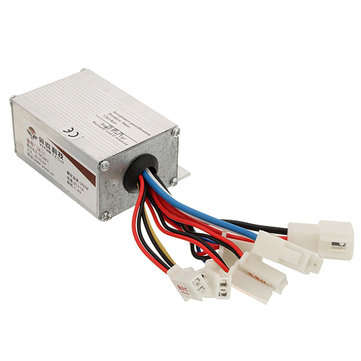

Brushed Controller:
Size: (Length x Width) 8 cm x 6.5 cm / 3.1 x 2.6
Motor brushed controller for Electric bicycle & scooter
Rated voltage: dc 24 v
Current limit : 21A
Rated power: 250 w
matching motor: dc brushed motor
Under Voltage Protection: 20V

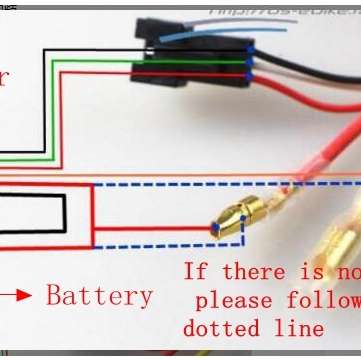

Throttle Wiring Diagram: Throttle?? ?????????????????????????? Controller?? ????????????????????????? Description
Red?? ? ? ? connects to?? ?Red?? ?? ? ? ? ? ? ? ? ? ? ? ? ? Voltage 4.3 to 5.0 Volts
Blue?? ? ?? connects to?? ?Black or Yellow?? ? ? ? ?? Ground
Green?? ? connects to?? ?Green, Blue or White?? ?Speed Adjusting Signal (0.8 to 4.3 Volts)
Yellow?? ?connects to?? ?Power positive?? ?????????? Power display
Note: 1.Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid.
2 . The color may have different as the difference display, pls understand.
3 . The item include brushed controller and throttle twist grips. The controller is used for brushed motor 24V 250W, and the throttle is used for DC 24V electric scooter. Please check the parameter of your electric scooter before you place the order, if you dona??t know the parameters, Please dona??t place the order.

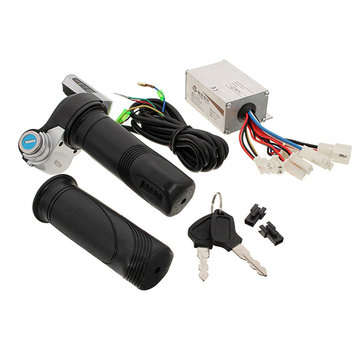

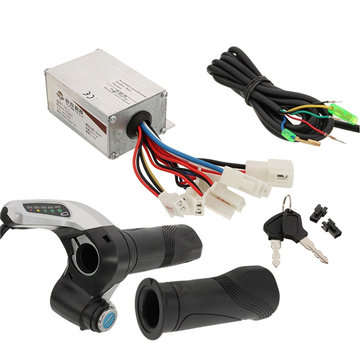

Package Included: 1 X 24V 250W Motor Brushed Controller

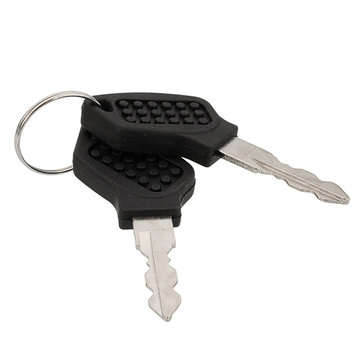

1 X Throttle Grip (with one Normal Grip, 2 keys)
