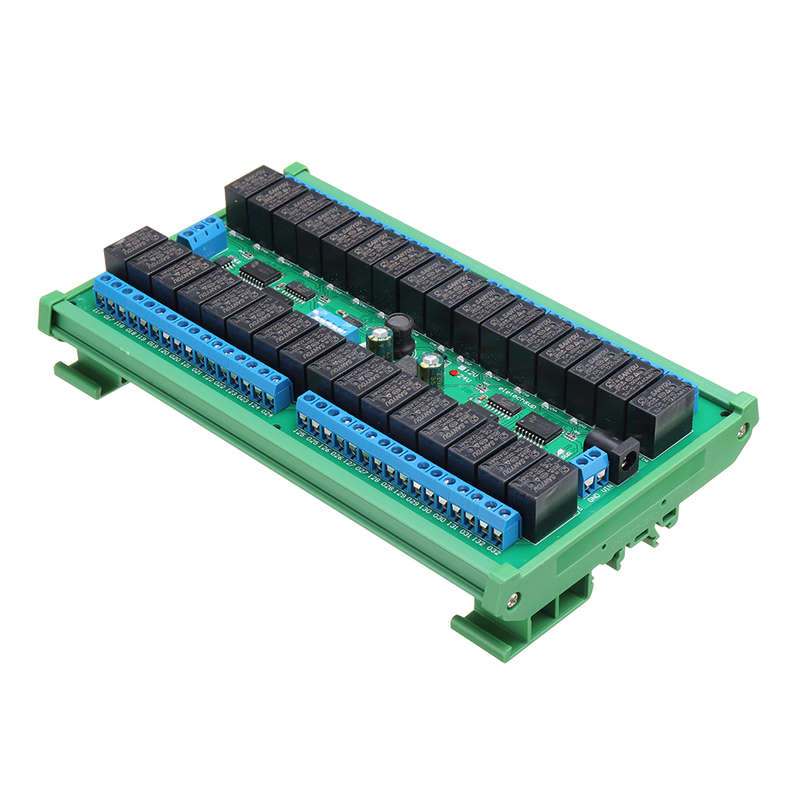

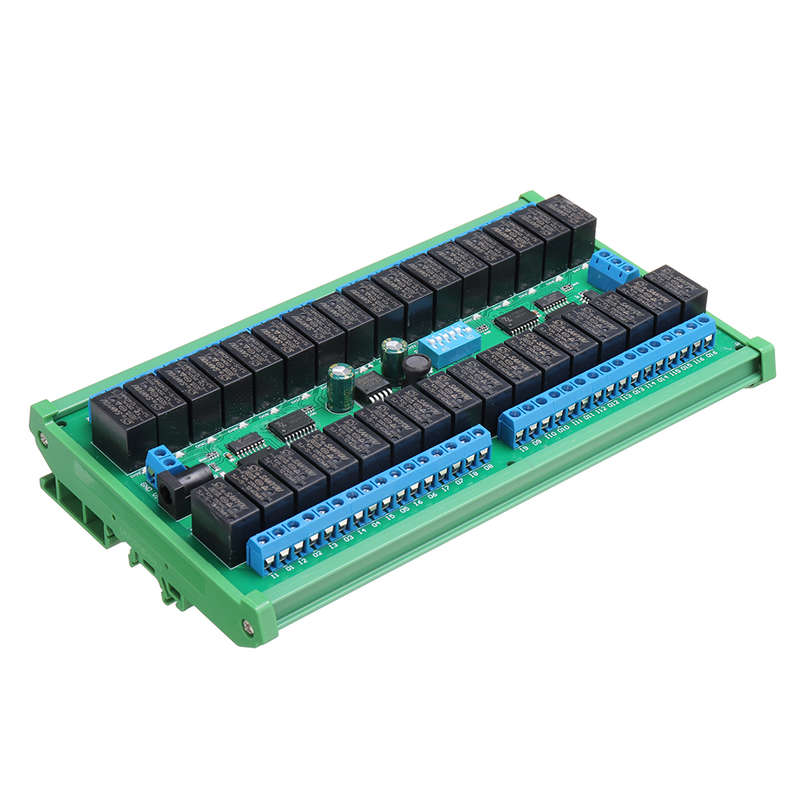

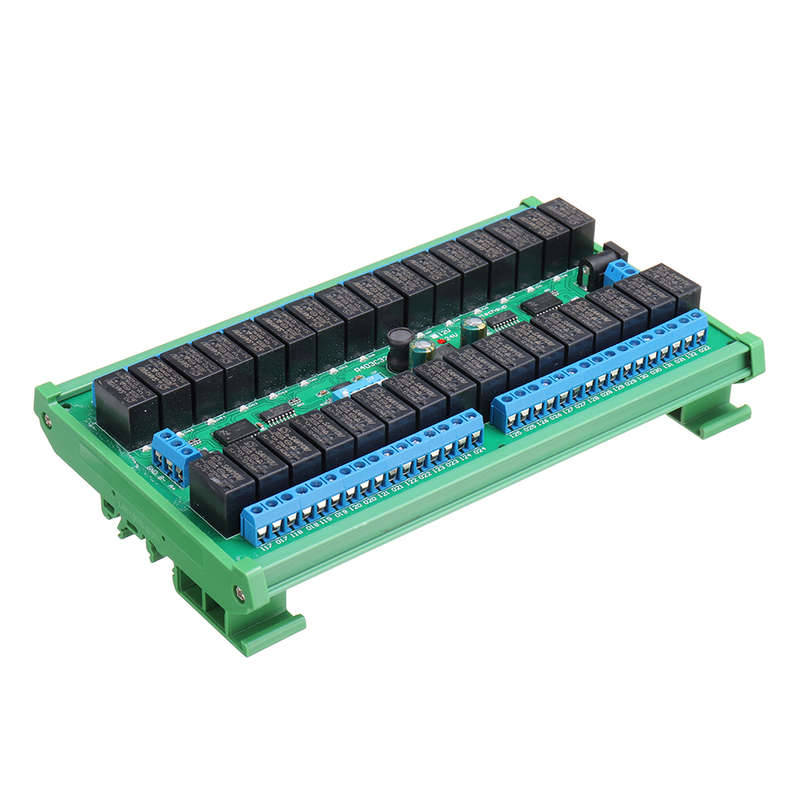

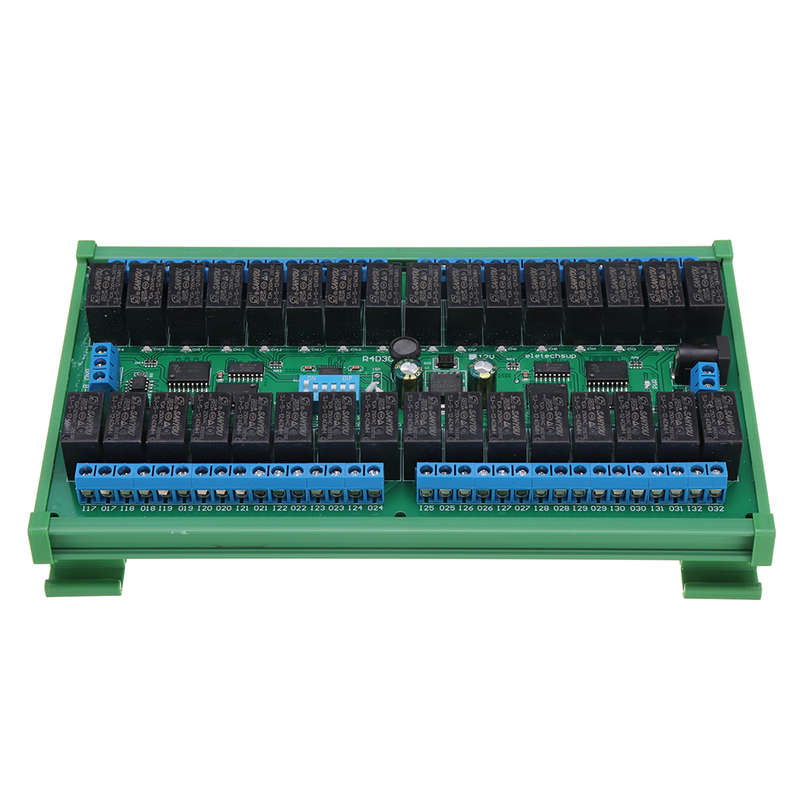

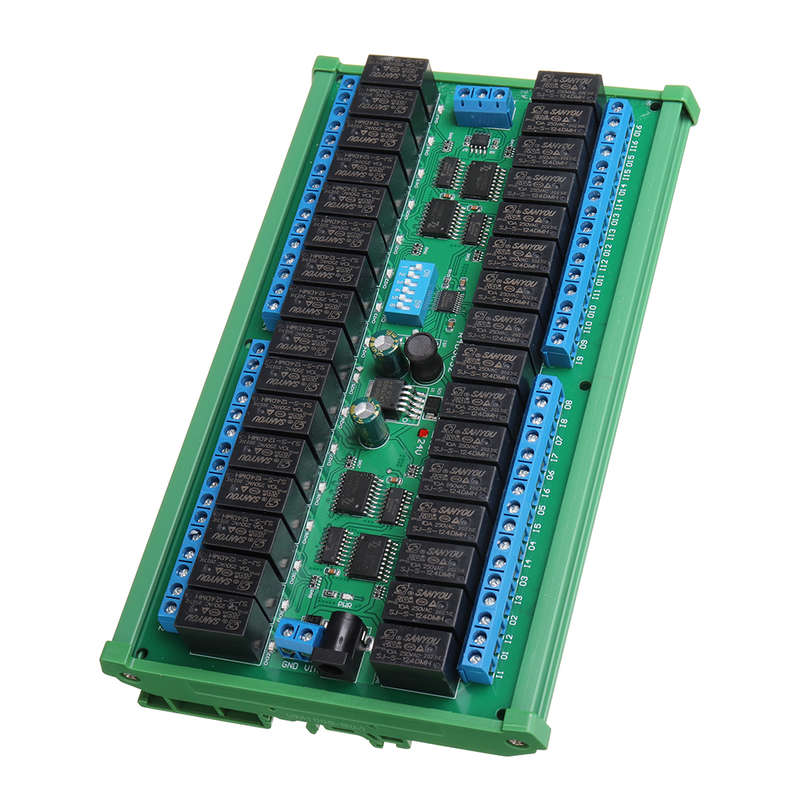

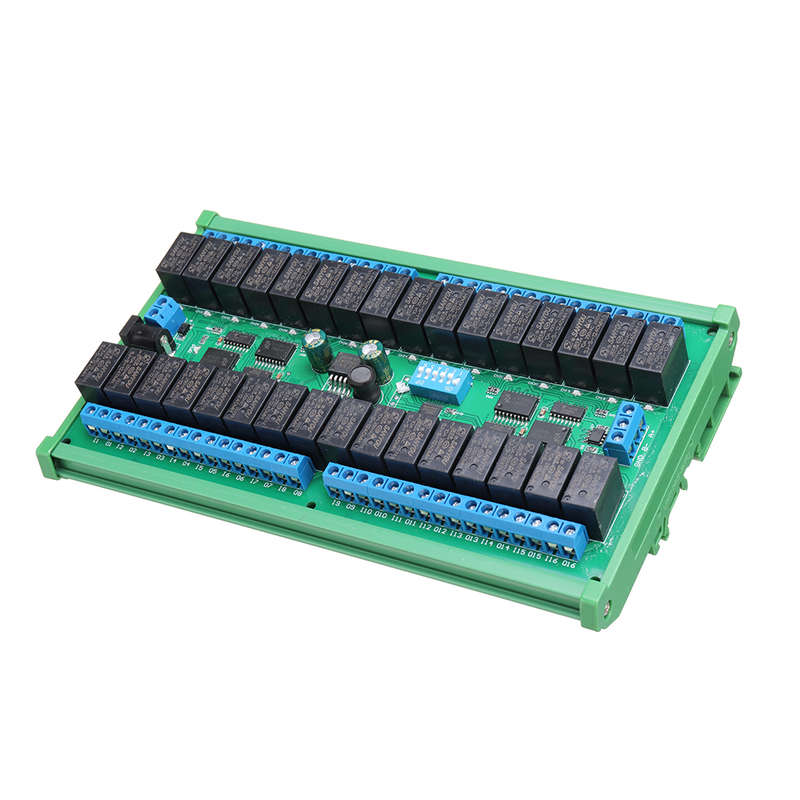

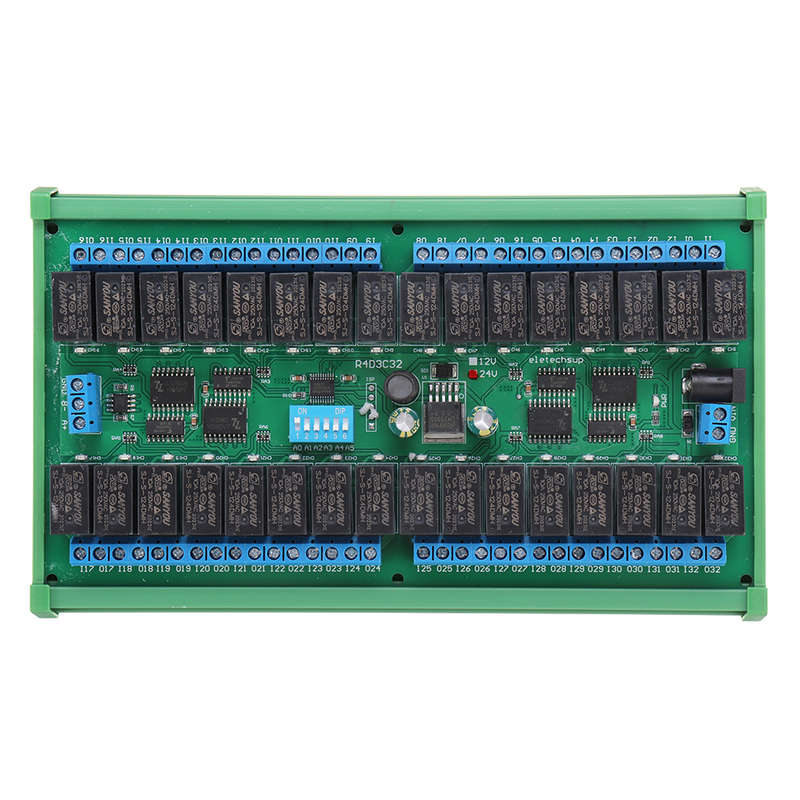

24V 32 Channel RS485 Modbus RTU Relay Module with DIN35 Rail Box MODBUS RTU Command

20 available / new

R1,421.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641104791

Description:

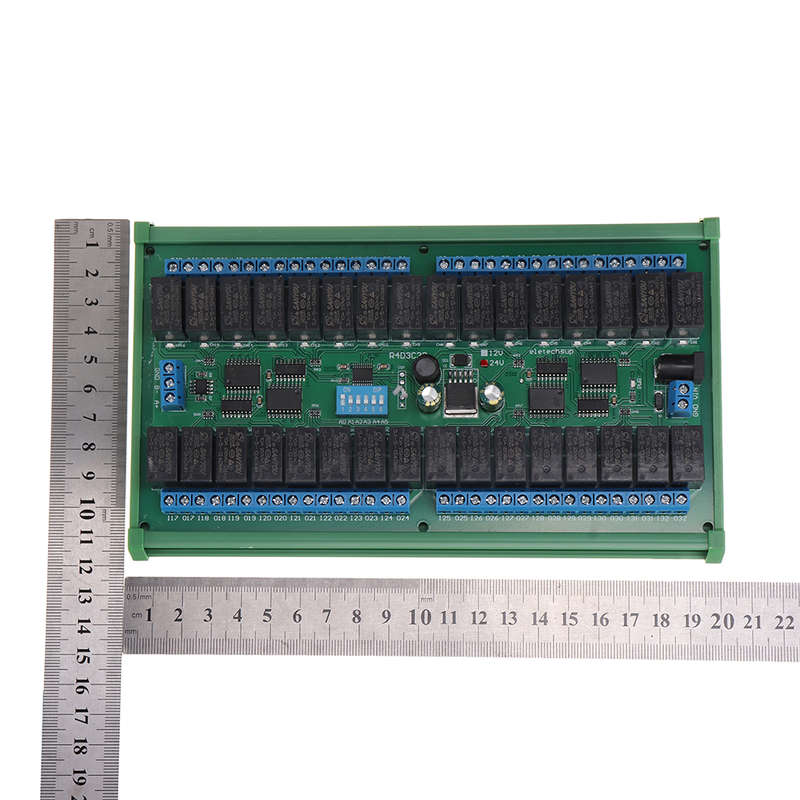

1. Working voltage:24V (24V version). 2. Working current: standby 8MA, 32 relays are open 1.15A 3. open close Momentary Self-locking Interlock Delay 6 Commands 4. MODBUS RTU command 5. Under the Delay command, the maximum delay is 255 seconds 6. MODBUS commands can be made serial Hyper Terminal (serial assistant) or Modbus Poll Enter. 7. Under the MODBUS command mode, it can support up to 64 devices in parallel 8. Size: 180 * 90 * 20mm(Only Board); 195 * 115 * 43mm(with DIN Rail Box) 9. Weight: 296g (Only Board); 475g ( with DIN Rail Box) 10. Maximum load: 10A / 125V AC

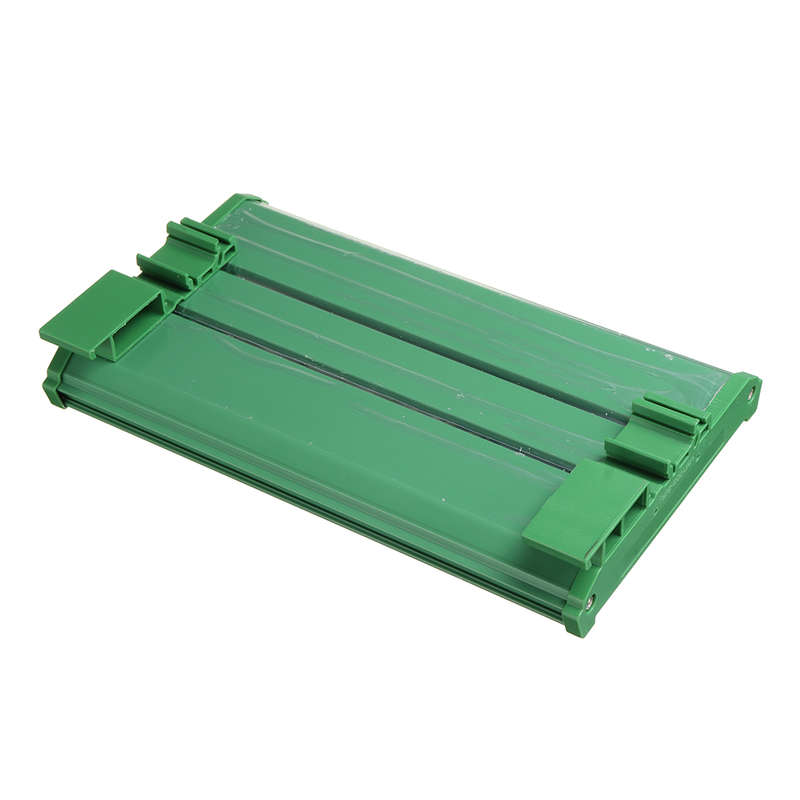

DIN rail Box parameters:
Product model: UM100 Color: Green Width: suitable for PCB board width UM100(100mm) Insulation grade: flame-retardant VO grade Backplane length: suitable for 190 mm PCB boards Net weight: 170g Installation: DIN35 and C45 rail
Application:
Automated industry PLC Smart Home, Home Automation, Wiser Home IP PTC Camera Security Monitoring Identification system Motor FW & BW aLED Home lighting Door Lock DIY electronic
Package included:
1 x 32 channel RS485 relay module
