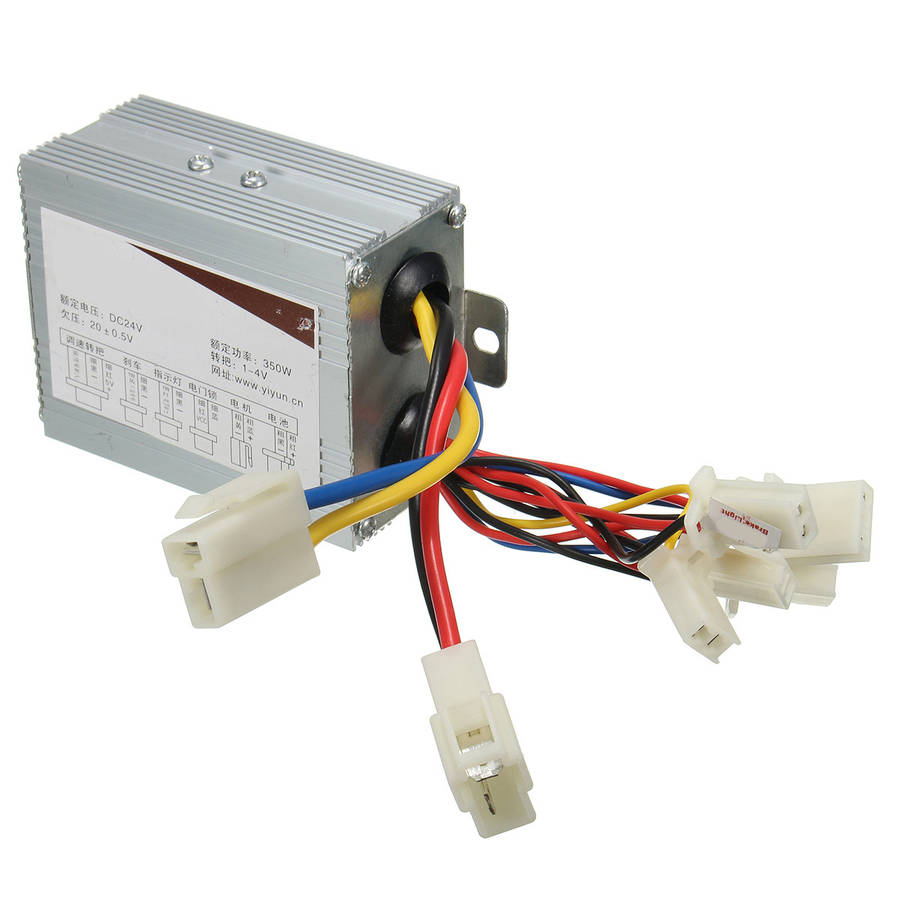

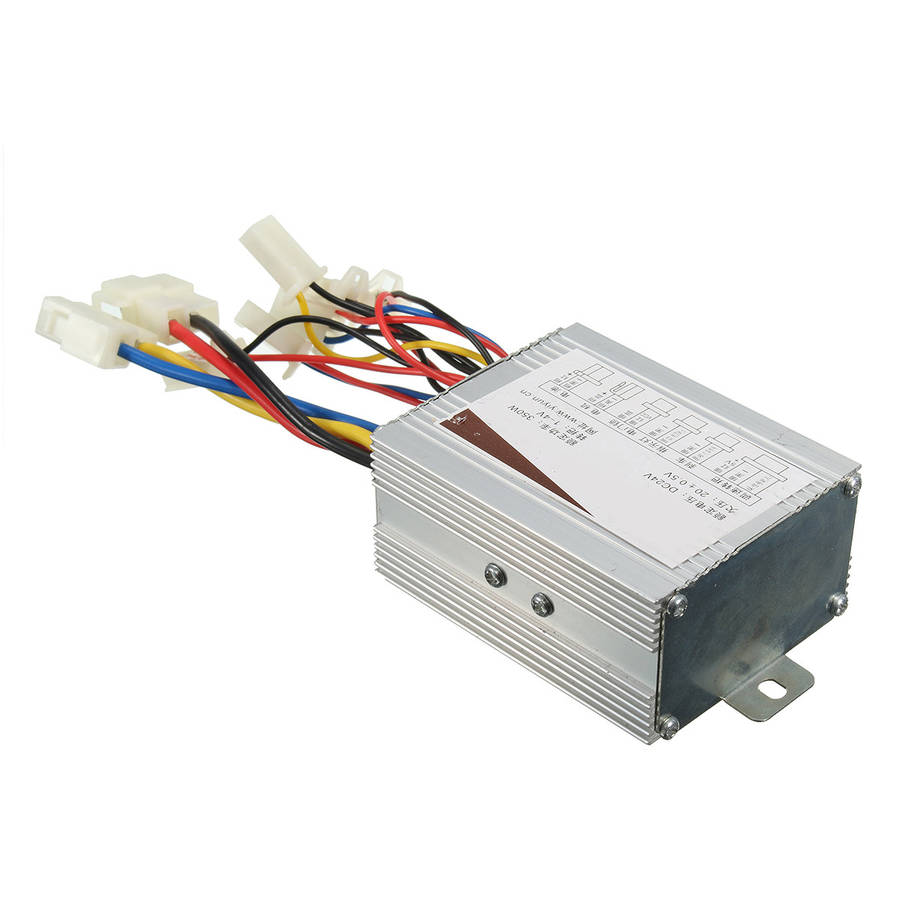

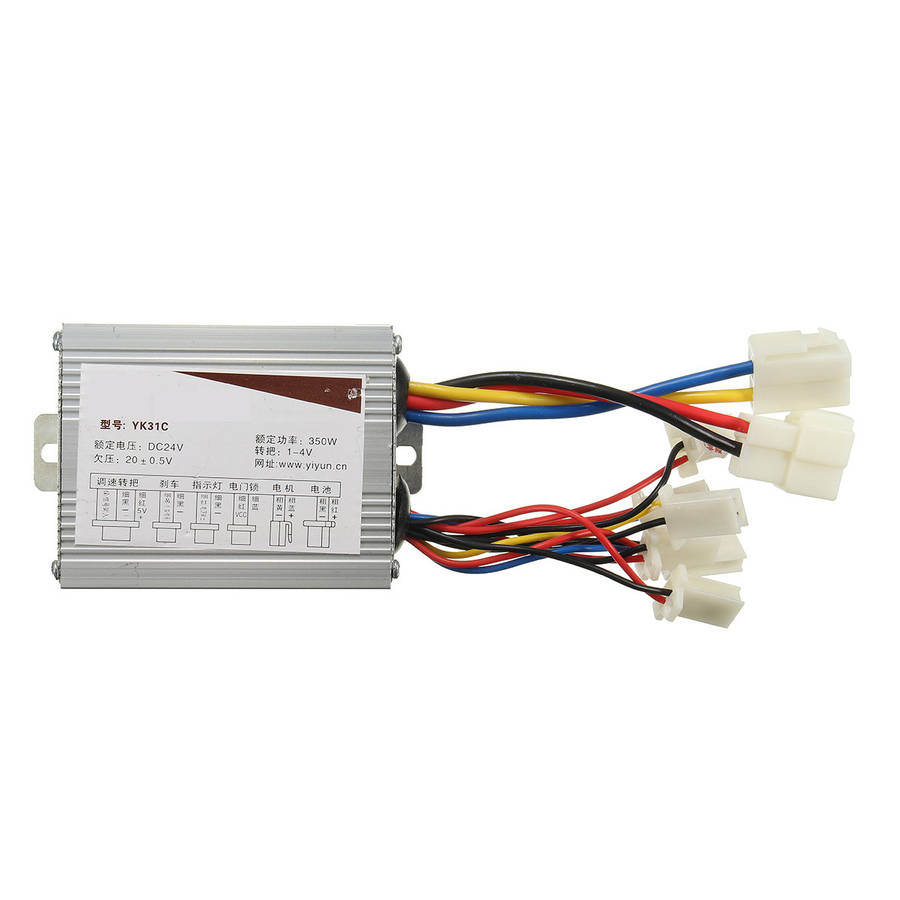

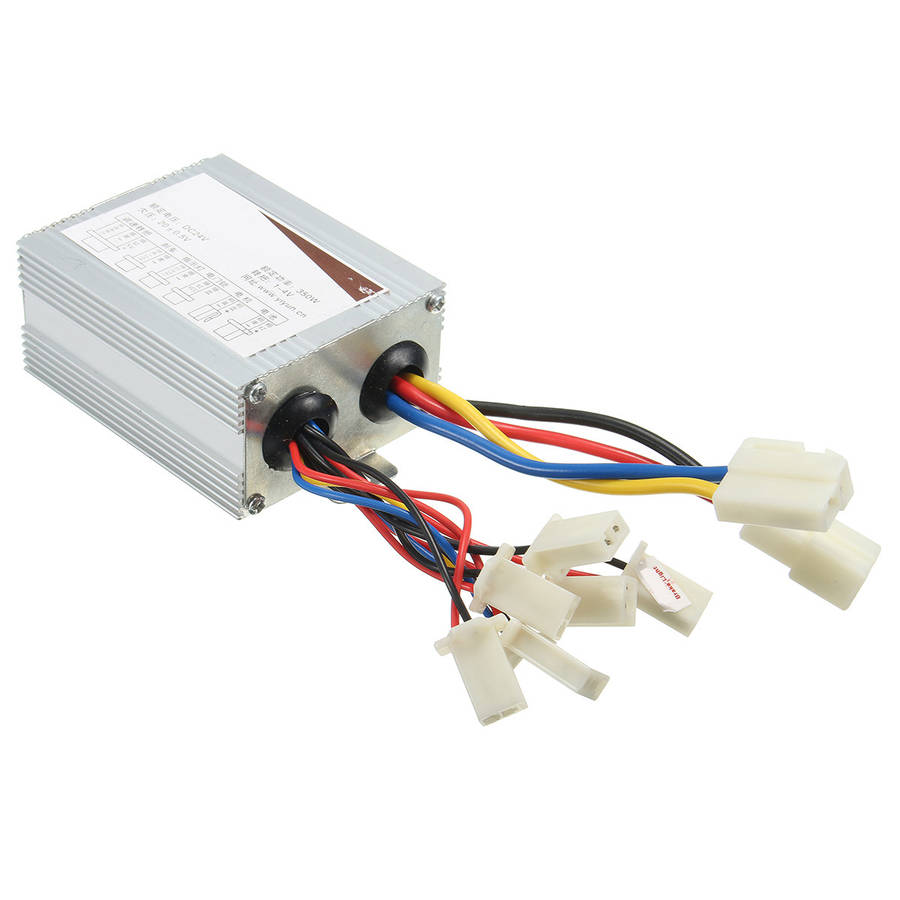

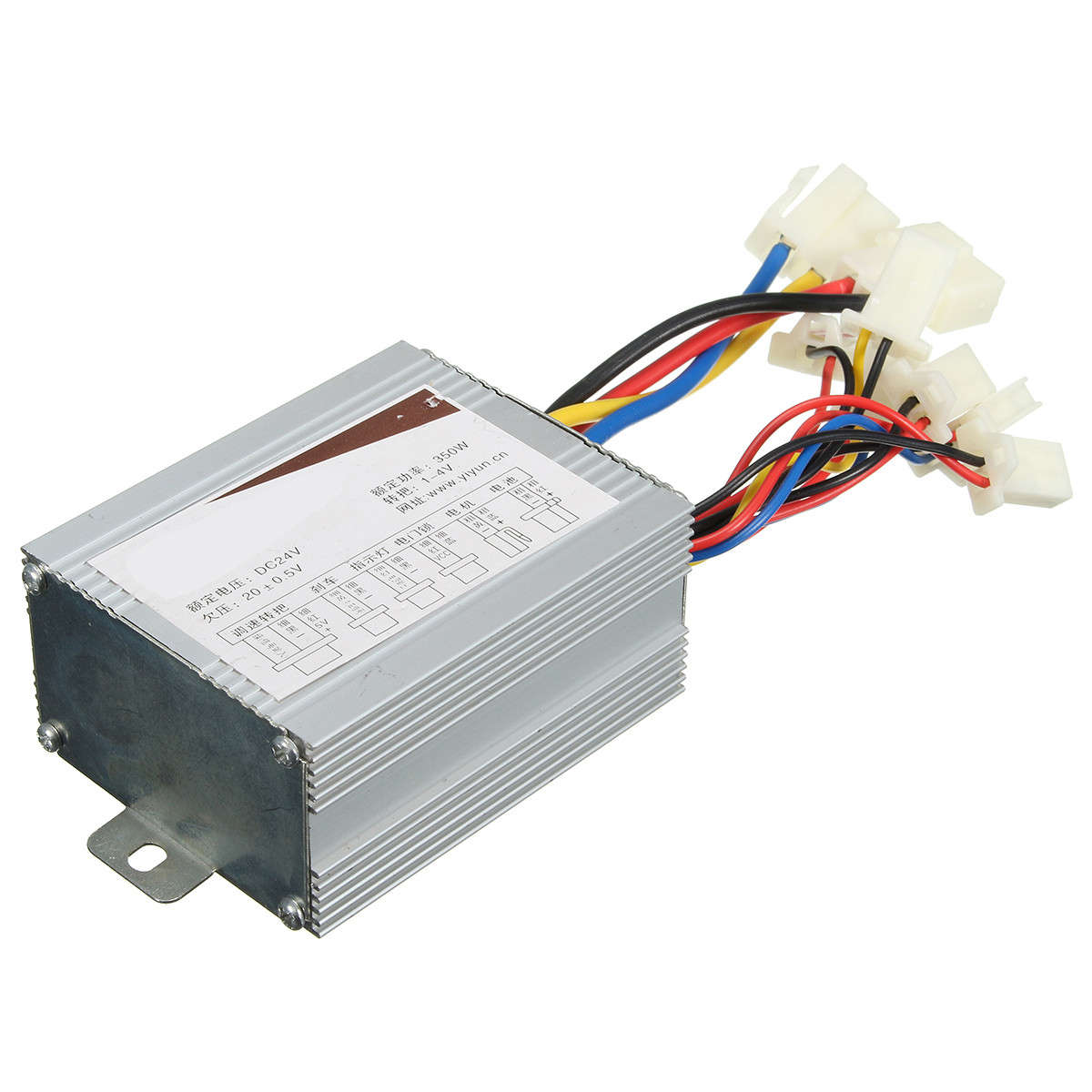

24V 350W Motor Brush Speed Controller For Electric Bike Bicycle Scooter E-Bike
New
Indicative market price: R799
R309.43
61% OFF
Closed
29 Dec 17 21:06
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1161604
Bob Shop ID
315535979
Package weight: 0.17 kg
Description:
Controller wiring instructions: wing Yun controller, for example, in order to work at least the motor can be connected to at least four joints, the first controller on the two thick blue and white lines connected to the motor, The red line of the motor, the white line connected to the black line of the motor. Followed by the controller of the two red and black lines connected to the battery, the red line then the battery cathode, black line connected to the negative. The third re-connected to the speed control to the joints, (speed control turn to have three lines, be sure the red line on the red line, black line on the black line phase). Once again connected to the electric lock, open the electric door lock, turn the motor can run.
Specification:
Model: 498510
Voltage: DC 24V
Wattage: 350W
Undervoltage: 20+/0.5V
Handle: 1-4v
Dimensions: 81 x 65 x 38mm/3.18 x 2.56 x 1.5"
Casing Material: Aluminium
Wiring:
1. black & yellow connector - Brake wire
2. red & black connecotr - Charging port
3. red & black & blue connecotor -Derailleur /throttle
4. red & black connector - Indicator
5. red & blue connector - Power locks
6. red & black connector - Brake light
7. Thick white & blue connector - Motor
8. Thick red & black connector - Battery
Warm Tip:
If your controller is 7 connectors, then that is less than my 8 connector controller of a power lock connector, I need to install this controller I control the electrical lock on the red and blue two-wire connector can be shorted together.
If your controller is 7 connectors, then that is less than my 8 connector controller of a power lock connector, I need to install this controller I control the electrical lock on the red and blue two-wire connector can be shorted together.
Package Included:
1 X Brush Motor Controller
