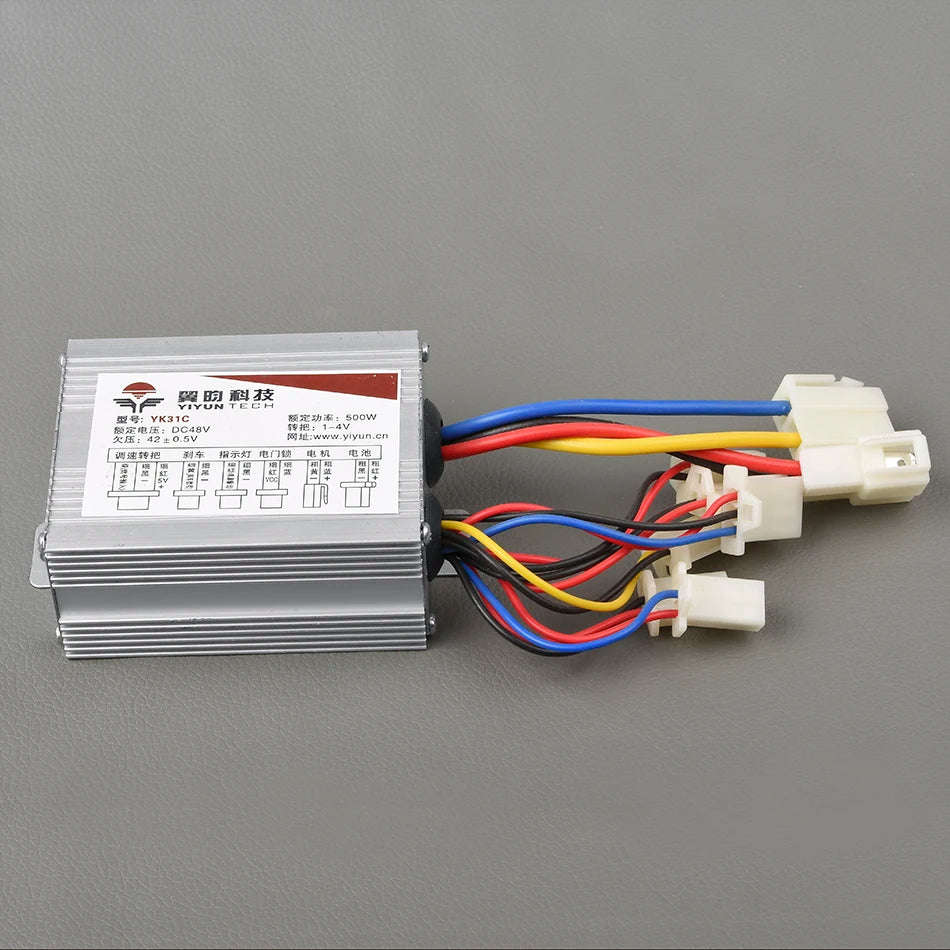

Features:

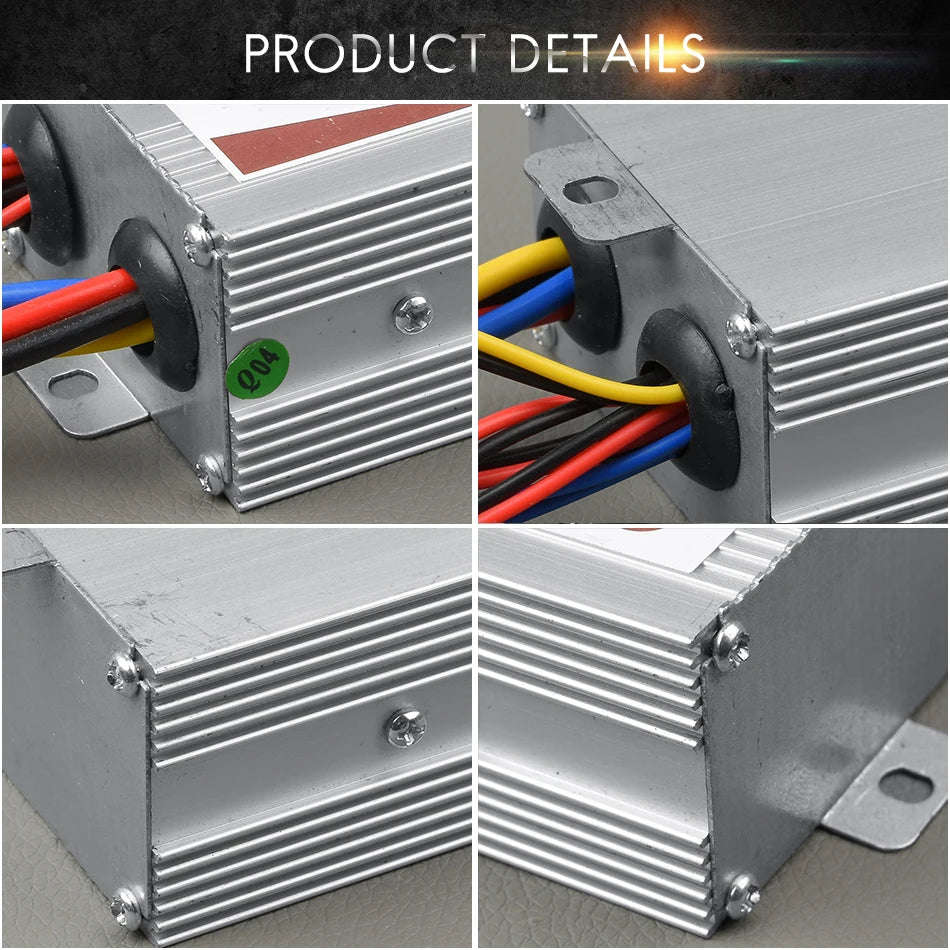

1. The controller shell is made of alluminum alloy, which can the inner circuit and good for heat dissipation to avoid thermal overloading.
2. This item is a brushed motor controller, it can provide steady speed and sensitive control of braking and direction changes.
3. The wires and interfaces are durable, and ensure low malfunction of long time use.

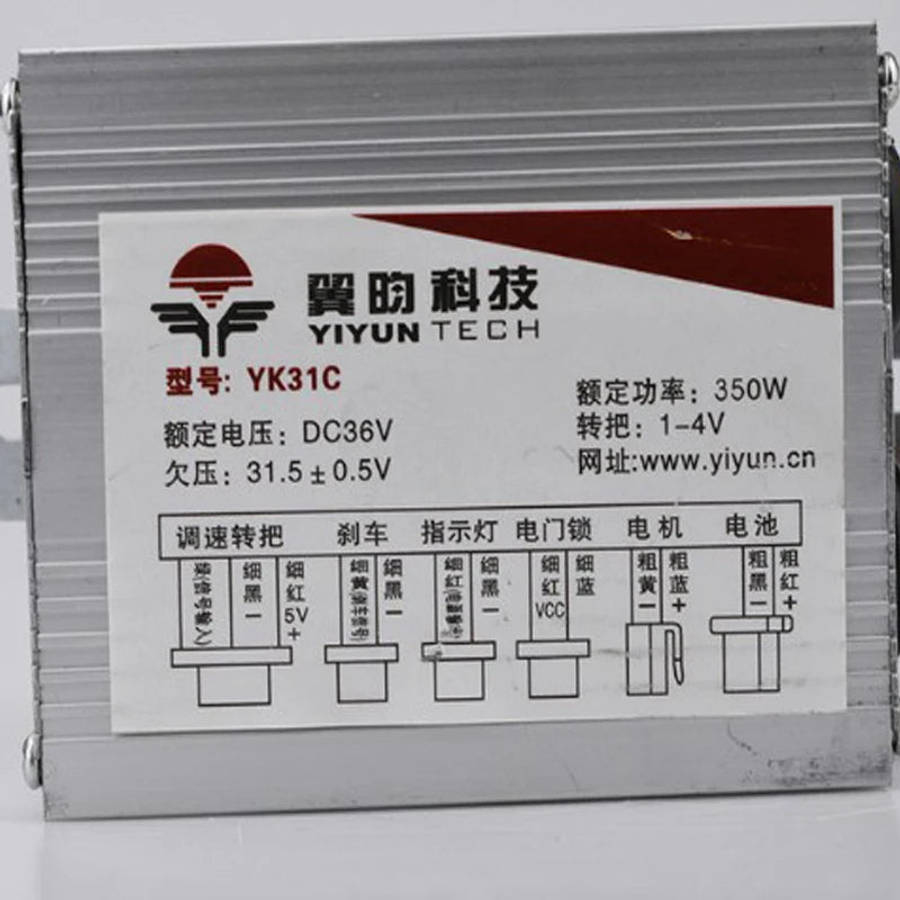

4. The interfaces have instruction labels on them for your easy installation.
5. Suitable for electric bicycles and scooter.
Specification:
Material: Aluminium alloy
Rated Voltage: 24V/36v/48v
Under-Voltage Protection: 20±0.5V
Speed Regulator: 1-4V
Match Motor: 350-500-800W motor
Suitable for: electric bicycles and scooter

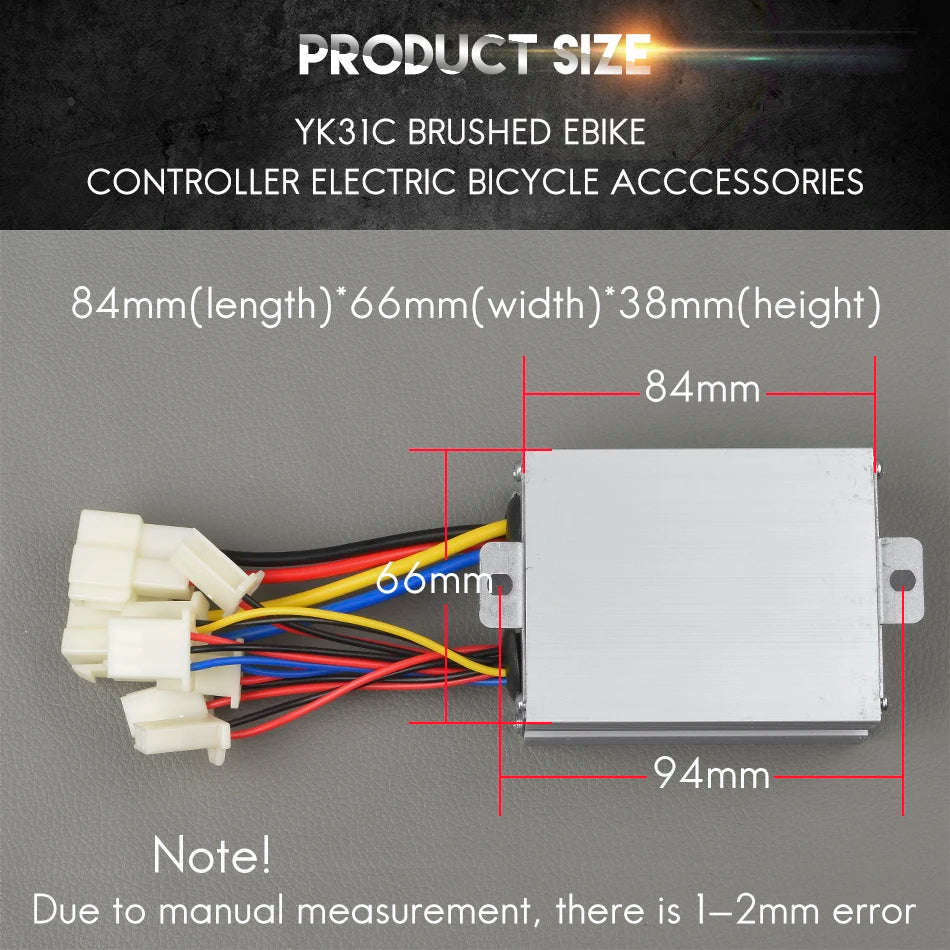

Weight: Approx. 200g
Package List:
1X Controller

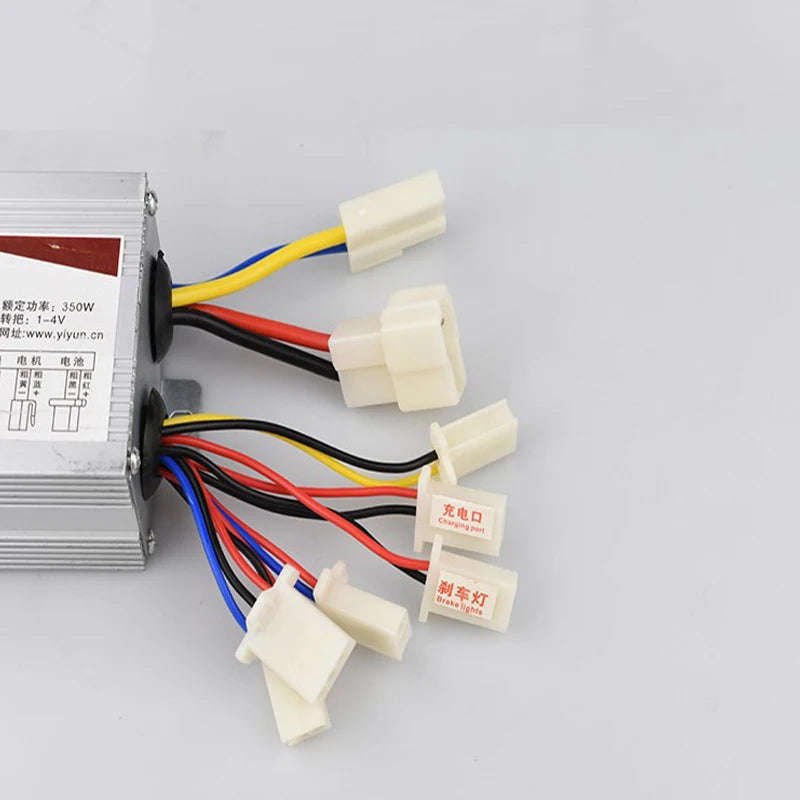

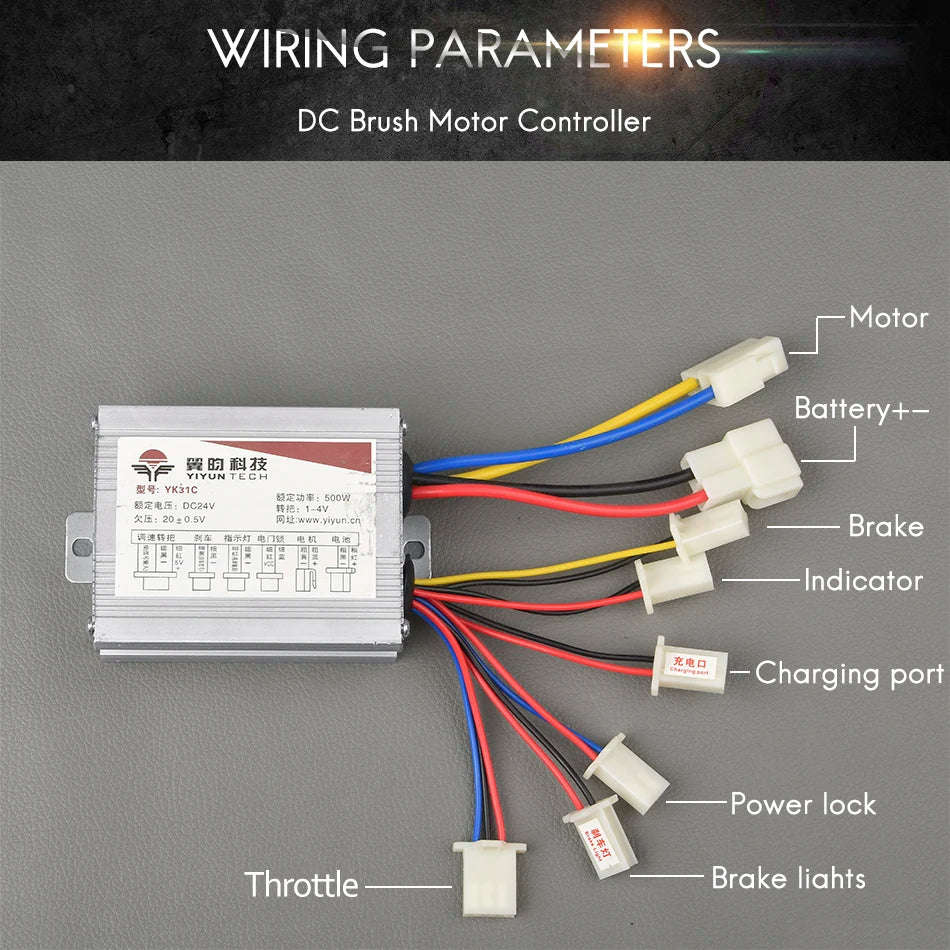

Installation Information:
1,Power ( rough red connect the positive pole ,rough black connect the negative )
2,Motor ( rough blue connect the positive pole ,rough yellow connect the negative )
3,Indicator light (thin black connect the negative , thin red connect the power output )
4,Brake light
5,Brake (thin black connect the negative , think yellow connect brake signal )
6,charging port
7,Electric lock
8,Speed handle ( thin red connect +5V , thin black connect negative , green connect signal )
