24V 500W Motorcycle Brush Speed Controller & Scooter Throttle Twist Grips

Description:

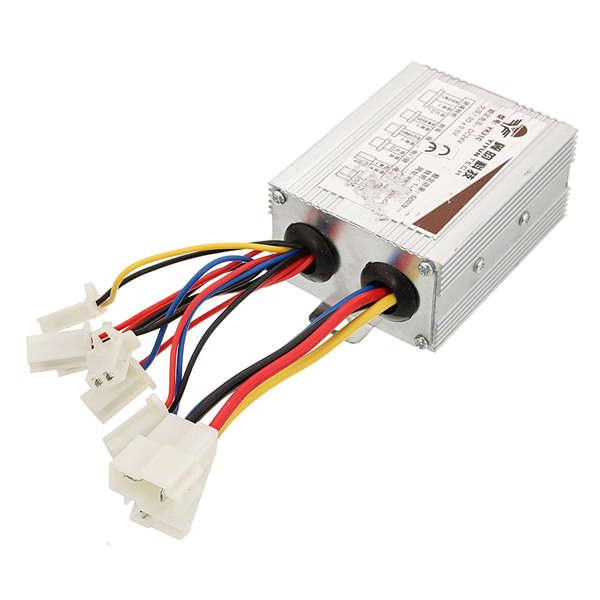

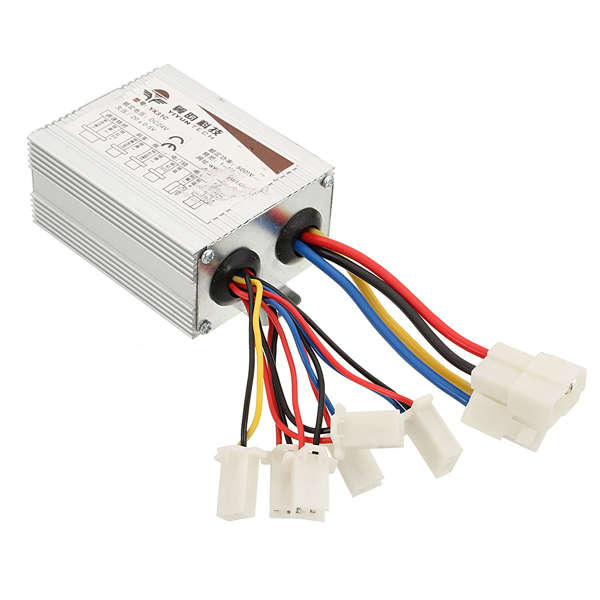

Controller Wires Interface Definition
Battery :Thick Black (Power Negative) /Thick Red (Power Positive)
Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)
Ignition Switch :Thin Red(VCC)/Thin Blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake :thin yellow (Brake signal)/thin black(Negative Power)
Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
Brake Light: Thin red (power Positive) /thin black (Power negative)

Specification:

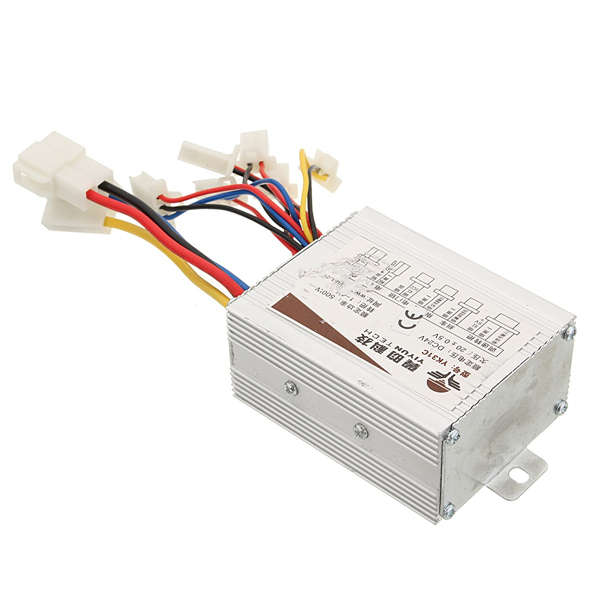

Brushed Controller :

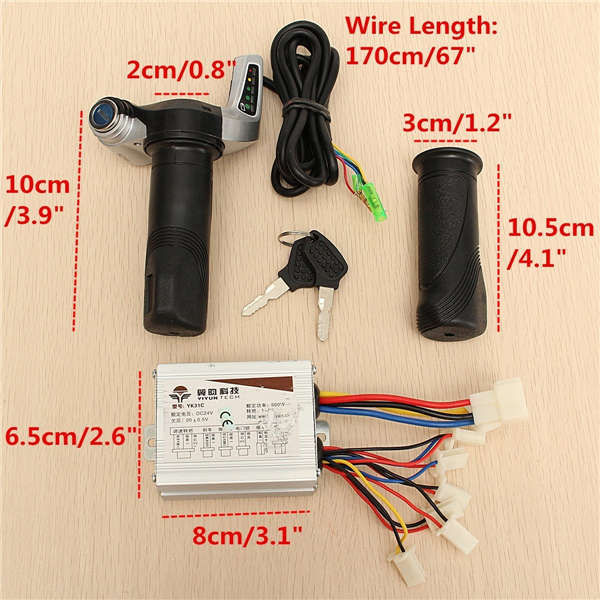

Size: Size: (Length x Width) 8cm x 6.5cm / 3.1" x 2.6"
Motor brushed controller for Electric bicycle & scooter
Rated voltage: dc 24 v
Current limit : 28A
Rated power: 500 w
matching motor: dc brushed motor
Under Voltage Protection: 20V
Handlebar:
Size: (Length x Diameter)10cm x 2cm / 3.9" x 0.8"
Electric Bike scooter twist throttle accelerator with power display, 5Led battery indicator.
Throttle Works Voltage: DC5V
Speed Adjusting Signal:0.8V~4.3V
Power display Voltage: DC 24V
Power display:
Normal: 23V above, 3 Led Green
Half: 23V ~ 20V, Led Yellow
Empty: 20V or less, Led Red
Rotation angle: 0 °~ 70 °
Working temperature: -20 ℃~ +50 ℃
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 59 inches (1.5m)
Qty: 2PCS (1 Twist throttle grip and 1 normal grip (matching thumb grip) )

Throttle Wiring Diagram:
Throttle                              Controller                             Description
Red   connects to   Red      Voltage 4.3 to 5.0 Volts
Blue      connects to   Black or Yellow      Ground
Green   connects to   Green, Blue or White   Speed Adjusting Signal (0.8 to 4.3 Volts)
Yellow   connects to   Power positive              Power display

Note:
1.Please allow 1-3cm error due to manual measurement.Pls make sure you do not mind before you bid.
2.The color may have different as the difference display, pls understand.

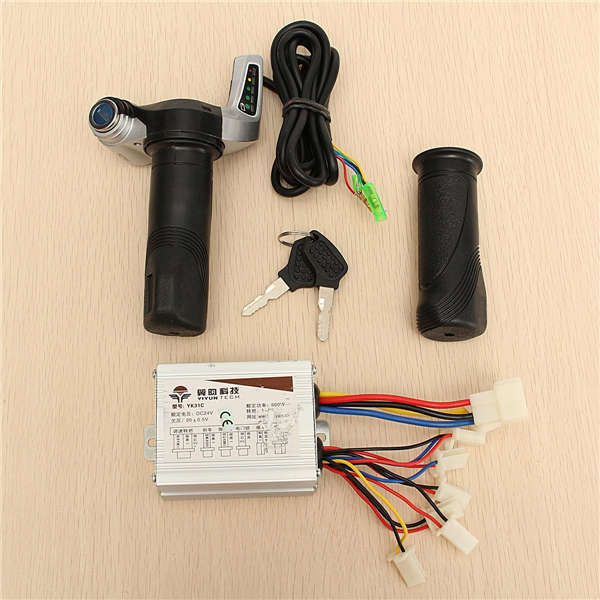

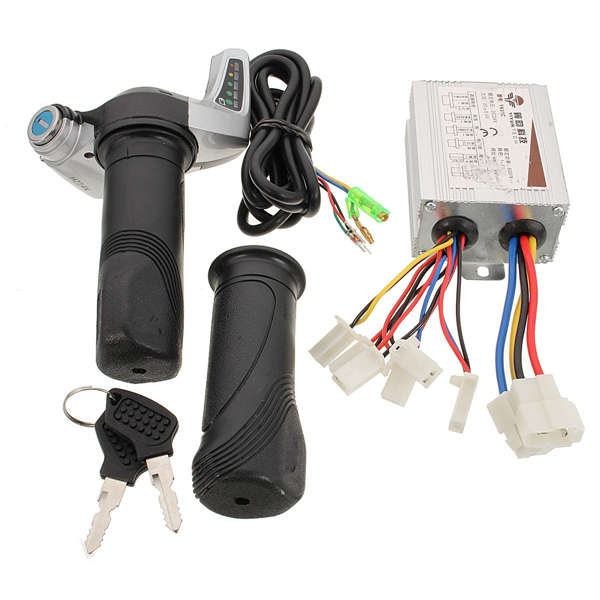

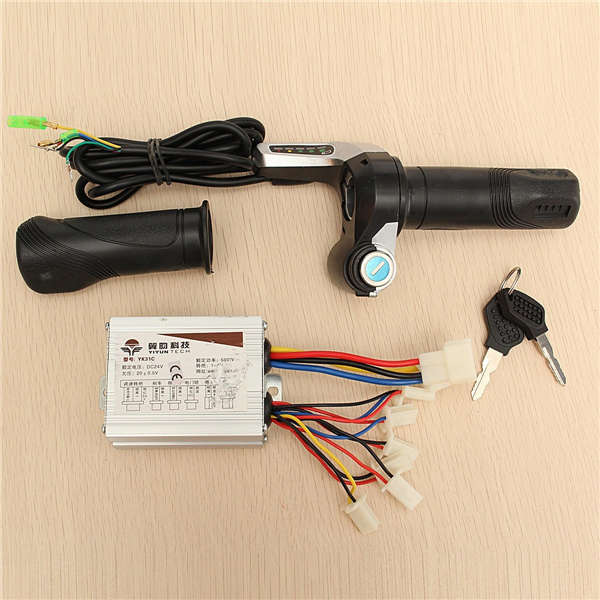

Package Included:
1 X 24V 500W Motor Brushed Controller
1 X Throttle Grip (With One Normal Grip)
