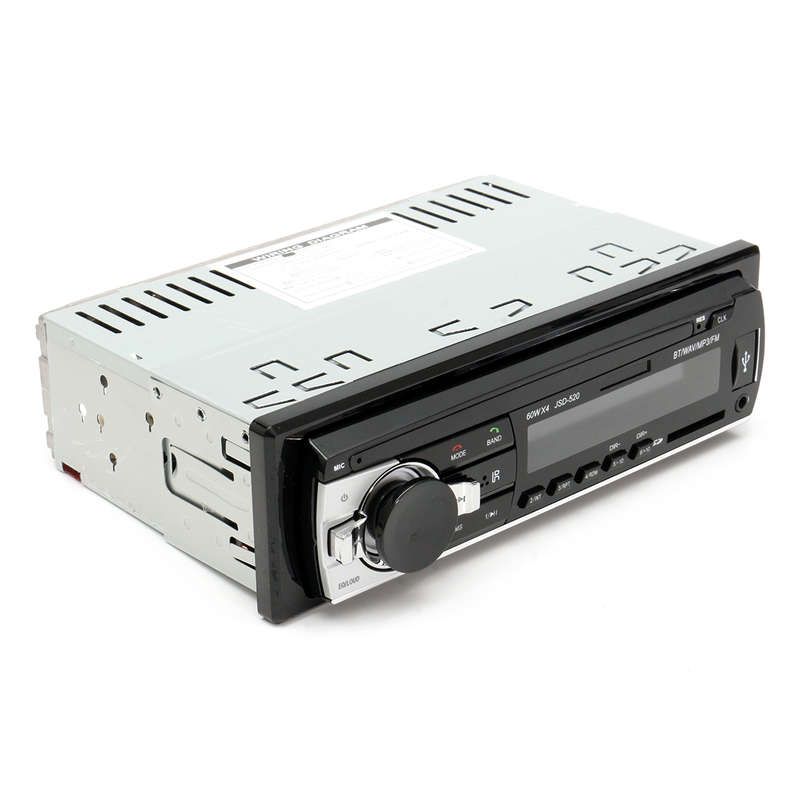

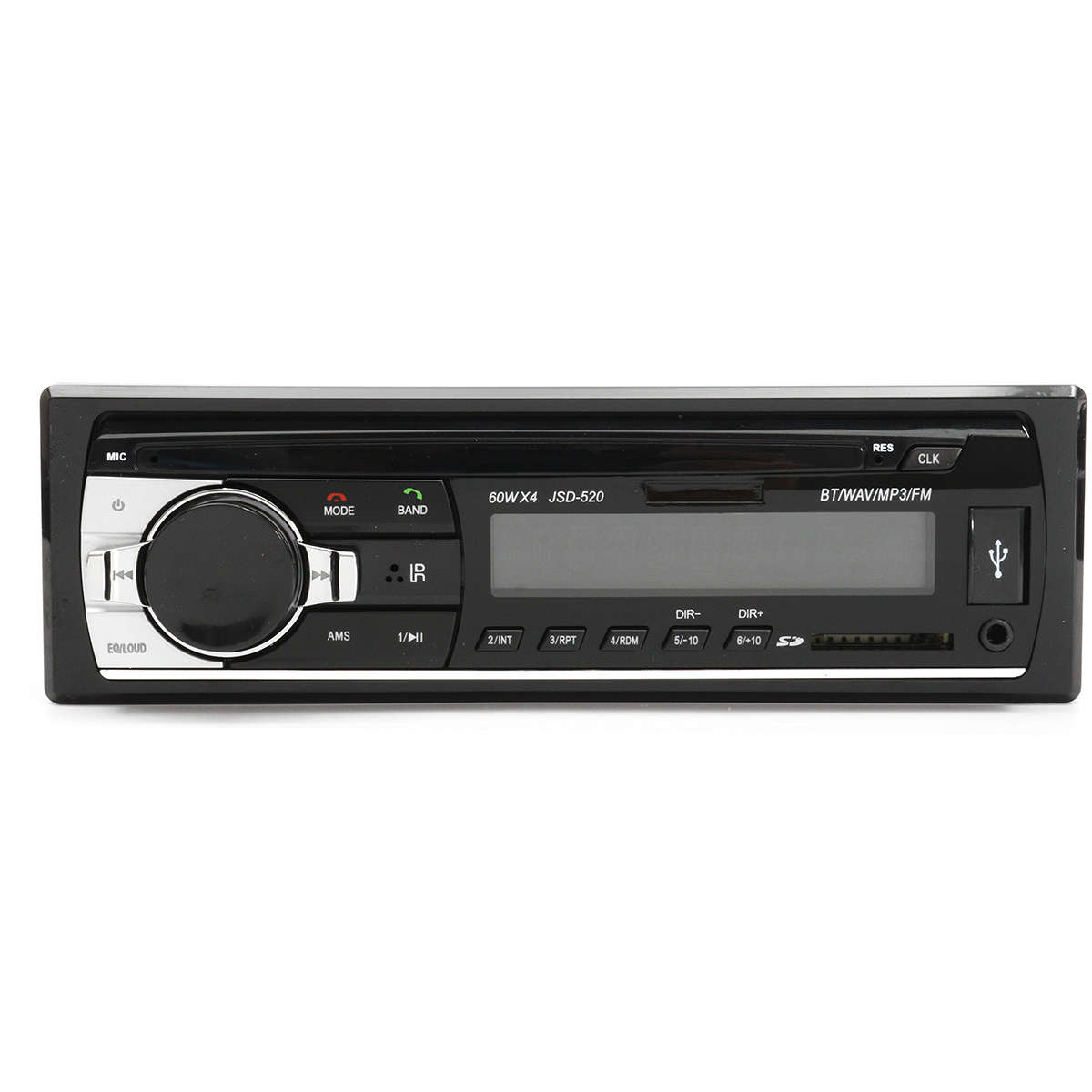

Name: 24V Car Audio Bluetooth In Dash Aux Input SD USB MP3 FM Radio Player JSD-520
SKU: 1154176
Price: 699.42 ZAR
Availability: SoldOut

24V Car Audio Bluetooth In Dash Aux Input SD USB MP3 FM Radio Player JSD-520

30 were available / new

Indicative market price: R999.00

R699.42

30% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Racer Gadgets10211

99.58 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Product code

1154176

Bob Shop ID

303417935

Package weight: 0.48 kg
Feature:
1.Elegant carry case design, with clear LCD display, LED security light
2.Support MP3/WMA/WAV/APE file playback from USB/SD Card (Maximum support 32GB)
3.Support FM Radio, automatic frequency adjustment
4.Support hands-excelent calls, answer or hand up the phone after connect the radio via bluetooth
5.Bluetooth function, play music from your phones via bluetooth
6.Volume Control/ Real Time Clock Function/ FM Radio/ Electronic Preset Equalizer Control
7.Auto memory preset store
8.Remote Control
9.Mounting Accessories included
Specification:
1.Model: JSD-520 Bluetooth Type
2.Panel Size: 188 x 150 x 58mm (Wide*Deep*Height)
3.Installation Dimension: 178 x 150 x 50mm (Wide*Deep*Height)
4.Quantity: 1 piece
5.Power Supply: 24V
6.Max. Power Output: 60W×4
7.FM Frequency Range: 87.5-108.0MHZ
8.Back Light: Blue
9.English Manual: Yes
Bluetooth Connecting Method:
Turn on your phone BLUETOOTH function, search on and connect the "CAR/btmp3" item, enter password "0000" (if needed),
press MODE button to the bluetooth function, then the MP3 Player is now available for use.
Wiring Guide:
Testing Methods:
1.Twist the RED and YELLOW wire together and connect to the anode. The BLACK wire connect to the cathode.
2.Connect one piece of the wires to the horn, do not touch the wires each other.
Installing Methods:
please DO NOT electrify the machine before you connect the wires, otherwise it will damage the machine.
1.The YELLOW wire connect to the anode of accumulator, while the BLACK cathode.
2.The RED wire connect to the car key ignition.
3.If your cars have any subwoofers or exterior antennas, you also need to connect the BLUE wire.
4.Otherwise wrap the BLUE wire with adhesive plaster for other car models.
5.Horn has positive and negative electrode, connect them according to the methods.

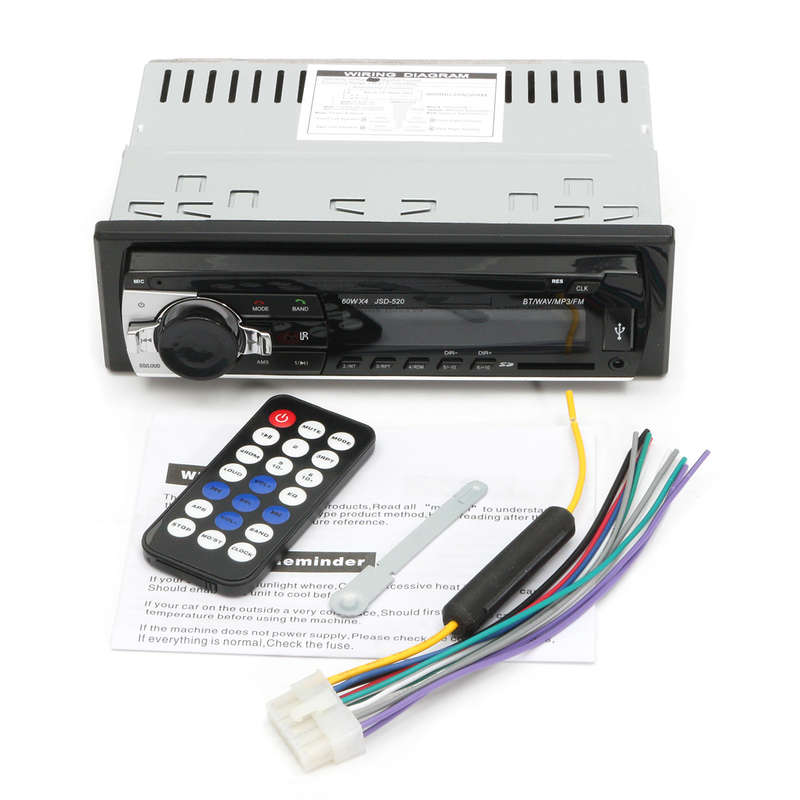

Pakcage Included:
