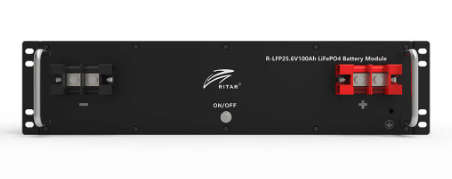

Ritar 25.6v 100ah Lithium LifePO4 2.56Kwh
SAFETY
+ Prismatic LFePO4 cells, Longer cycle life and much more safety.
+ Low voltage system, safety for application.
+ IEC62619, UI1973 certification for cell.
UN38.3, MSDS certification for system.
DESIGN
Standard 19" rack design, support rack or wall mounted.
Flexible and easily installation.
+ -20~+55°C widely temperature range.
+ Maintenance free.
BATTERY MANAGEMENT SYSTEM (BMS)
+ Independent protection for charge and discharge.
+ Over charge protection, over discharge protection and over temperature, short circuit protection.
Nominal voltage [V] 25.6
Nominal capacity [Ah] 100
Total energy [kWh] 2.56
Max. charging current [A] 100
Max. charging current [A] 29.2
Charging voltage [V] 27.6-28.8
Max. discharging current [A] 100
End of discharge voltage [V] Product dimension [W*D*H] 442*300*110
Product weight [kg] 23
Protection class IP20
Operating humidity 0-95% RH (No condensing)
Operating temperature range Communication interface Standard Product: Charge: 0 ~ +55°C; Discharge: -20 ~ +55°C
Cycle Life 6000
Protection OVP, LVP, OCP, OTP, LTP protection.
Certification UN38.3, MSDS, CE
Series Support No support
Parallel Support Yes, Max 15pcs
Battery Includes:
-Bolts
-Wall & Rack Brackets
-Manual
-Communication Cable
PRODUCT WARRANTY
5 Years Repair Warranty
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
