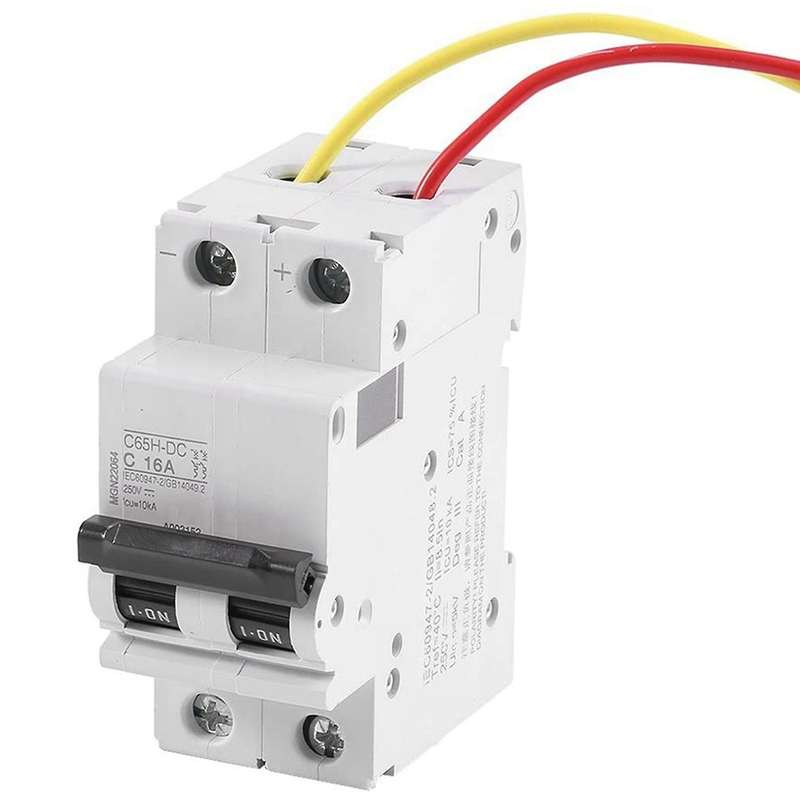

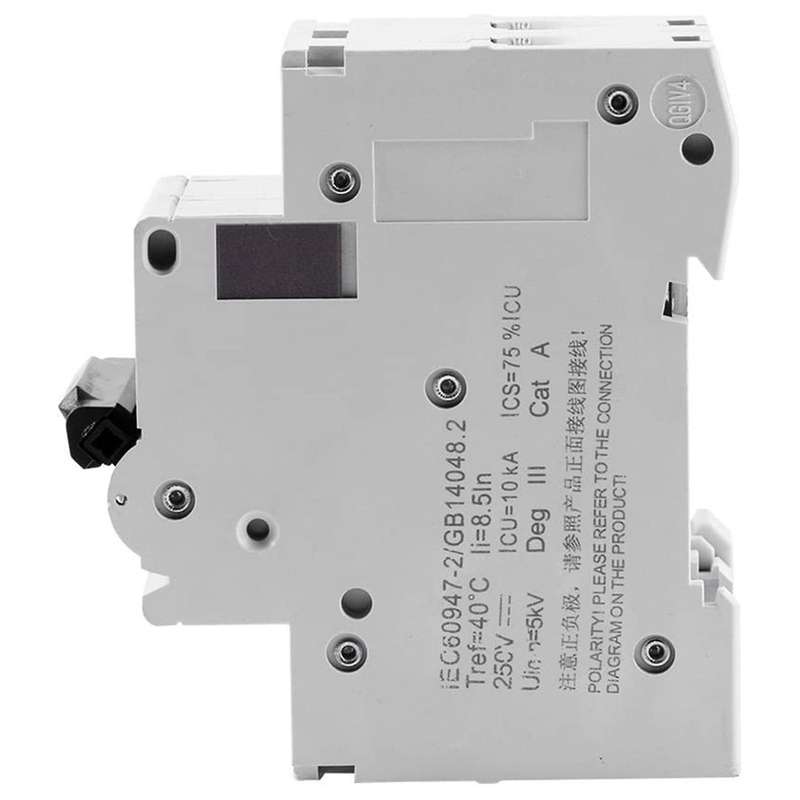

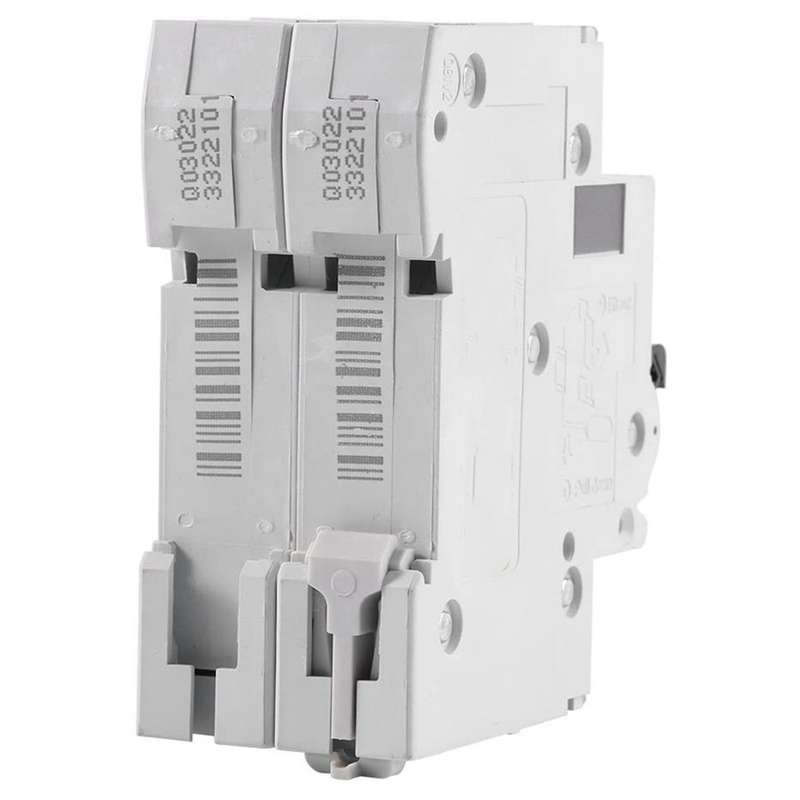

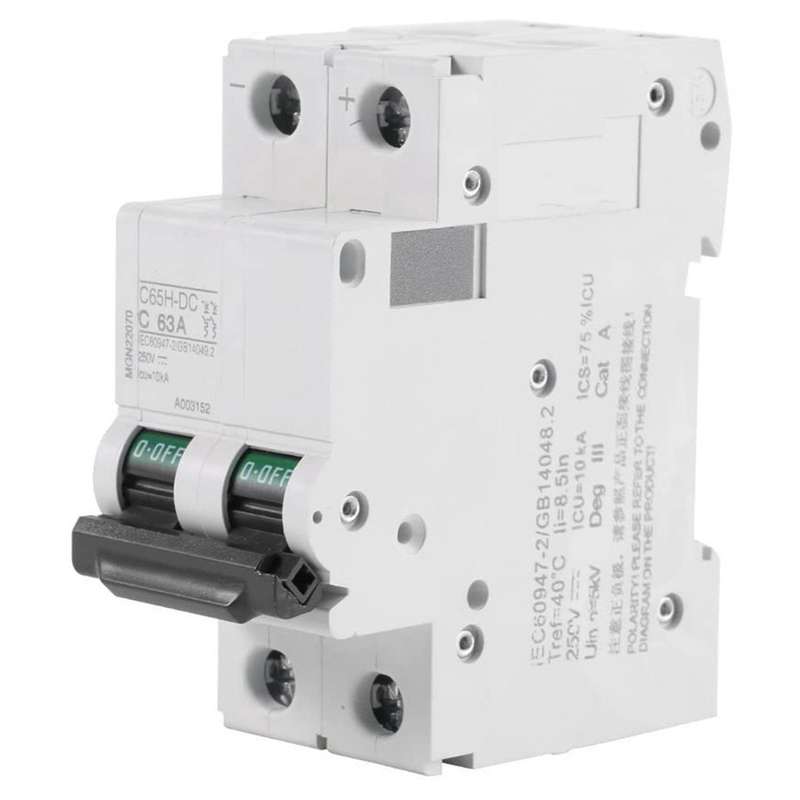

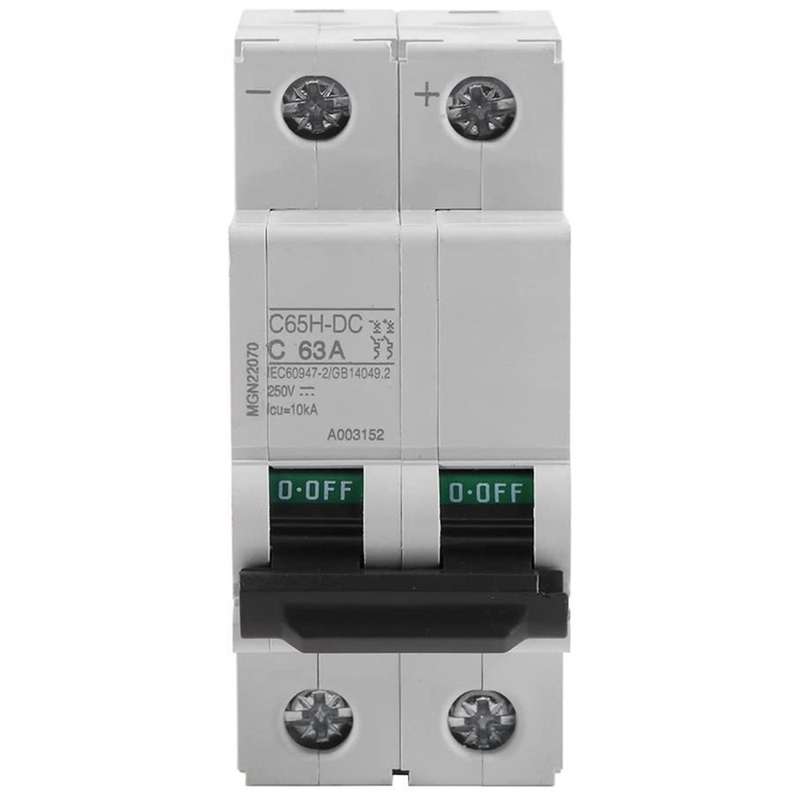

250v Circuit Breaker for Solar Panels Grid System Din Rail Mount(63a)

This is a great circuit breaker used to protect a low-voltage DC electrical system from damage caused by excess current resulting from an overload or short circuitFast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It can also work as on-off switch for DC load circuitsDC breaker is more powerful than AC breaker to extinguish arcs. It means that our low-voltage breaker can be used at the same level voltage of DC and AC circuit systemModular structure, can be easily installed on the DIN standard guide rail in distribution box, bistable locking clip, the installation more convenient. Suitable for isolation in accordance with industrial standards: IEC EC60947-2/GB14048.2Widely used for solar panels grid system, wind and solar hybrid system and many other DC systemsModel: C65H-DC 2PPoles: 2PRated Current: 63ARated Voltage: DC250VUltimate Breaking Capacity(ICU): 10kA Trip Characteristics: B, CBreaking capacity: Icu=10kA Rated Impulse-withstand Voltage(Uimp): 5kVCurrent Limiting Class: 3Interrupter ways: vacuum circuit breakerMechanical Life: 20,000 times (IEC 60947-2/GB14048.2)Electrical Life: 10,000 times (IEC 60947-2/GB14048.2)Isolation: Yes, Effectively breaking the instructions on the handle in the open positionImpulse withstand voltage: 5kVOperating Temperature: -25~+70Storage Temperature: -40~+85Heat & Humidity Resistance: 55, 95%RHSize: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75inchcolour: gray-whiteMaterial: plasticPackage Contents:1 x circuit breakerOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
