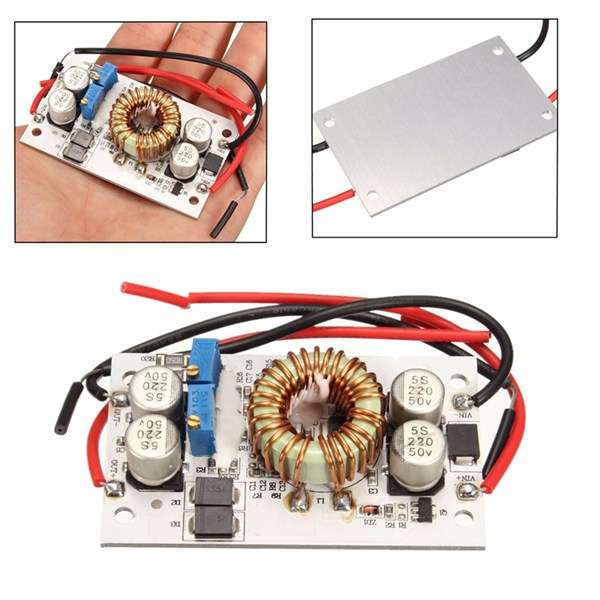

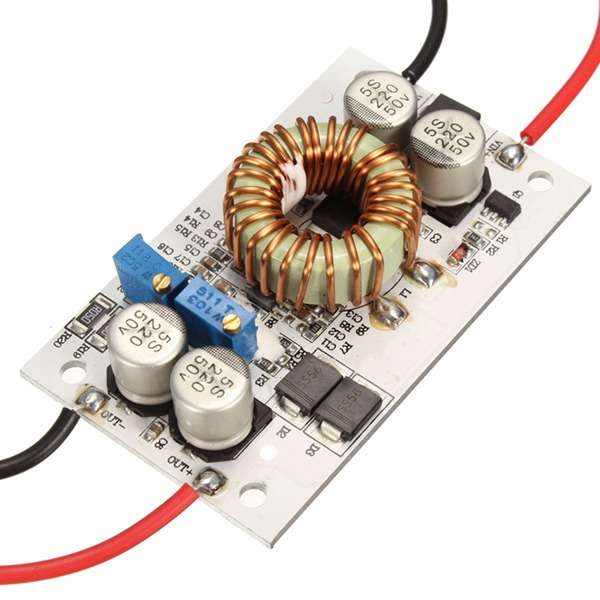

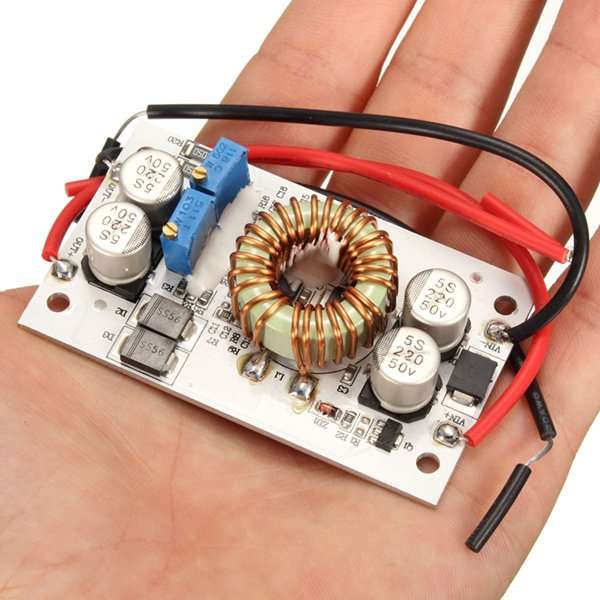

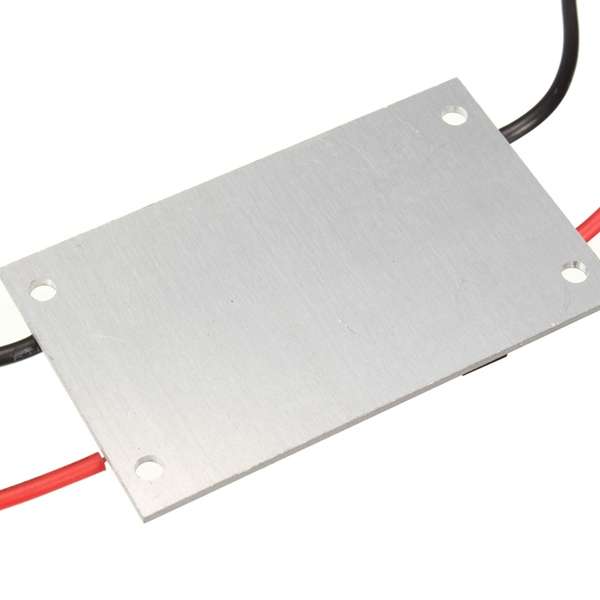

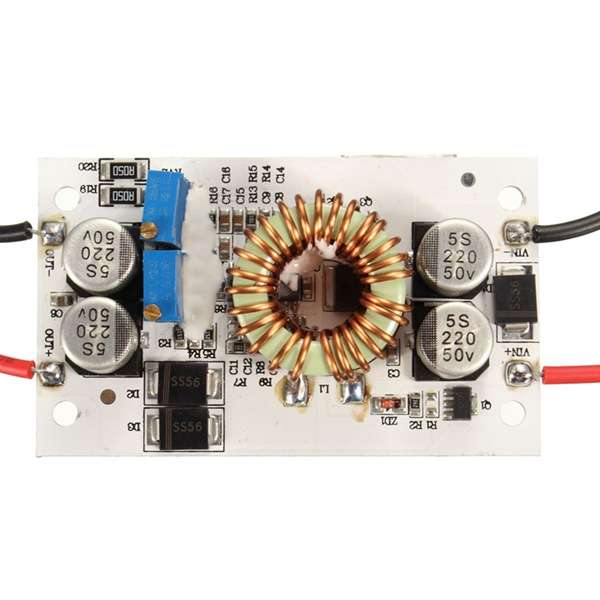

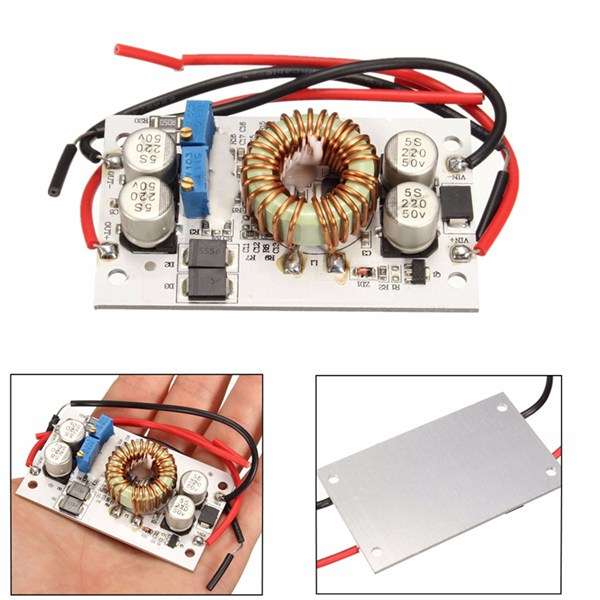

250W 12-50V (Adjustable) 10A Aluminum Board Power Boost LED Driver Module
Features:
1. Module Properties: non-isolated step-up module (BOOST)
2. Input voltage : 8.5-48V
3. Output voltage: 12-50V (adjustable)
4. Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A)
5. Output constant Current: 0.2 - 8A (please don't short the output to adjust the current)
6. Easy to drive 65W 90W dual-core notebook.
7. Conversion efficiency: 96%
8. working frequency: 150KHZ
9. Output Ripple: 2% (MAX) 20M-bandwidth
10. Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C, lower power use, or to enhance heat dissipation)
11. Dynamic response speed: 5% 200uS
12. Over circuit protection: yes
13. Input Reverse Polarity Protection: yes

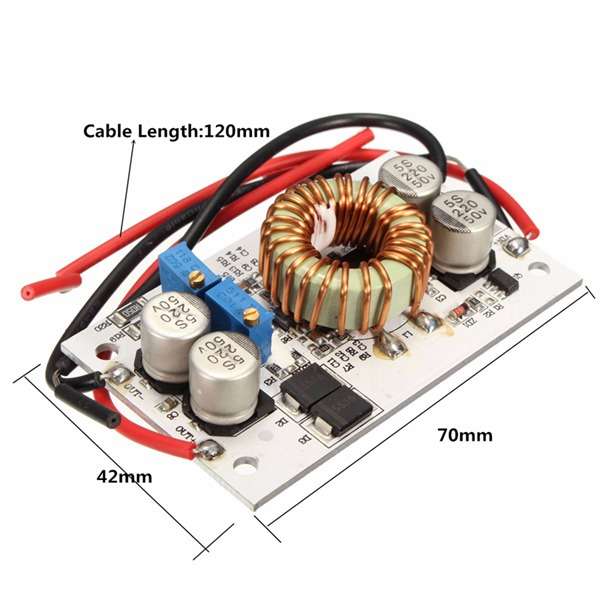

14. Size: 70 x 42mm
Note:
Please pay attention to the Voltage/Current/Power of your own devices. To ensure product safety,check whether this item is compliant with your own devices before you buy it!
Package includes:
1 x 250W DC-DC Boost Converter
