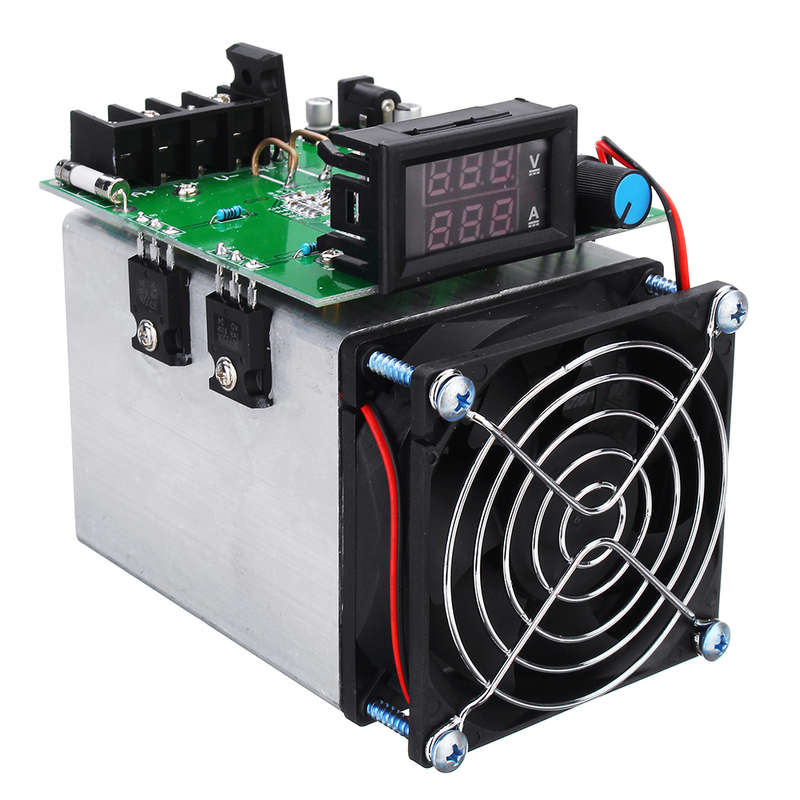

250W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester

Description:

This Electronic Load has the high speed fan, which can automatically change the speed. High quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity. Features:

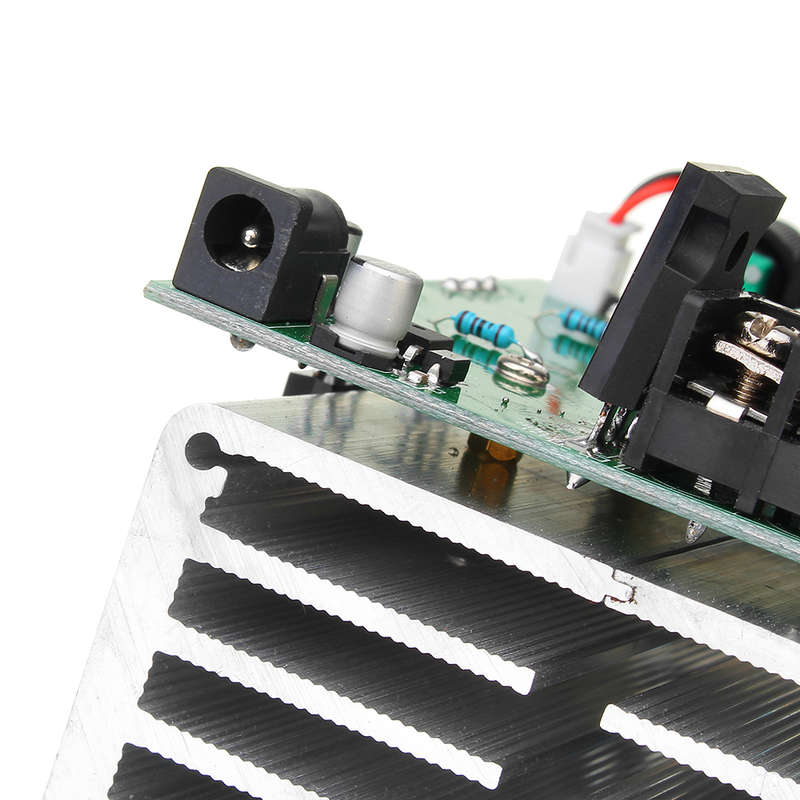

The high speed of the fan can change according to the heat sink temperature. Protection of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity. Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time. Durable construction for long-lasting performance. Professional test module for detecting discharge battery capacity. Specification:

Power Supply: DC12V±5% Fan Current: 0.72A Constant Discharge Current Range: 0-10A(whole machine) Working Mode: Single Mode Constant Current(CC) Discharge Current Max. Error: 0.7%-0.01A Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2% Max. Power: 250W Input Interface: 5.5 x 2.5mm Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch Weight: 385g

Operation Instructions: Connect with DC 12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity! Set constant current through knobs. Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 250W Package Included:

1 xBattery Capacity Tester Module

Note:

If you are looking for a similar product of 100W, you can search for
