25CM PCB Ruler For Electronic Engineers Measuring Tool PCB Reference Ruler Chip IC SMD Diode Transis

20 available / new

R354.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3463

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641104991

Description:

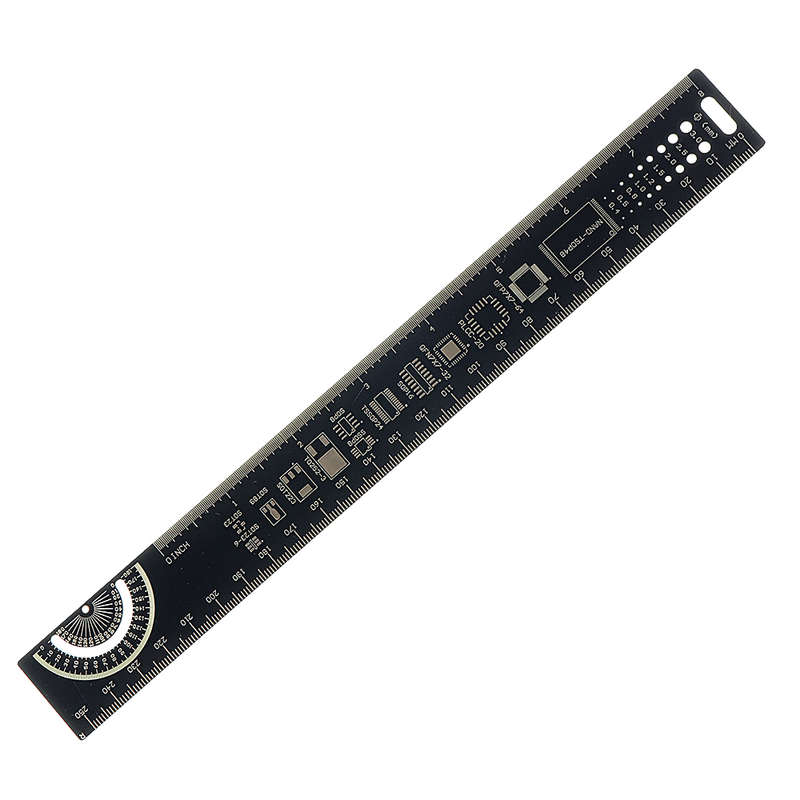

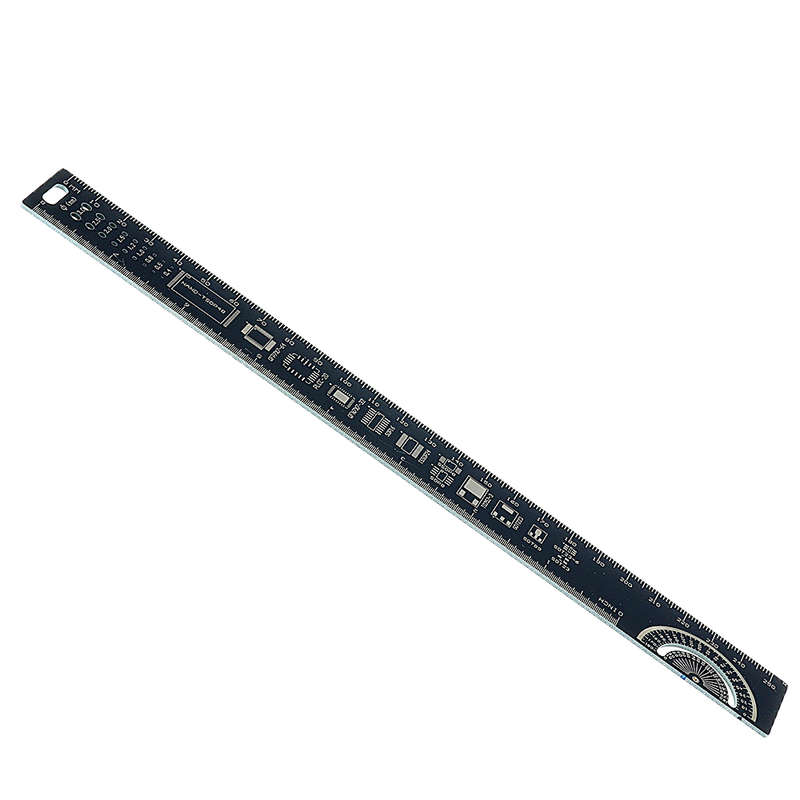

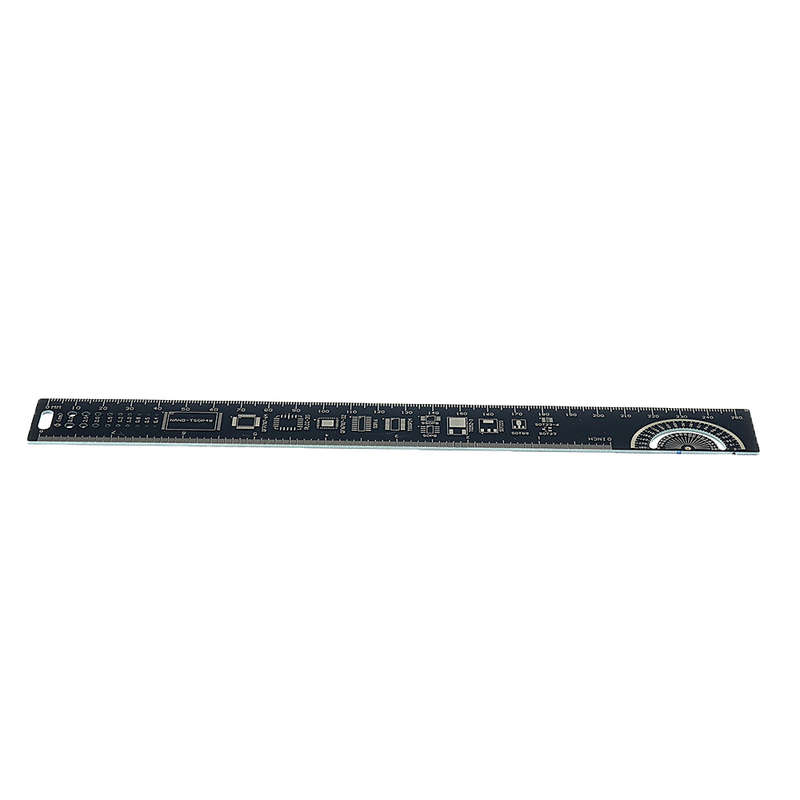

This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
We printed this information on FR-4 gold-plated PCBs.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

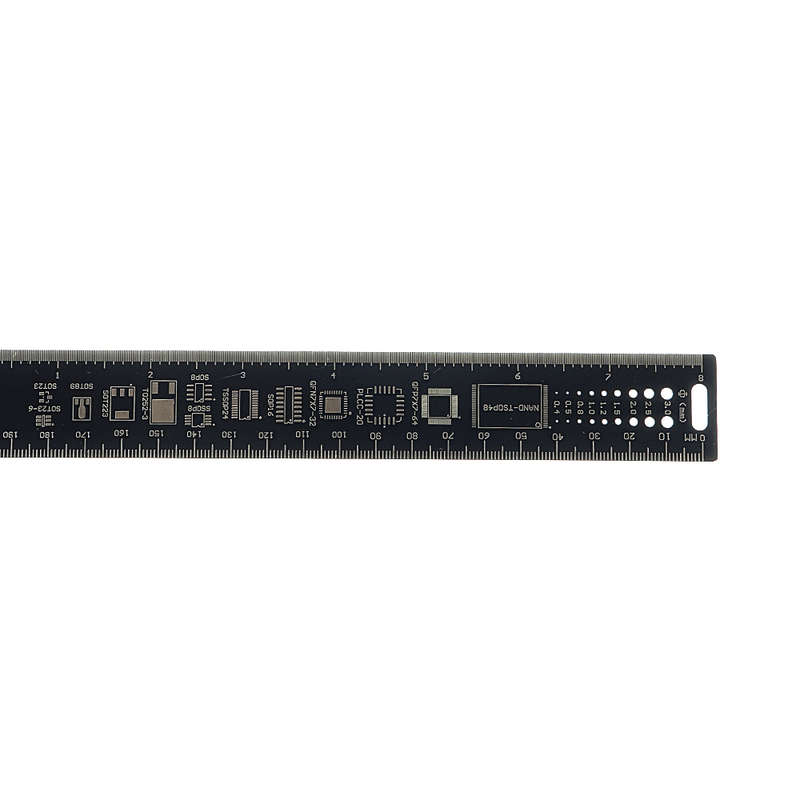

Positive Specifications:

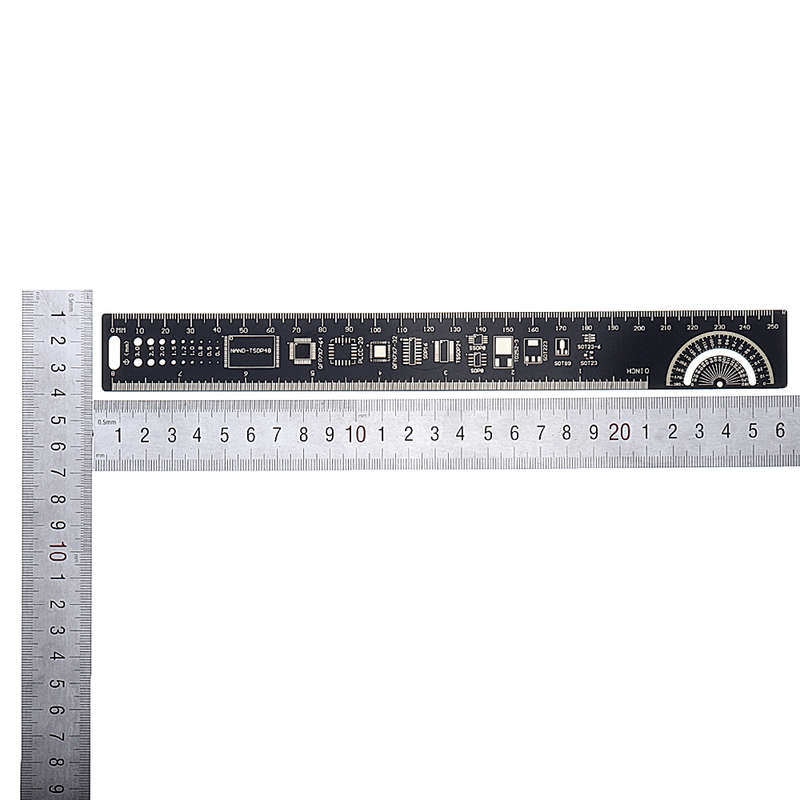

The measurement length: 25cm
Measuring length: 10 inches
Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Slot for hanging straightedge

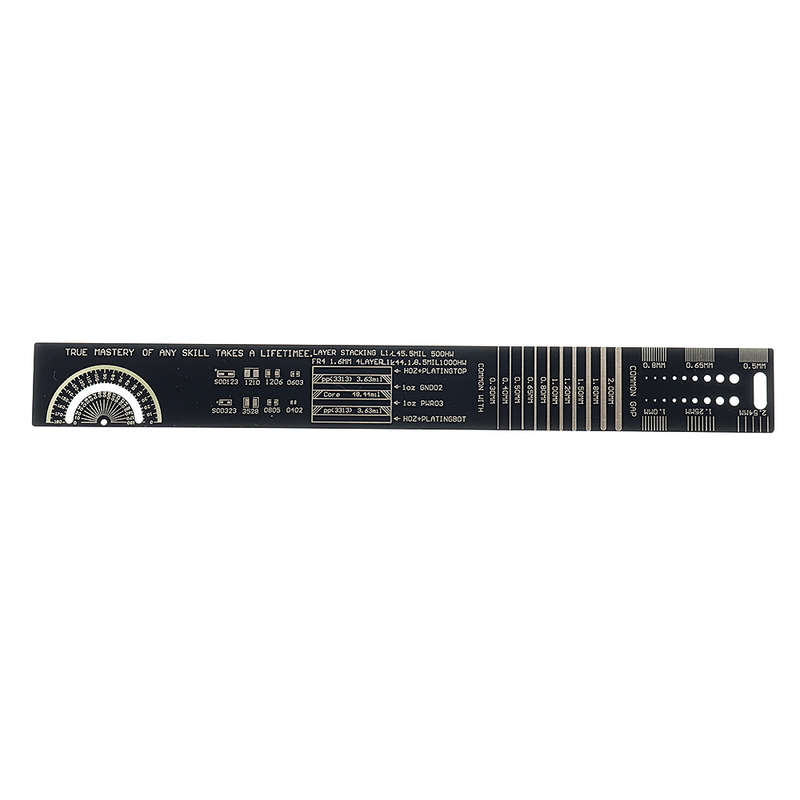

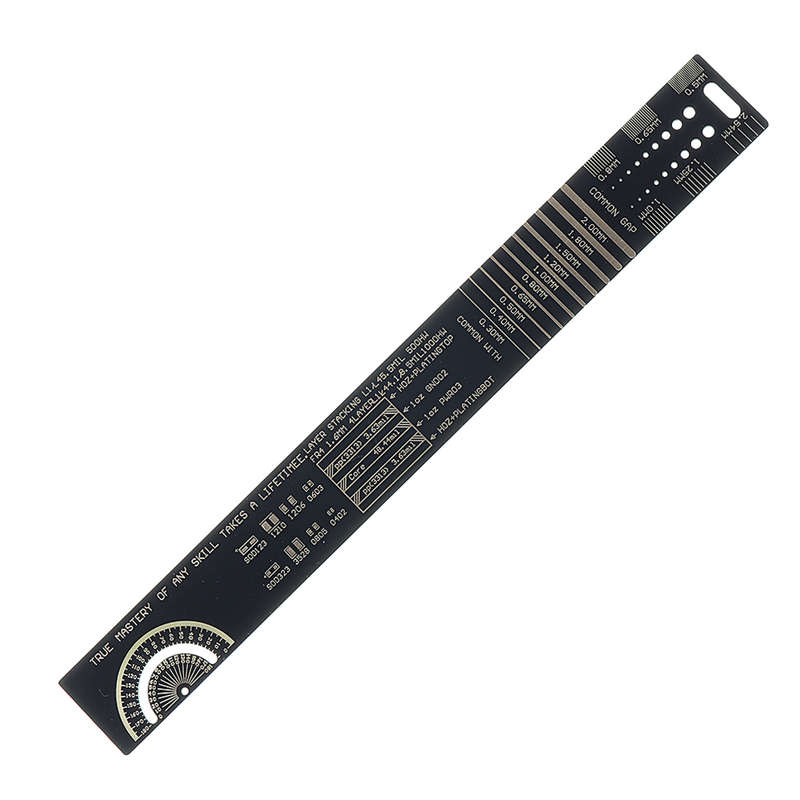

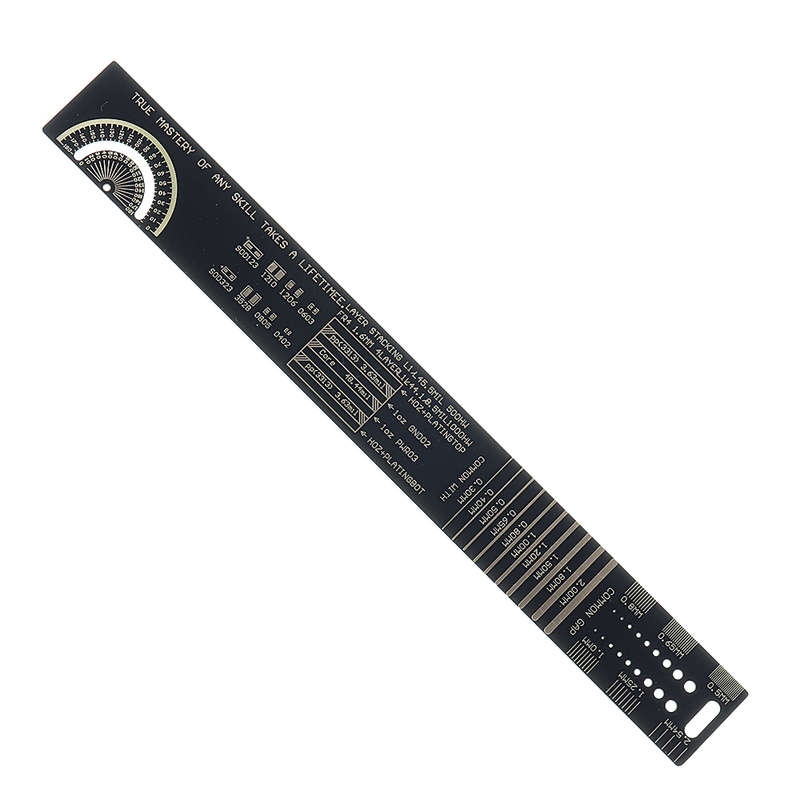

Back Specifications:

Commonly used line width reference (unit: mm)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4

Package included:

1 x 25cm Multifunctional PCB Ruler
