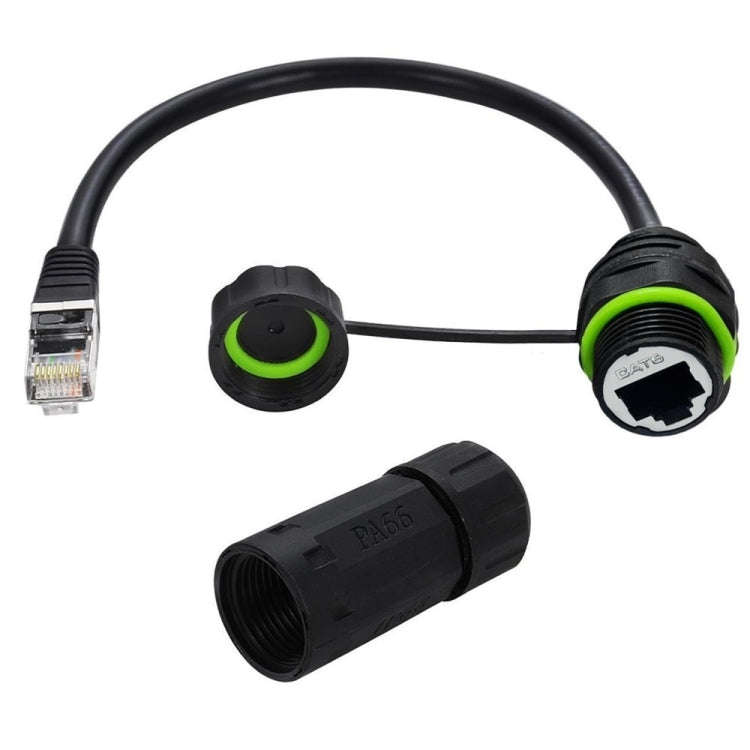

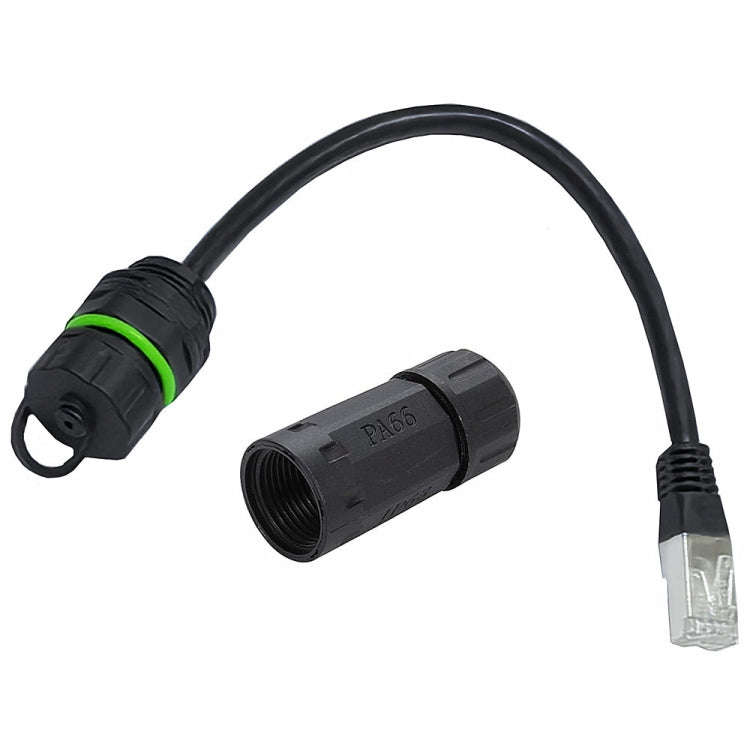

25cm RJ45 8P8C Male to Female IP68 CAT6 Ethernet Connector(Black)

1. This connector is used to convert standard CAT5/5e/6 patch cords into waterproof products for Ethernet connections in harsh industrial or outdoor environments. The sealing gasket provides optimal protection against the ingress of moisture and other contaminants.
2. Adopts the standards-based RJ45 connection system to ensure compatibility with existing hardware.

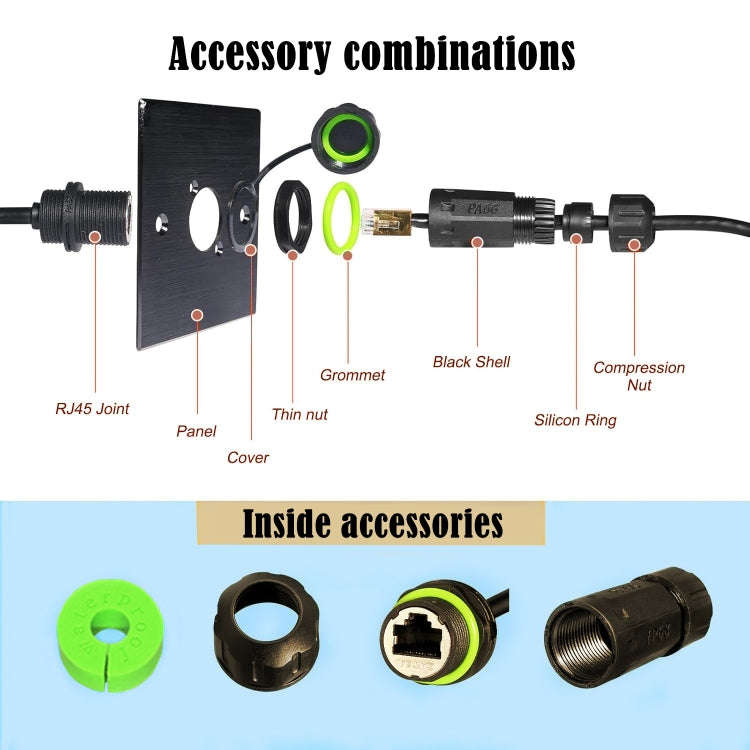

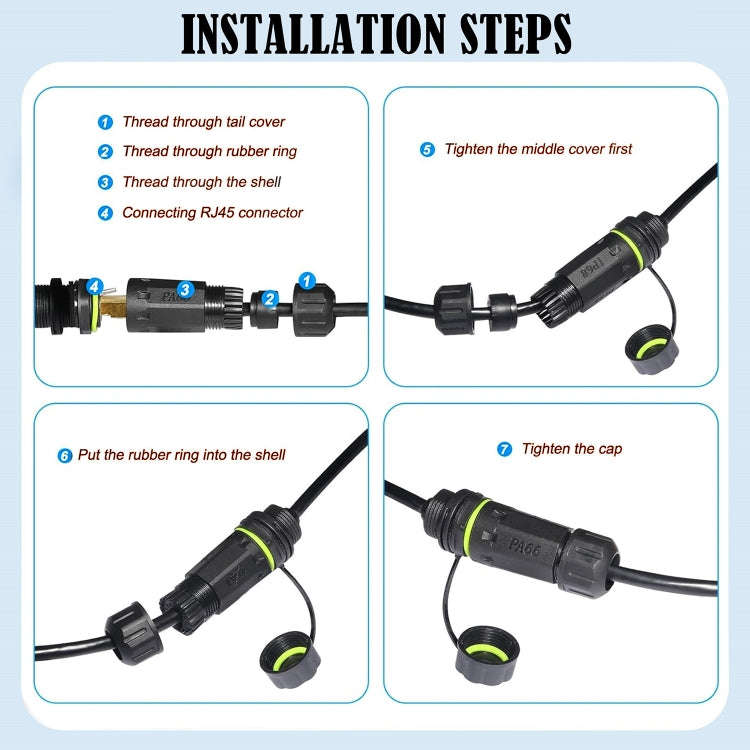

3. Easy installation: with small, space-saving RJ45 female-to-female field-installable coupler, no soldering and no installation tools required.

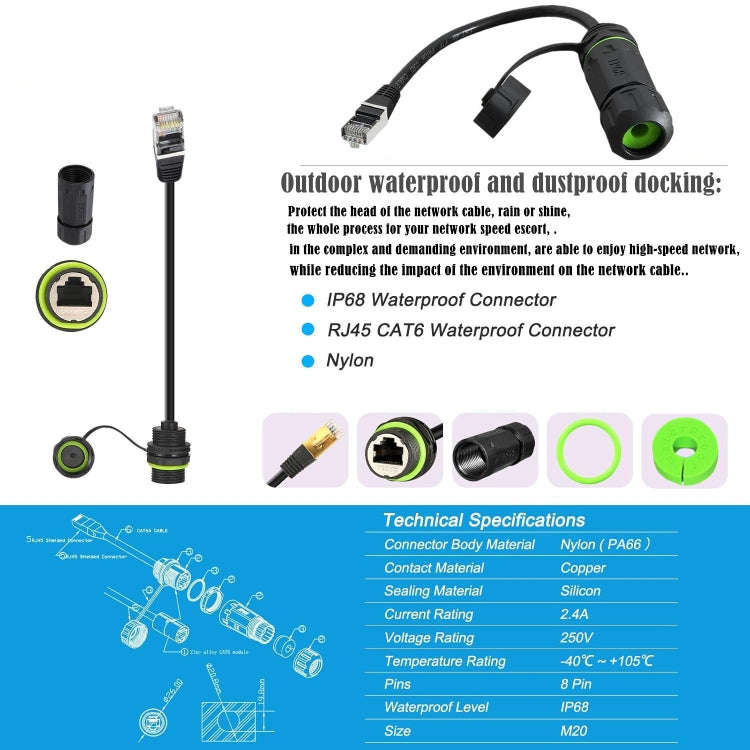

Product specifications
Product material: Shell: nylon PA66; Socket contact pin: 0.5mm diameter phosphor copper wire, contact pin gold-plated; Waterproof ring: silicone

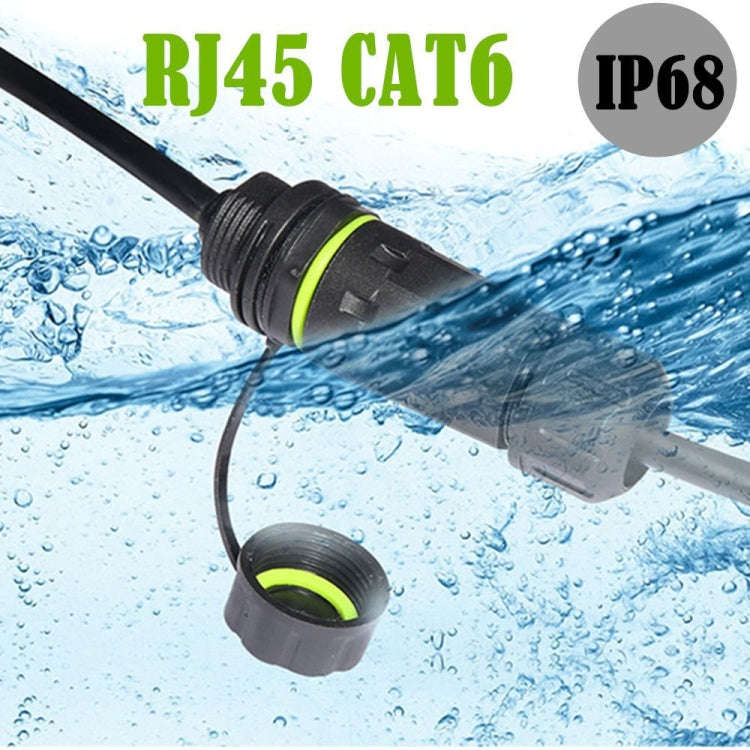

Waterproof grade: IP68
Flame retardant grade: UL94V-0
Connection method: plug type + threaded lock

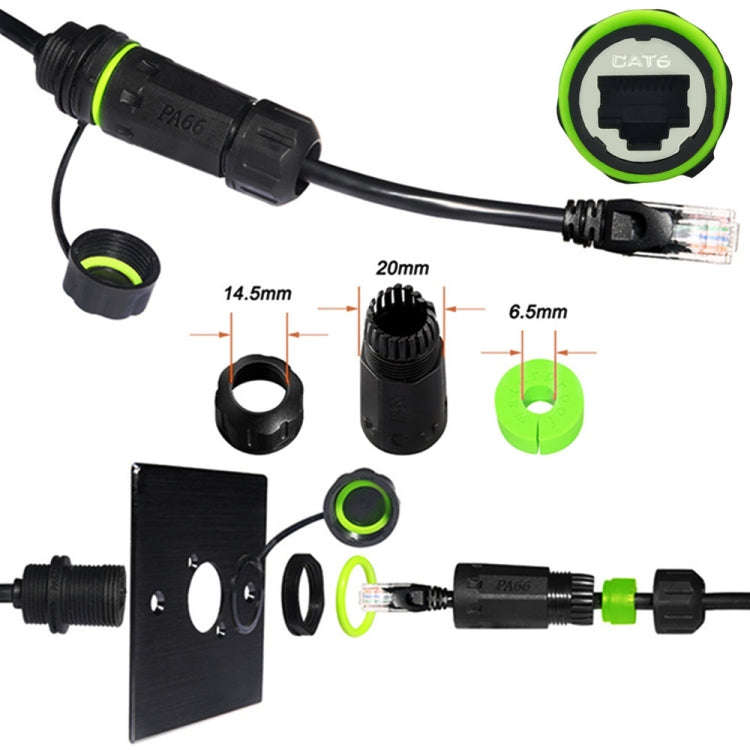

Connector wiring range: outer diameter 3-8mm
Shell wall thickness: thread type: more than 3mm, through hole type: 0.3-5mm
Installation size: M20x1.5

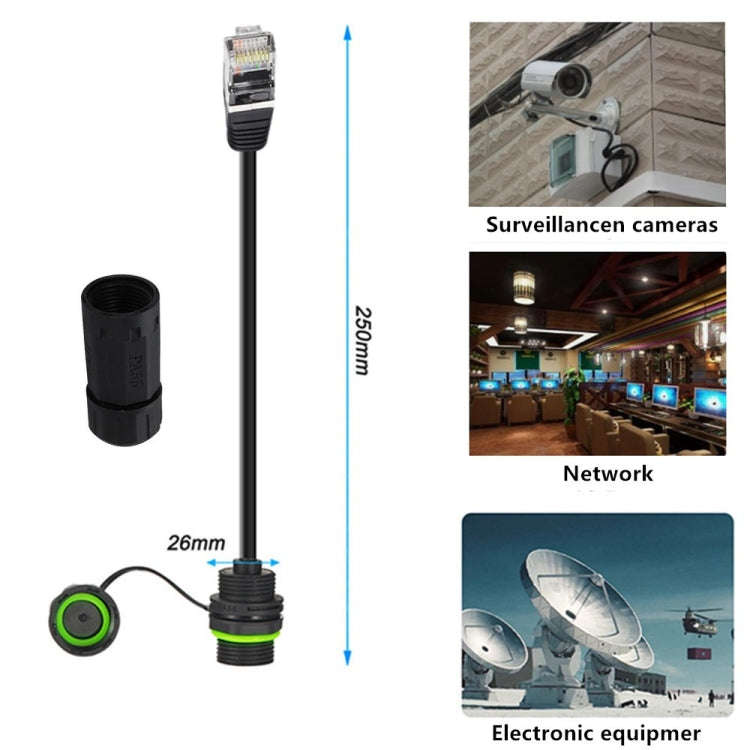

Network cable length: 25cm
Connector transmission classification: CAT6 CAT6 transmission speed range Applicable to Gigabit and 10 Gigabit Ethernet speeds

Electrical parameters:
Rated current: 2.4A
Rated voltage: 250V
Insulation resistance: greater than 500M
Compressive strength: AC1000V 50Hz/60Hz 1 minute
Contact resistance: less than 10M

Environmental conditions:
Working temperature: -40 to 105 degrees Celsius
Storage temperature: -25 to 85 degrees Celsius
Atmospheric pressure: 86 to 106 kPa
Relative humidity: no more than 90% RH
