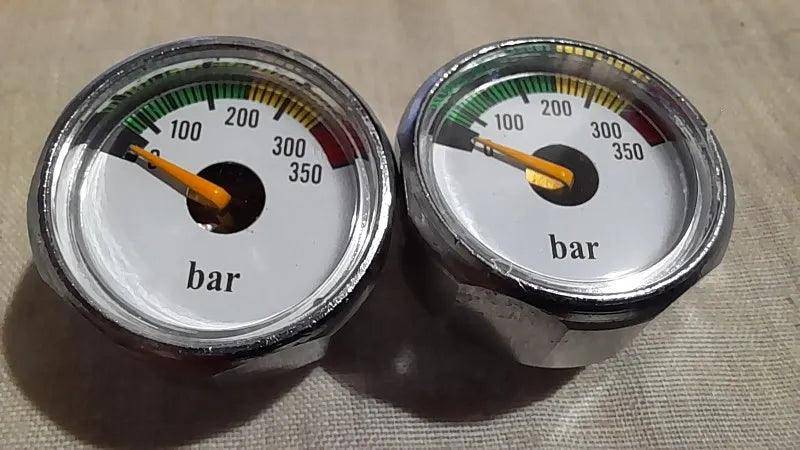

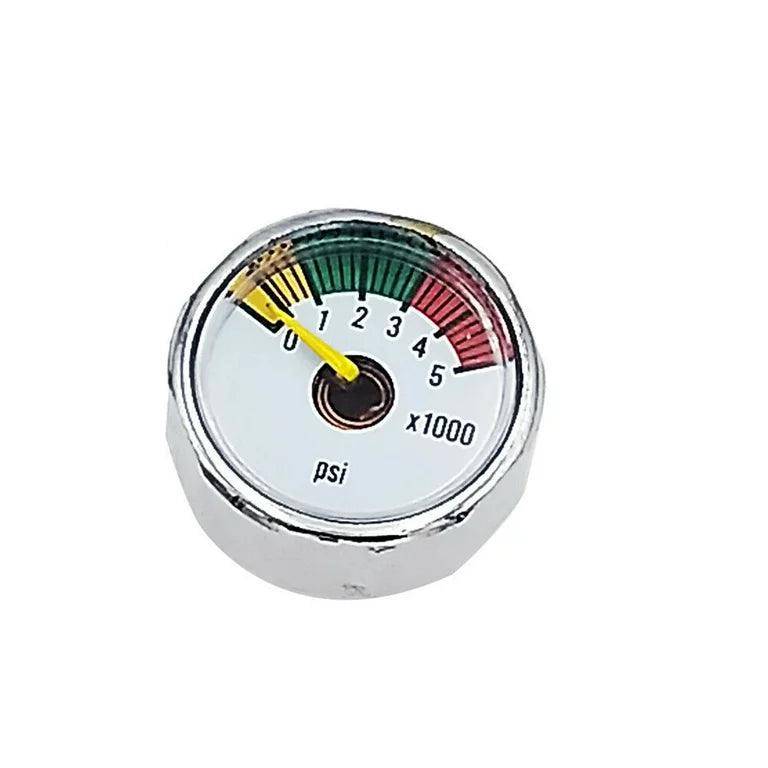

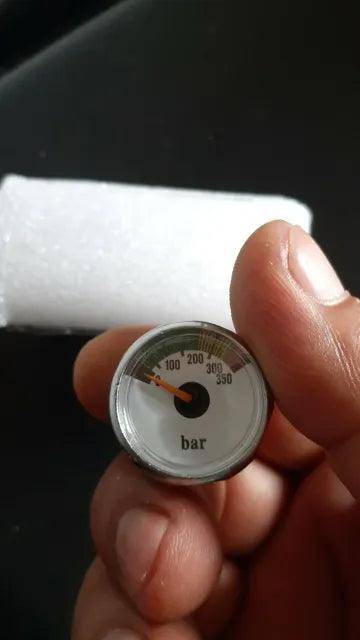

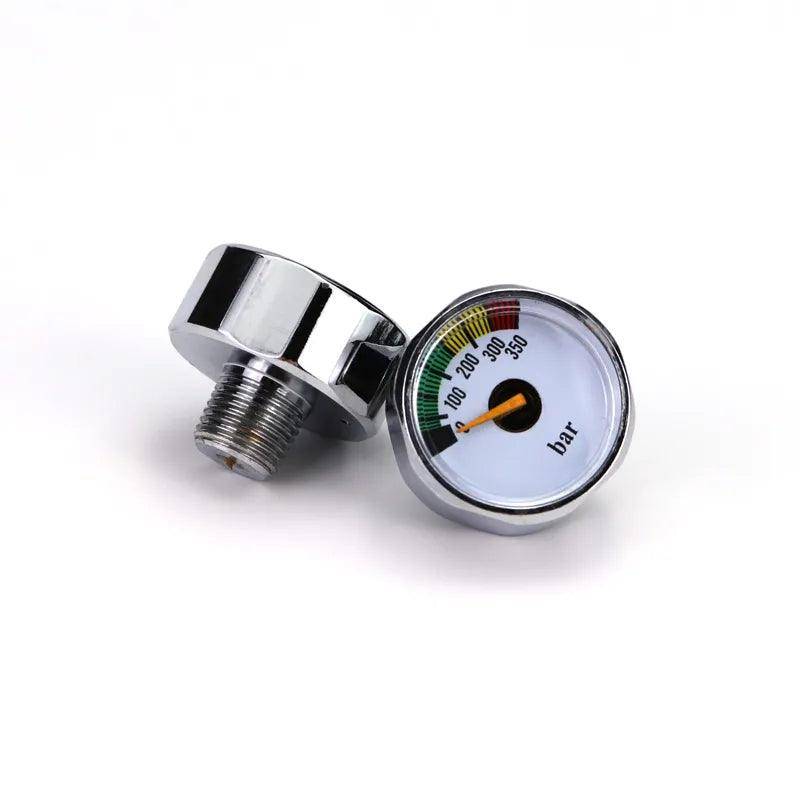

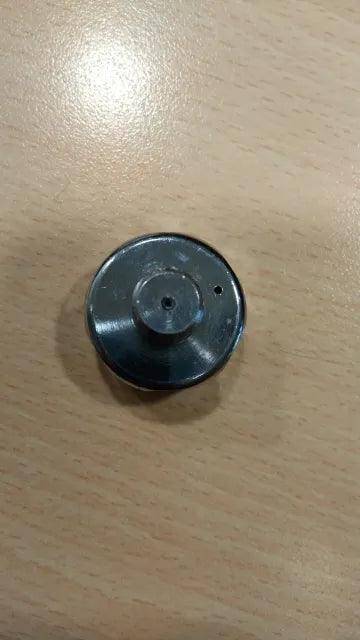

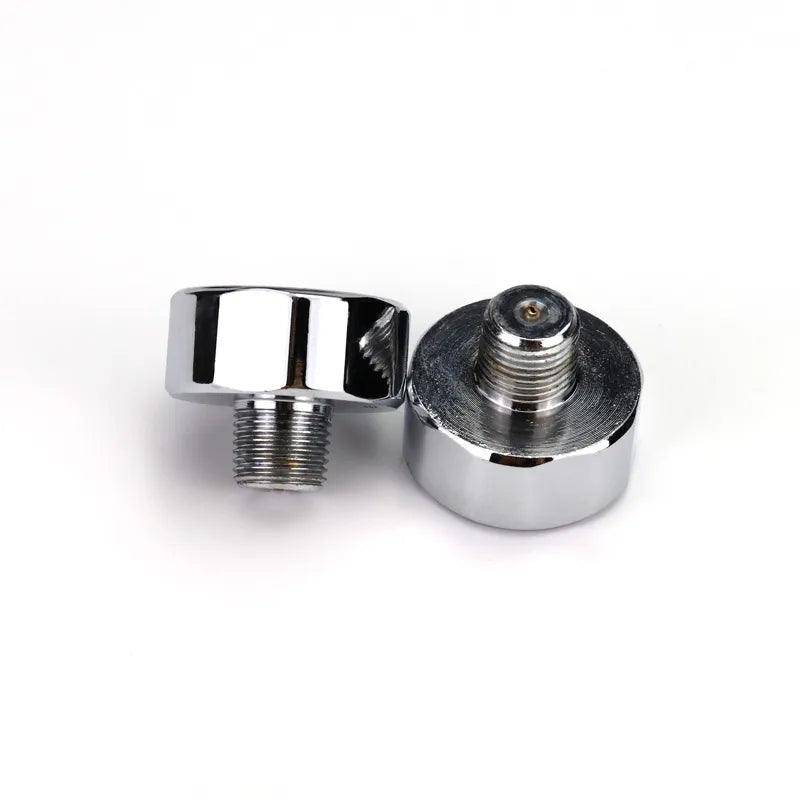

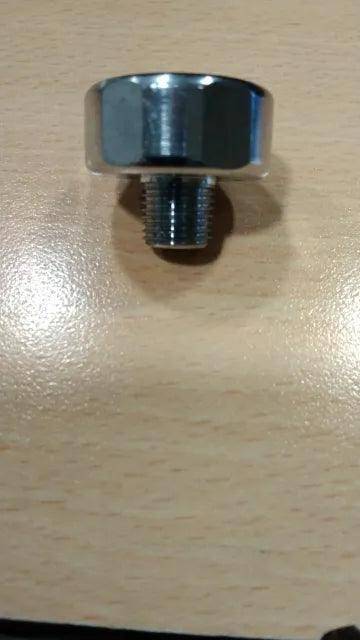

M8x1 male threaded gauge, suited for certain applications. For High Pressure Air measurement only, up to 300 BAR.
Not to be confused w/ 1/8" BSP / M10x1 thread types.
Nickel-clad exterior for corrosion resistance. Glass face w/ protective removable film layer over it.
Readings are on a white, non-luminious (GITD) backing. Indicates both BAR and PSI.
***
Technical Specifications;
Gauge face | ΓΈ23,79mm |
Gauge face height | 11mm |
Input Threading | 7,90x1mm (M8x1) |
Thread Length | 9,36mm |
Measurement unit(s) | BAR & PSI |
Pressure rating | 300 BAR / 4351,13 PSI |
Note: | Seal not included, polygonal face for tool-toggling |
