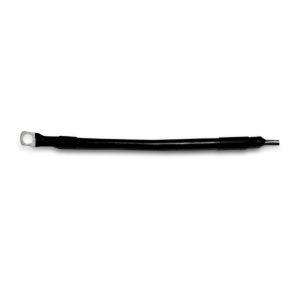

25mm2 3 AWG DC Battery Cable 20CM Black With 8mm Ring and Pin Lugs

25mm2 3 AWG DC Battery Cable 20CM Black With 8mm Ring and Pin Lugs

DC Battery Cables for battery to battery or battery to inverter connections. Hydraulically crimped and insulated ring terminal lugs to minimise resistance and reduce the risk of a fire hazard.


These cables have pure copper cores compared to aluminium cores that do not have an efficient CCC (Current Carrying Capacity).While aluminium core cables are more popular on solar panel connections due to safety reasons and allow the cable to burn off internally and prevent fires, copper cables are in favor of battery connections to minimize voltage loss and current restrictions.Therefore it is critically important to have battery cables professionally crimped and adequately sized for the application. We at Livestainable will crimp the cables for you in the correct manner for your peace of mind.

Colour: Black
One End Lug: 8mm Ring Lug
Other End Lug: Pin Lug
Strand Diameter: 0.3mm
Cable Size AWG: 3 AWG
Nominal Size MM2: 25mm2
Nominal External Diamter: 10.80mm
Cable Type: DC Battery Cable
Colour: Black
Max Continious Current: 160 Amps
Max Starting Current: 295 Amps
Colour: Black
Insulation/Wall Thickness: 2mm
Max Resistance Mohm/km: 0.780
Conductor Type: Flexible annealded copper SABS 1411 Part 1 Class 5 resistance
Operating Temperature: up to 70 C
