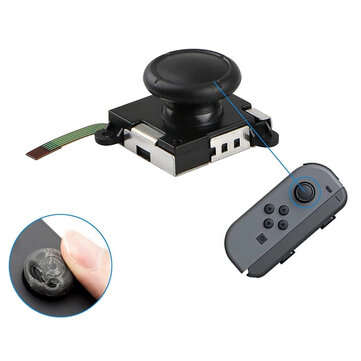

25Pcs 3D Replacement Joystick Analog Thumb Stick Repair Kit Case Cover Cap Repair Tools Set for Nint

Feature:

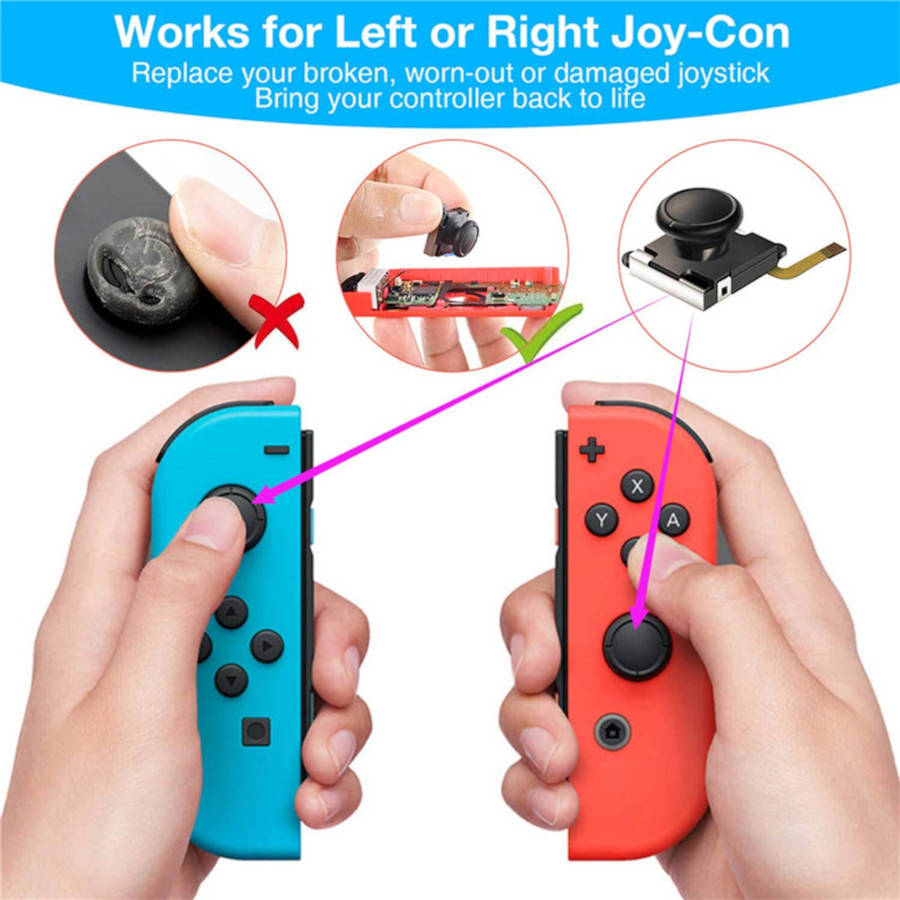

Suitable for Nintendo Switch Joy-con

Weight: 150g

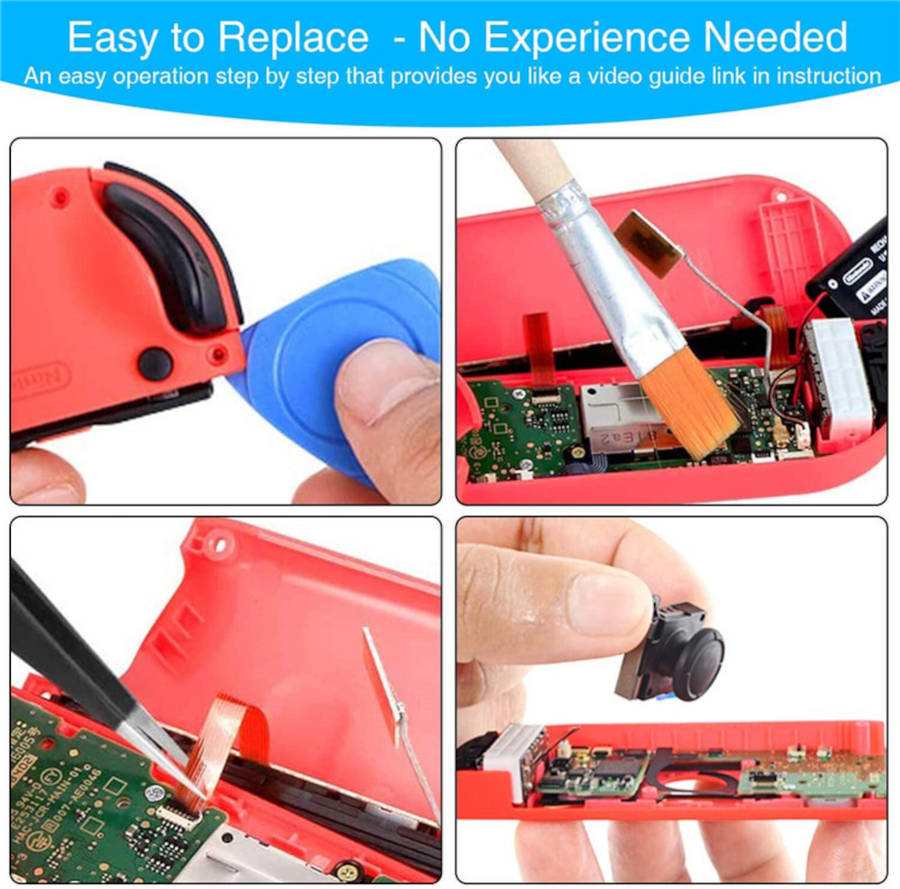

Instruction:

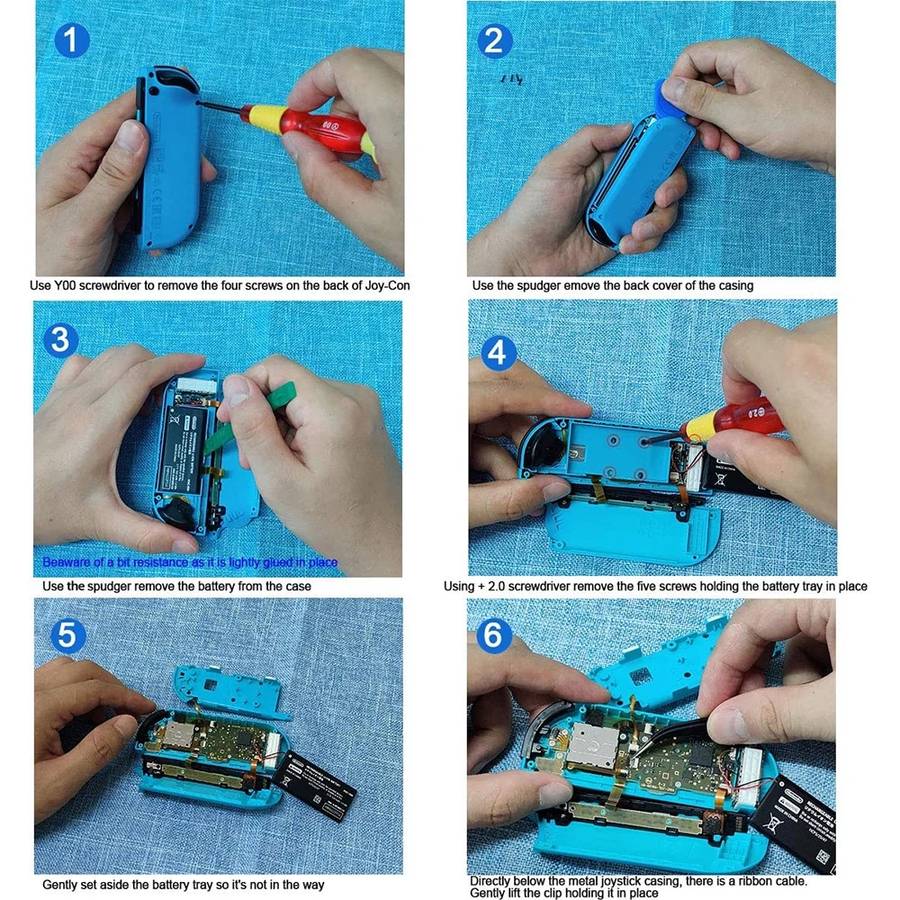

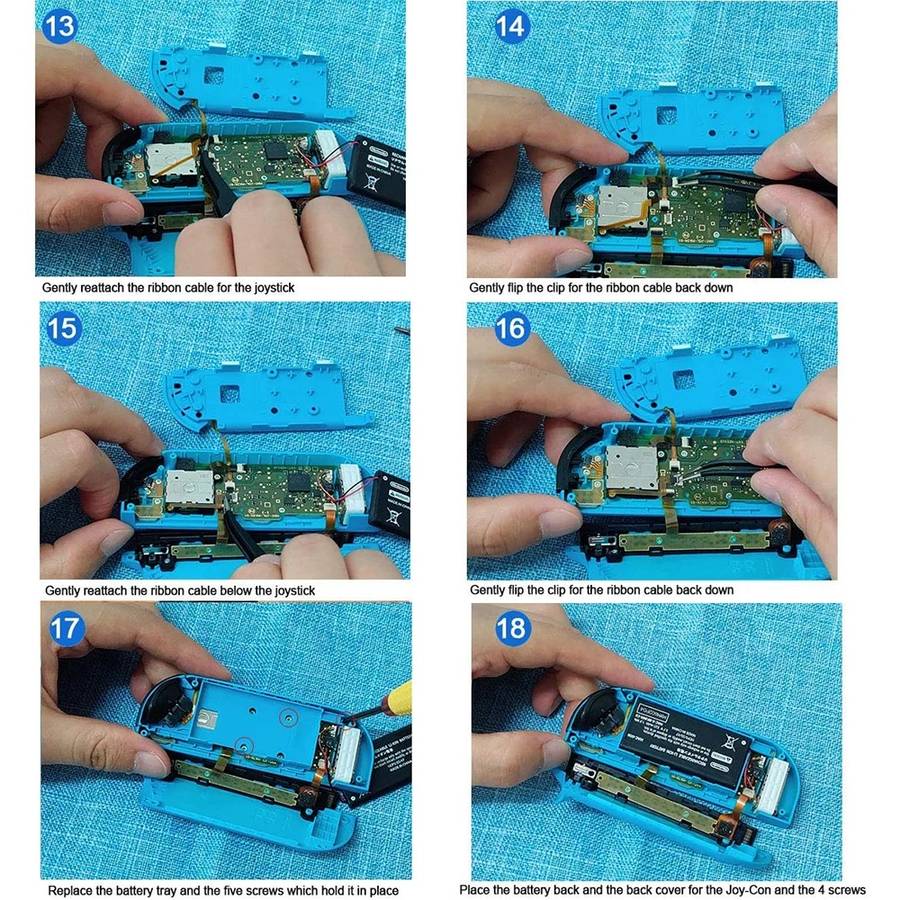

1.Use Y00 screwdriver to remove the four screws on the back of Joycon

2.Use the spudger remove the back cover of the casing

3.Use the spudger remove the battery from case

4.Using +2.0 screwdriver remove the five screws holding the battery tray in place

5.Gently set aside the battery tray so it`s not in the way

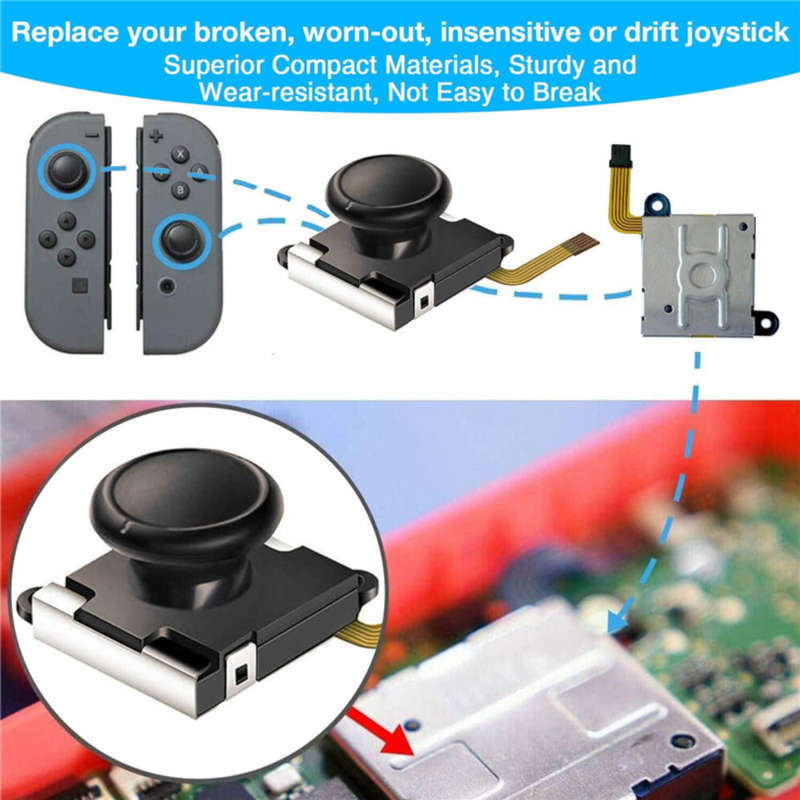

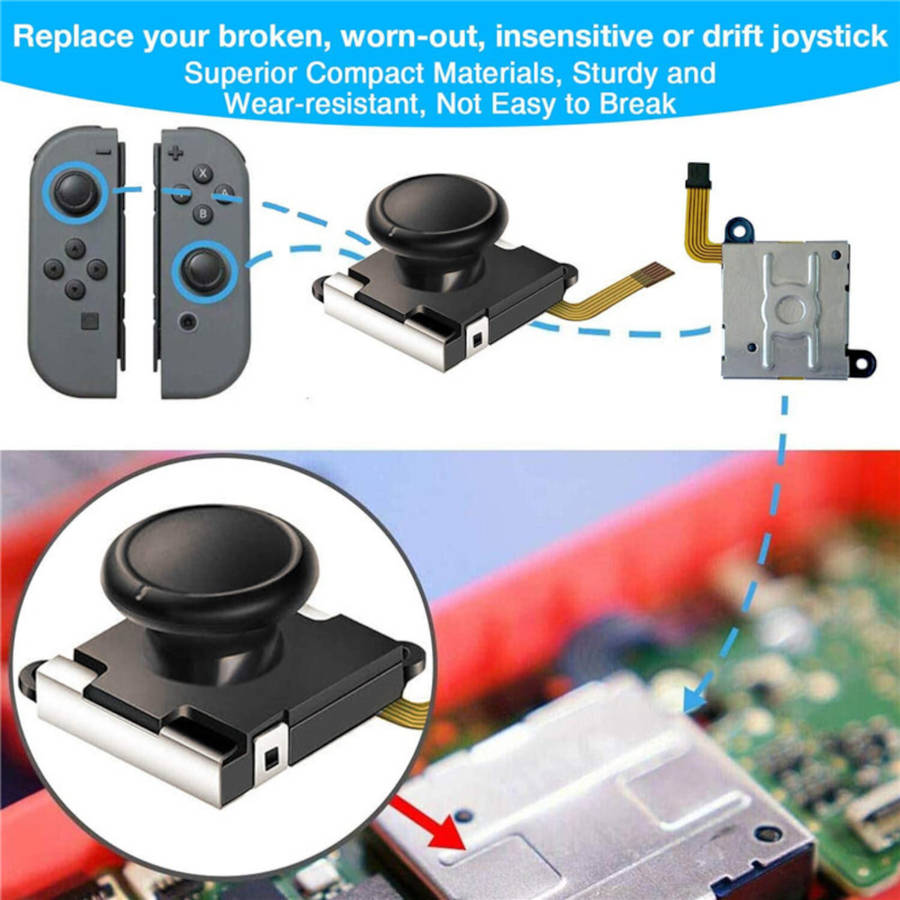

6.Directly below the metal joystick casing, there is a ribbon cable. Gently lift the clip holding it in place

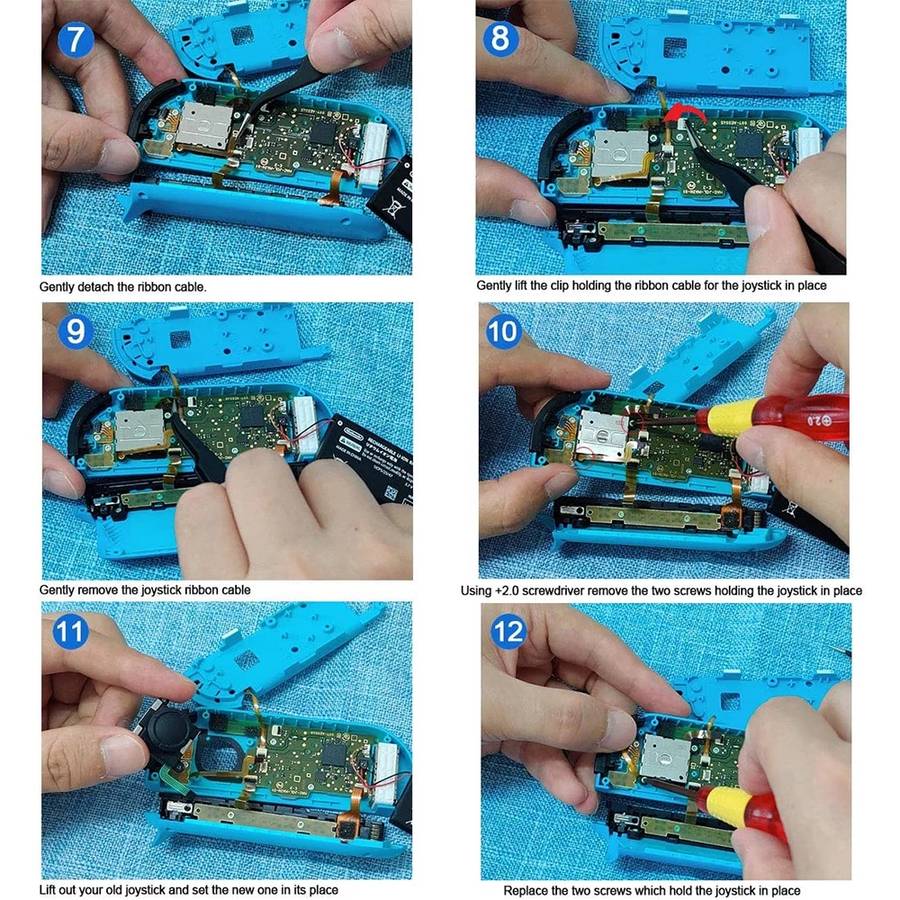

7.Gently detach the ribbon cable

8.Gently lift the clip holding the ribbon cable for the joystick in place

9.Gently remove the joystick ribbon cable

10.Using +2.0 screwdriver remove the two screws holding the joystick in place

11.Lift out your old joystick and set the new one in its place

12.Replace the two screws which hold the joystick in place

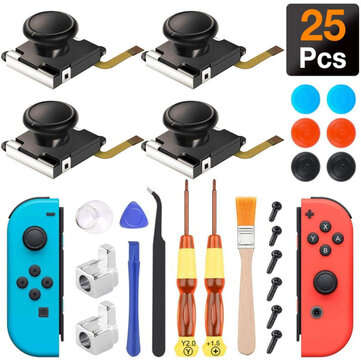

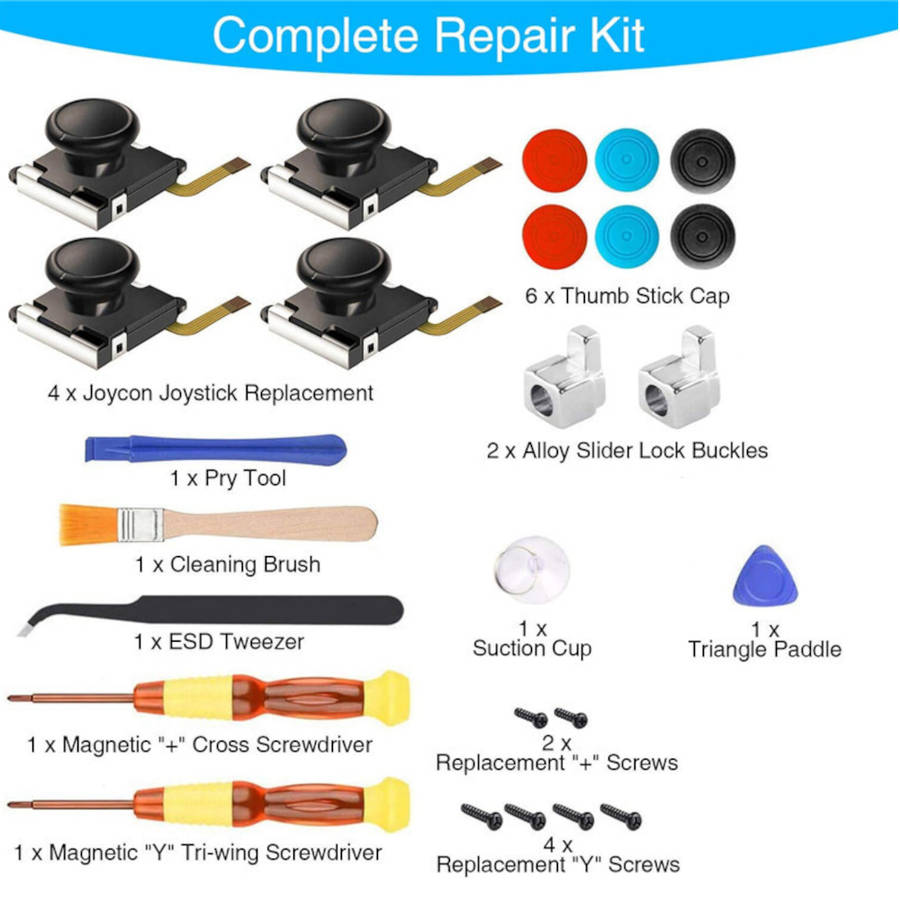

Package Included:

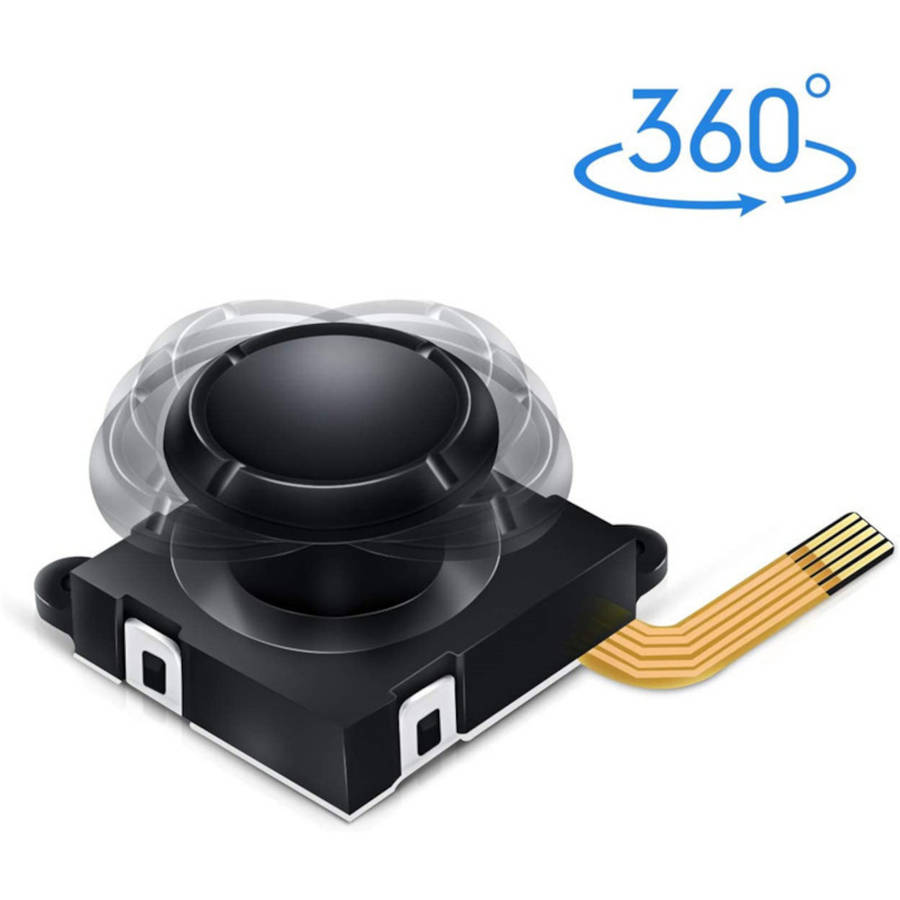

4 x Joycon Joystick Replacement (The Joycon is not included)

1 x Pry Tool

1 x Cleaning Brush

1 x ESD Tweezer

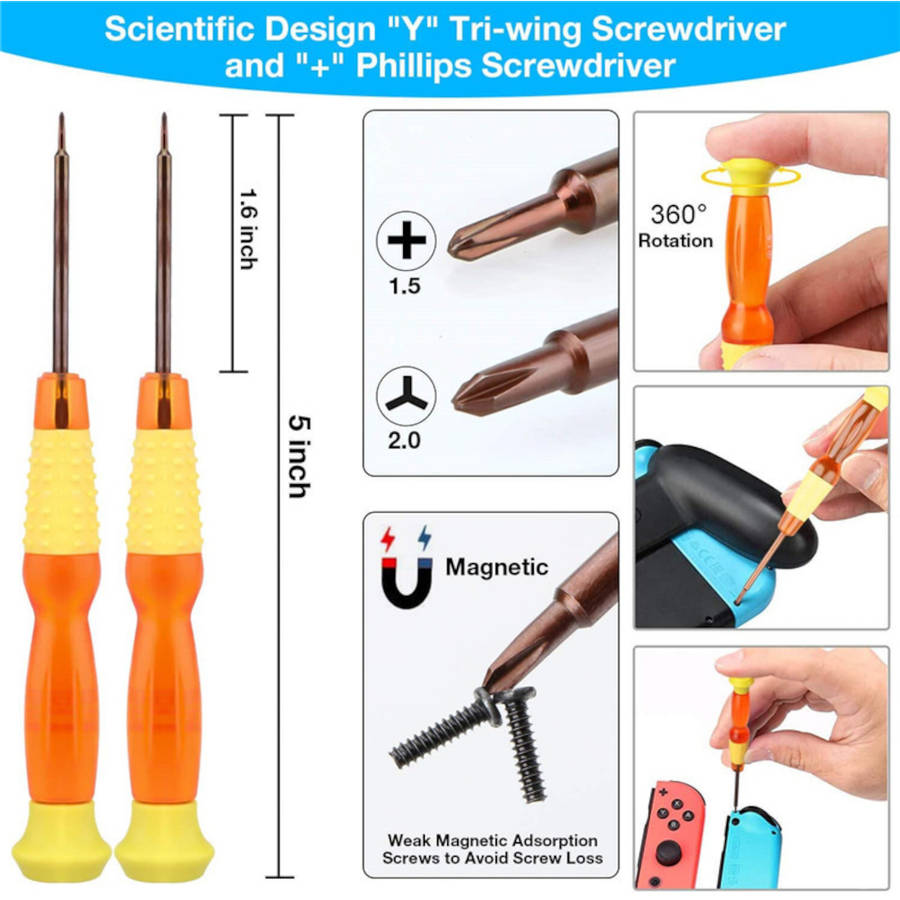

1 x Magnetic "+" Cross Screwdriver

1 x Magnetic "Y" Tri-wing Screwdriver

6 x Thumb Stick Cap

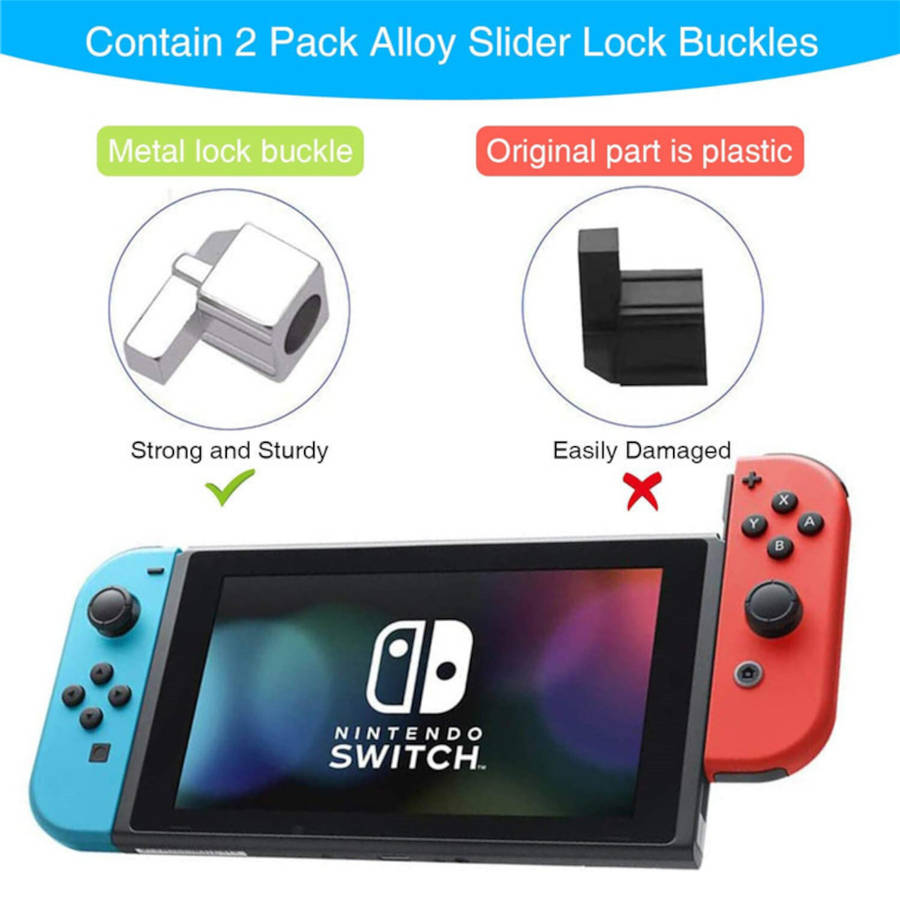

2 x Alloy Slider Lock Buckles

1 x Triangle Paddle

1 x Suction Cup

2 x Replacement "+" Screws

4 x Replacement "Y" Screws
