26*26mm URUAV F405 AIO 2-4S 20A Flight Controller w/Ammeter STM32F405 ESC DShot150/300/600 for Beta9
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Introduction:
| Flight Controller | ESC |

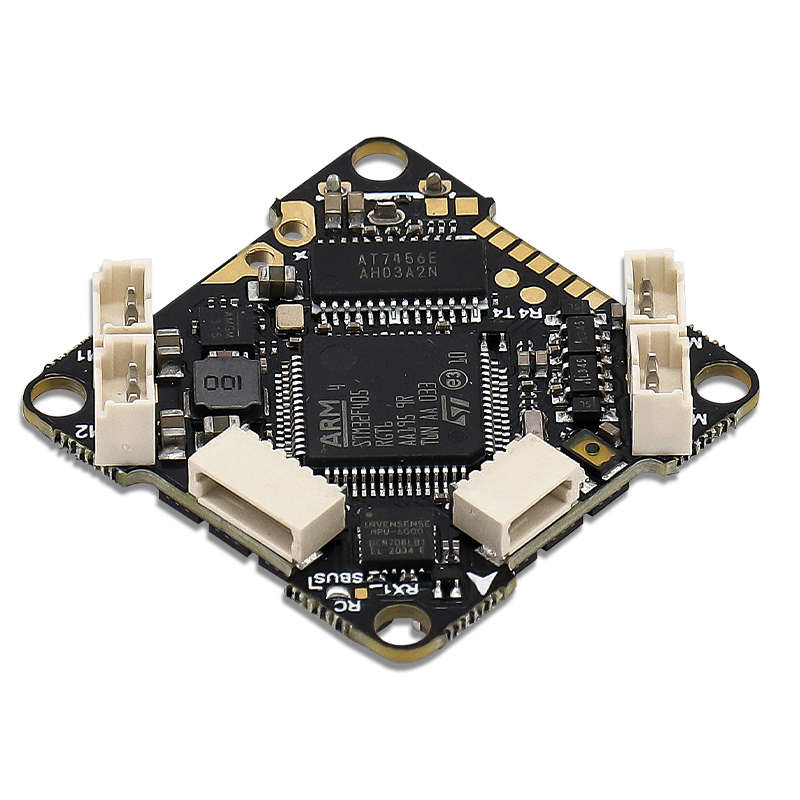

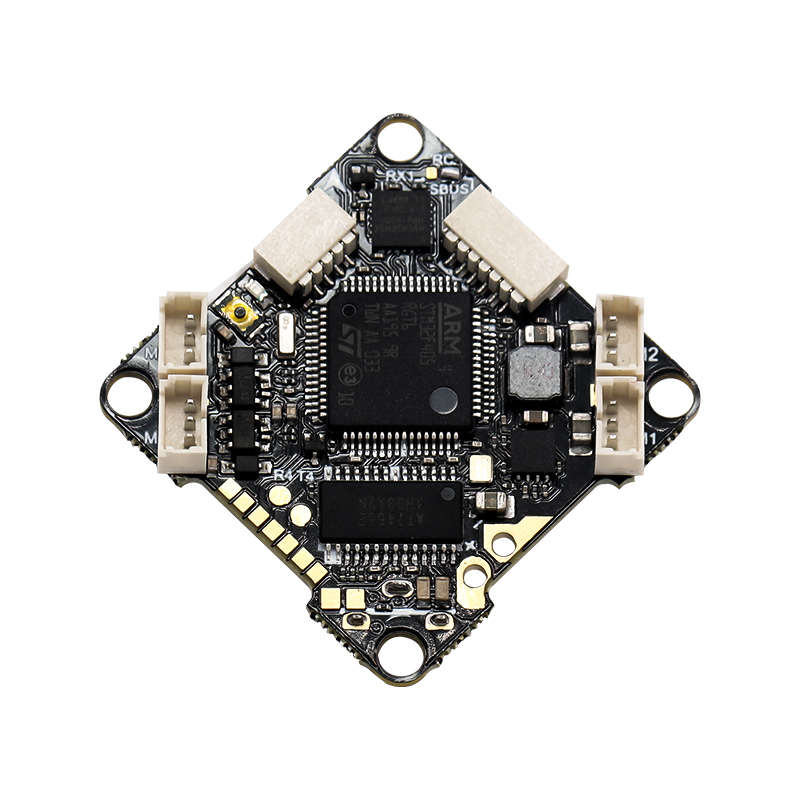

| 168Mhz STM32F405 main control chip, can run higher speed PID | Using high-performance EFM8BB21F16G microprocessor, running frequency up to 48 MHZ |
| Spi Bus MPU6000 Gyroscope, bring response time and excellent shock absorption effect | 6-layer High Tg, copper thick PCB board, greatly reduce the heat, higher efficiency |
| Onboard OSD chip, can use BetaFlight parameter adjustment software to adjust parameters | Using Blheli Open source program, you can upgrade the firmware or change the electrical adjustment parameters through the throttle signal line to support all functions of Blheli |
| UART5 + SBUS: UART1; UART1: With Receiver Socket, can plug into all kinds of receiver module | DShot150/300/600 digital throttle mode and general PWM, OneShot125, OneShot42, MultShot throttle mode |
| LED interface; Buzzer interface | |
| Analog camera, analog graphic interface (UART4)? | |
| Onboard 5V Bec, provide a cleaner image display effect for graphic transmission | |
| Reasonable layout, according to the majority of flying hand installation requirements, the function of the pad together to avoid jumper |
Description:
Brand:URUAV
Iten Name:?F405 AIO 20A Flight Controller
Mounting hole: 26*26mm?
Size: 30*30mm?

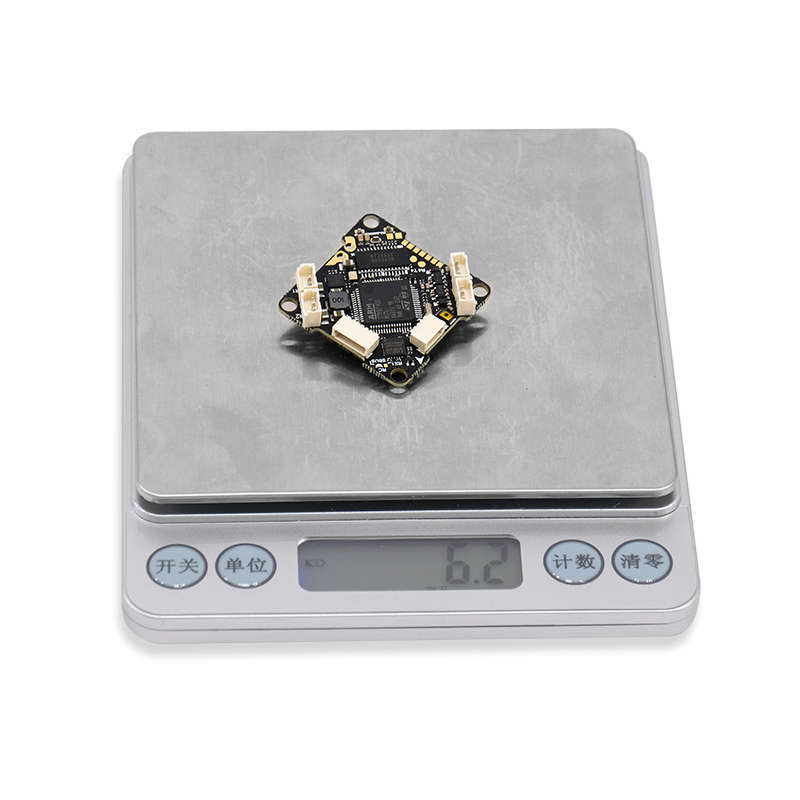

Weight: 6.2g
Flight Controller:
Firmware version: GEPR/GEPRCF405

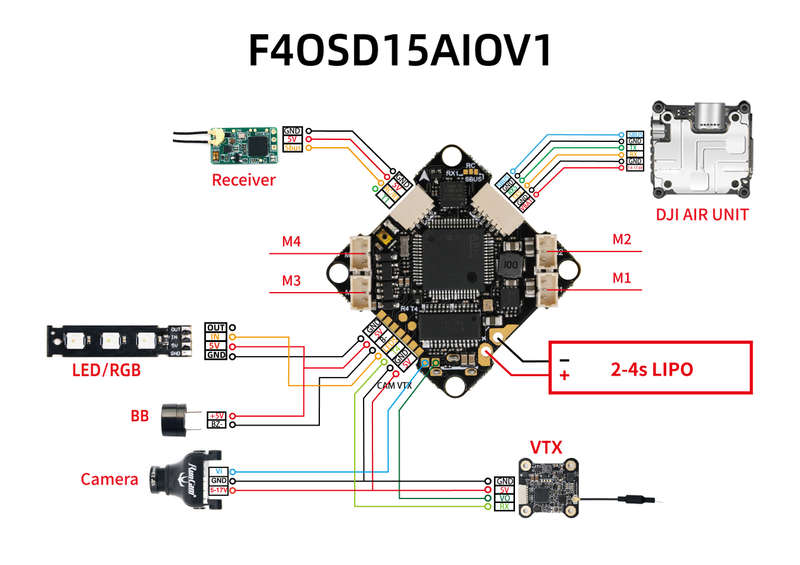

5V: 5V stabilized power supply output interface
Maximum Current 3A?
TX4: Picture Transfer Reference Pin (selected according to flight control firmware version)?
Cam: CAMERA INPUT INTERFACE?
VTX: Picture transfer interface?
LEDS: RGB Lamp Band interface?
Buzzer: Connect buzzer negative pole, positive Connection 5V?
SUBS G RX5 TX5 GND VBAT: DJI access socket?
Recommend Lipo: 2-4S Lipo
Ammeter:Yes

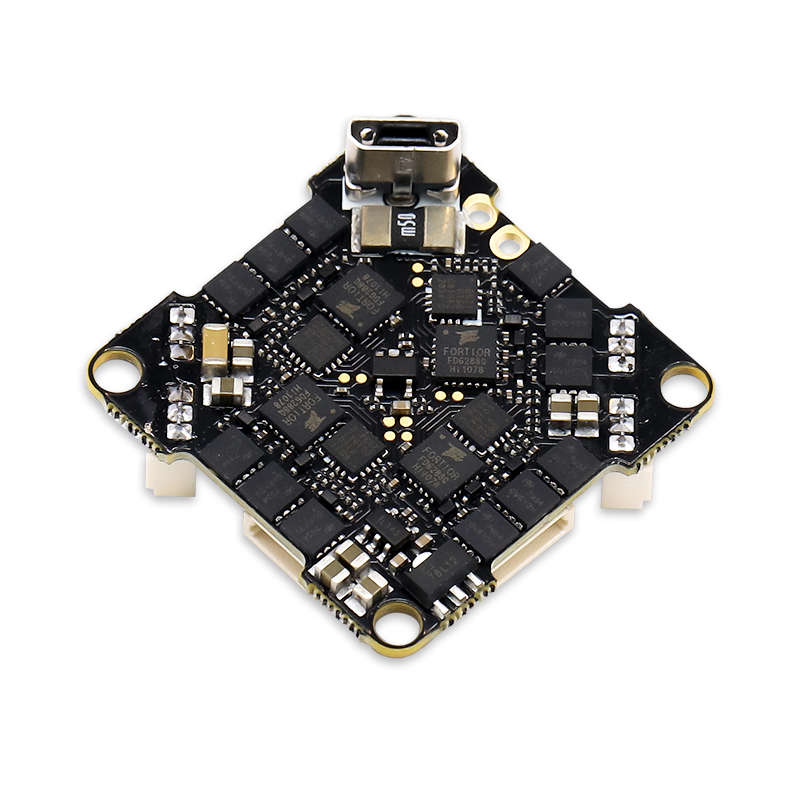

ESC:
Continuous?Current:?20A
Transient?Current?(10S)?:?22A
Cell?Number:?2-4S

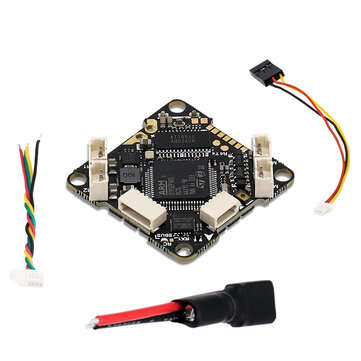

Package Included:
1*?F405?AIO?Flight?Controller
1?*?6-Pin?Connector?for?Digital?VTX
1?*?4-Pin?Connector?for?Rx
1?*?Cable?Pigtail?(XT30)
4?*?Anti-vibration?rubber?dampers
