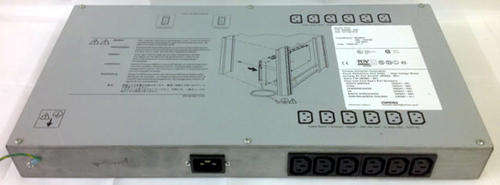

| Compaq Power Distribution Unit Specifications |
| Electrical | ||||
| Model | High Voltage 16A | High Voltage 24A | ||
| Part Number | 295363-002 | 295363-003 | ||
| UPC Code | 743172543899 | 743172900883 | ||
| AC Voltage Input | 200 to 240 | 200 to 240 | ||
| AC Voltage Output | 200 to 240 | 200 to 240 | ||
| Hertz | 50/60 | 50/60 | ||
| Current (Max) | 16A | 24A | ||
| Circuit Breaker | 2ea. 2-pole 10A | 2ea. 2-pole 10A | ||
| Operating Temperature | 32 to 140 F/ 0 to 60 C | 32 to 140 F/ 0 to 60 C | ||
| Power Cable-AWG, Length & Plug Type | #12 x 12 ft L6-20P attached power cord | #10 x 12 ft L6-30P attached power cord | # | |
| Input Receptacle | None | None | ||
| Output Receptacle | 12 ea. IEC 320 10 Amp | 12 ea. IEC 320 10 Amp | ||
| Surge Suppression Clamping Level | 275 to 320V RMS | 275 to 320V RMS | ||
| Surge Current | 50,000 amps per unit | 50,000 amps per unit | ||
| Spike Protection | 500 joules, 10 x 10,000 usec | 500 joules, 10 x 10,000 usec | ||
| Weight | 12 lbs | 12 lbs |
