2CH wireless remote control - 3 control modes

Features:

Wireless control, easy to install.

• Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, Electrically operated Doors/ Locks/ Windows/ Blinds/ Cars or Other Appliances with voltage AC110~240V or DC0~28V.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• Working distance of transmitter and receiver with external extend antenna: 2000M / 6000ft (theoretically)

Receiver:

• Model No.: S2U-DC12-ANT2
• Channel: 2 CH
• Control Modes: Toggle, Momentary, Latched
• Coding Type: Fixed code
• Coding Setting: By learning
• Power Supply (Operating Voltage): DC12V ±1V
• Working Voltage Range of Relay: AC110~240V or DC0~28V
• PCB size: 68mm x 48mm x 20mm
• Case size: 75mm x 55mm x 30mm
• Static Current: 6mA
• Relay Current: 7A/250VAC, 10A/120VAC, 10A/24VDC
• The receive distance with external extend antenna is twice of using ordinary antenna.

Transmitter:

• Model No.:CB-2
• Channel: 2 CH
• Remote Control Distance: Up to 2000m / 6000ft (theoretically)
• Encode: Fixed code by soldering
• Unit size: 135mm x 42mm x 25mm
• Power Supply: 1 x 6F22-9V battery

External extend antenna:

• Frequency Range: 300~450MHz
• Impedance: 50
• Antenna Length: 15cm
• Cable Length: 150cm
• Weight: 35g
• Anti-interference, waterproof, shielded wire set inside
• Magnetic stand design for easy install

Usage:

• Toggle: Press -> On; Press again -> Off.
• Momentary: Press and hold -> On; Release -> Off.
• Latched: Press -> On, another relay Off; Press another button -> Off.

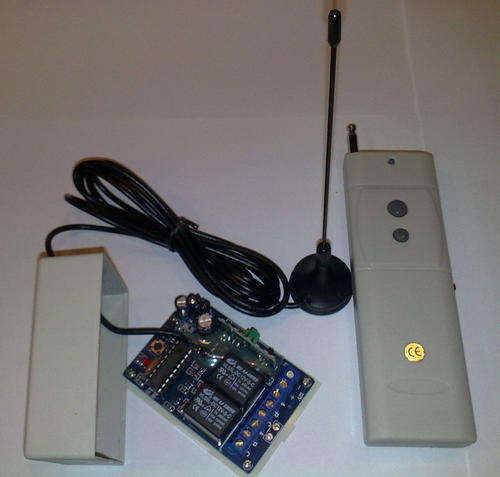

Package Includes:

• 1 x Receiver: S2U-DC12-ANT2 (2 Channels / 3 Control Modes / DC12V)
• 1 x Transmitter: CB-2
• 1 x External extend antenna
• 1 x User manual
