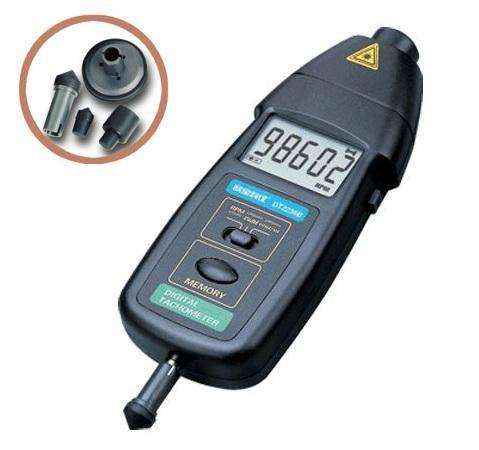

2in1 Digital Laser Photo & Contact Tachometer

This digital tachometer is a high quality instrument using non-contact (Laser / Photo) and contact method to measure the Rotational Speed (RPM) and Surface Speed with wide measuring range and high resolution. It is featured with high accuracy measurement, quick measuring time and long detecting distance up to 500 mm (20 inch) with Laser.

You can operate the meter in the following 3 modes:

• Laser Photo (non-contact): measure the Rotational Speed (RPM)
• Rotational Speed (contact): measure the Rotational Speed (RPM)
• Surface Speed (Contact): measure meter per minutes (m / min)

This tachometer is very easy to use by applying a reflective mark (included in package) on target object, then aim at the mark by Laser beam. This tachometer has wide range of applications include measuring rotating speed of machine, motors, model cars, wheels, lathe for metal or wood cutting work etc.

Features

• Large 5 digits LCD Display
• Offers 3 measurement options: Photo / Laser, Contact and Surface Speed
• Use Microcomputer (LSI circuit) and junction laser technique to combine Photo (RPM) and Contact Tachometer (RPM, m/min) into 1 meter
• Wide Measuring Range (99,999 RPM) with High Resolution
• Memory storage with Maximum, Minimum and Last Measured value
• Low battery power indication
• One push button for Contact and Photo measurement can be switched at anytime
• New surface speed sensor with flute veils to measure speed and length of wire, cable and rope conveniently

Specifications

• Display: 5 digits, 47 x 28 mm (1.85' x 1.10' inch) LCD with function annunciation
• Testing Range:
  • Photo / Laser: 2.5 ~ 99,999 RPM (rate/min)
  • Contact: 0.5 ~ 19,999 RPM (rate/min)
  • Surface Speed: 0.05 ~ 1999.9 m/min
• Resolution:
• Photo / Laser: 0.1 RPM (2.5 ~ 999.9 RPM) / 1 RPM (over 1,000 RPM)
• Contact: 0.1 RPM (0.5 ~ 999.9 RPM) / 1 RPM (over 1,000 RPM)
• Surface Speed: 0.01 m/min (0.05 ~ 99.99 m/min) / 0.1 m/min (over 100 m/min)
• Accuracy: ±(0.05 % + 1 digit)
• Sampling Time: 0.8 seconds (over 60 RPM)
• Test Range Selection: Automatic
• Memory: Maximum value, Minimum value and Last Measured value
• Detecting Distance: 50 ~ 500 mm (2 ~ 20 inch) (Laser / Photo)
• Time base: Quartz Crystal
• Circuit: Exclusive one-chip of micro-computer  LSI circuit
• DC Power: 3 x 1.5 V AA Batteries (Included)
• Dimension: approx. 220 (L) x 76 (W) x 30 (D) mm (8.66' x 2.99' x 1.18' inch)
• Weight: approx. 200 g (7.05 oz) (battery included)

One Set Included

• 1 x 2-in-1 Digital Photo & Contact Tachometer
• 3 x Reflective Tape Mark (total 600 mm)
• 1 x Contact speed measurement fitting
• 3 x Contact rotational speed measurement fitting
• 1 x Instruction Manual
• Standard Factory Package
