Features:
Premium Material: The housing is made of ABS and TPE material, with double injection molding and reinforced structure, fallproof and impact resistant, with long durability.

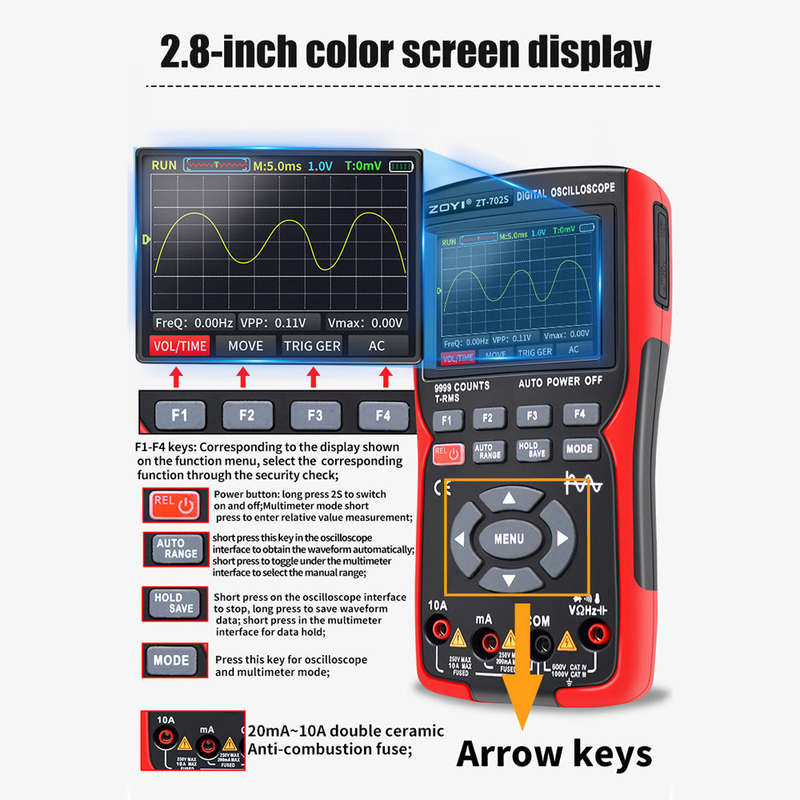

2.8inch IPS Color Display: 2.8inch full-view true color IPS display, with 320*240 resolution, large font for easy data reading, and the brightness adjustable design makes it can applicable to various measurements under complex environment.

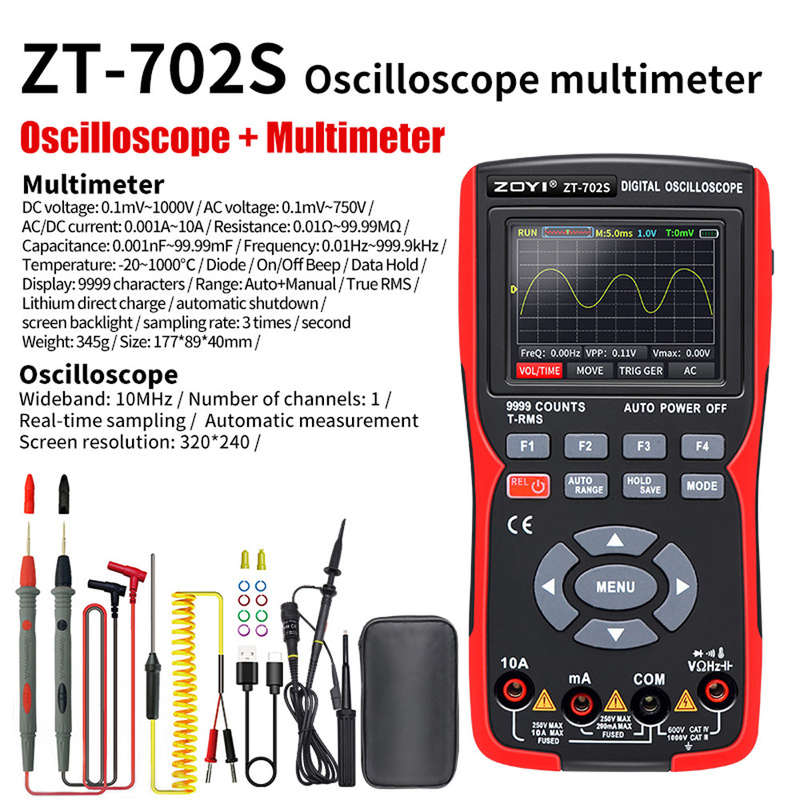

2in1 Design: Support oscilloscope and multimeter dual modes switching. The oscilloscope interface automatically obtains the measurement waveforms, and the multimeter interface switches to select the manual ranges.
Multimeter Function: Support AC/DCvoltage, AC/DCcurrent, resistance, capacitance, diode, frequency, and temperature measurement, and on-off test.
Oscilloscope Function: The oscilloscope will automatically identify the waveform type (sine or square wave) and adjust the control method so as to accurately display the waveform of the input signal.ￂﾠ
Multifunctional Design: Support full waveform measurement, with single-channel 10MHz bandwidth and 48MSa/s real time sampling rate. 3 trigger modes: automatic, normal (continuous), and single. Intelligent burn-out proof, automatic measurement manual measurement switchable, automatic shutdown, English and Chinese language adjustable, low battery warming, support computers transmission.
Automatic Measurement: Automatically identify and adjust the waveform amplitude and time base, and display the matched waveform on the screen.
Manual Measurement: Manually set the predicted waveform voltage, time base, cursor position, trigger, coupling mode, probe attenuation and other parameters; observe the waveform and read the related measurement values.
Waveform Storage and Review: The oscilloscope will automatically save the current measured waveform data in the form of pictures with running numbers saved in the memory. Connect the oscilloscope to the computers by connecting to the TYPE-C data cable, click on the USB disk, open the picture folder to access, or download the waveform to the computers in a secure location for more convenient to back up and analyze.
Automatic Shutdown: Automatic shutdown time can be selected; according to the frequency of use you can choose 15 minutes, 30 minutes, 60 minutes, 120 minutes, no limit (long on).
Specifications:
Name: Oscilloscope Multimeter
Material: ABS + TPE
Battery: 1 * built-in 2000mAh battery (not included)
Display (LCD): 9999 Counts
Ranging: Auto/Manual
Material: ABS+TPE
Update Rate: 3 Times/Second
Ture RMS: yes
Data Hold: yes
Backlight: yes
Low Battery Indication: yes
Auto Power Off: yes
DCVoltage: yes
AC Voltage: yes
DCCurrent: yes
AC Current: yes
Resistance: yes
Capacitance: yes
Frequency: yes
Temperature: yes
Diode: yes
Continuity: yes
Temperature measurement: -20￢ﾄﾃ to 1000￢ﾄﾃ/-4￢ﾄﾉ to 1832￢ﾄﾉ
Operating Temperature: 0~40￢ﾄﾃ
Operating Humidity: <75%
Storage Temperature: -20 to 60￢ﾄﾃ
Storage Humidity: ﾼﾜ80%
Item size: 177 * 89 * 40mm / 6.97 * 3.50 * 1.57in
Item weight: 345g / 0.76lb
Package size: 216 * 135 * 67mm / 8.50 * 5.31 * 2.64in
Package weight: 700g / 1.54lb
