2MHz USB PC Function Generator

New 1 was available
R1,930.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Bob Shop ID
81302260

 PCGU1000 PCGU1000 PCGU1000 PCGU1000 PCGU1000 PCGU1000

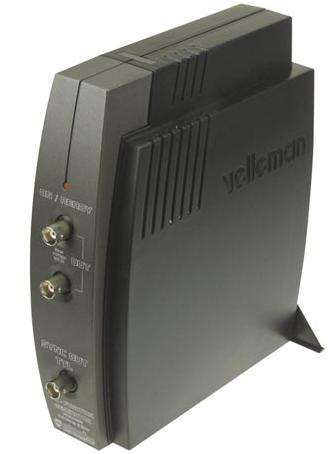

The PCGU1000 is a digital function generator which can be connected with a PC via USB.
Standard signal waves like e.g. sine, triangle and rectangle are available; other sine waves can be easily created.
The signal waves are created in the PC and produced by the function generator via DDS (Direct Digital wave Synthesis)
Frequencies up to 2MHz.
Features 2 equal outputs and a TTL Sync output.
Output voltage of 1mVtt up to 10Vtt at 600 ohms.
All outputs are galvanically separated from the PC in order to avoid measuring problems. Comes with power adapter.

Features

  • frequency range: from 0.01Hz to 2MHz
  • crystal-based stability
  • outputs are galvanically isolated from the PC
  • low sine wave distortion
  • two parallel output connectors for waveforms
  • TTL-level synchronisation output
  • stores up to 8192 of waveform points
  • standard waveforms: sine, square and triangle
  • predefined library waveforms included: noise, sweep, ...
  • you can create your own waveforms with the integrated signal wave editor
  • sweep frequency range 0.0001Hz to 25MHz
  • sweep time 1ms to 10 hours
  • noise mode bandwidth 25MHz
  • extended bode plot option together with PC scope
  • automated wave sequence generation, using file or computer RS232 input.
  • DLL available for custom software development
  • in the box:
    • USB function generator
    • getting started manual
    • software on CD
    • USB cable
    • worldwide charging adaptor

Specifications

  • amplitude range: 100mVpp to 10Vpp @ 1KHz// 600ohm load / 0V offset
  • frequency setting resolution: 0.01%
  • With internal 40 dB attenuator (output divided by 100)
  • direct digital wave synthesis (DDS), stores up to 8192 of waveform points
  • amplitude resolution: 0.4% of full scale
  • offset: from 0 to -5V or +5V max. (resolution 0.4% of full scale)
  • vertical resolution: 8 bits (0.4% of full scale)
  • sample rate: 50MHz
  • typical sine wave distortion (THD): < 0.08%
  • output impedance: 2 x 50ohm
  • power supply: standard 9V DC adapter, 600mA (included)
  • dimensions: 55 x 190 x 200mm (2,2" x 7,5" x 7,9")
  • minimum system requirements:
    • IBM compatible PC
    • Windows™ 98SE, ME, 2000, XP, Vista *
    • SVGA display card (min. 800x600)
    • mouse
    • free USB port
    • CD Rom player
  • includes:
    • USB PC function generator
    • USB cable
    • getting started manual
    • software on CD
