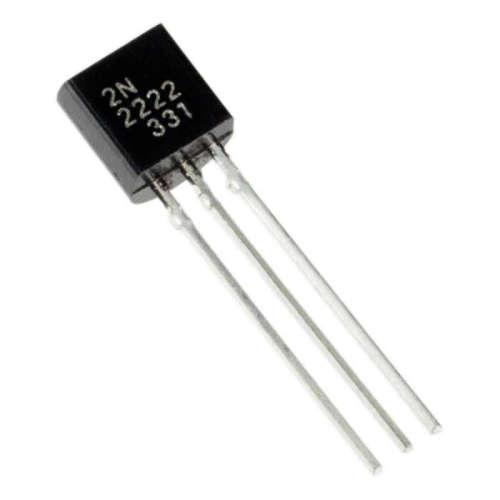

2N2222A NPN Bipolar Junction Transistor ***LOCAL STOCK***

2N2222A NPN Bipolar Junction Transistor

The 2N2222A is a common NPN bipolar junction transistor (BJT) used for general purpose low-power amplifying or switching applications. It is designed for low to medium current, low power, medium voltage, and can operate at moderately high speeds.

Material of transistor: Si

Polarity: NPN

Maximum collector power dissipation (Pc), W: 0.5

Maximum collector-base voltage |Ucb|, V: 60

Maximum collector-emitter voltage |Uce|, V: 30

Maximum emitter-base voltage |Ueb|, V: 5

Maximum collector current |Ic max|, A: 0.8

Maksimalna temperatura (Tj), °C: 175

Transition frequency (ft), MHz: 250

Collector capacitance (Cc), pF: 8

Forward current transfer ratio (hFE), min: 100

This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
